HydraMaster Boxxer 318 - Heat Exchanger Assembly Parts List; Figure 8-10. Heat Exchanger Assembly

Machine Assemblies and Parts Lists: 8-14

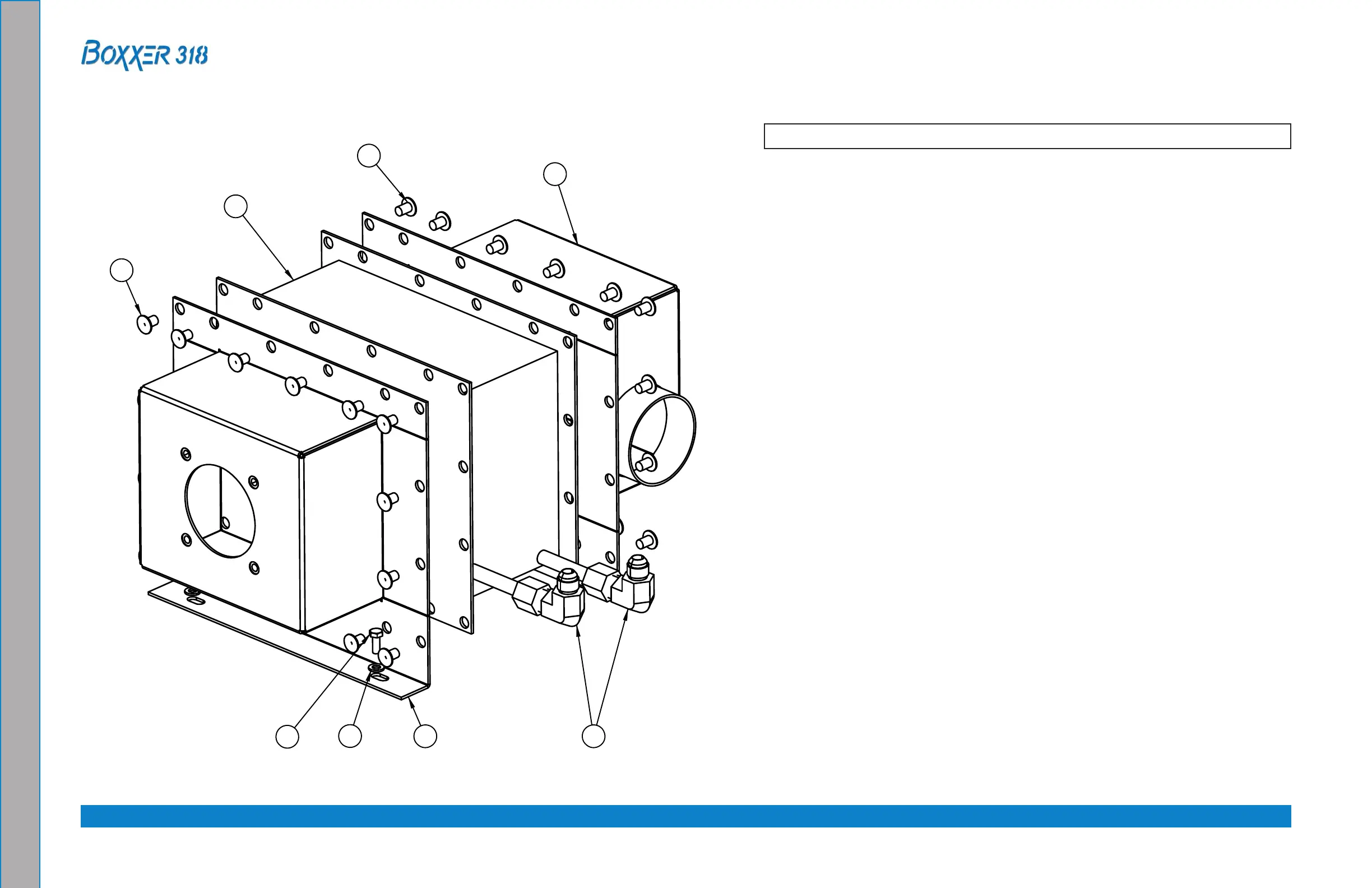

Heat Exchanger AssemblyFigure 8-10.
7012
Heat Exchanger Assembly Parts List
1 000-038-072 Heat Exchanger, 4 Row 1
2 000-013-073 Box, Outlet Plenum - Weldment 1
3 000-143-126 Screw, #10-24UNC x 0.50” Lg Hex Head 4
4 000-174-001 Washer, #10 Flat 4
5 000-013-072 Box, Inlet Plenum - Weldment 1
6 000-140-021 Rivet, 1/4” Blind x 0.50” Lg. 32
7 000-052-766 Elbow, 3/8 MNPT x 3/8 JIC 2
Item Part Number Description Qty
6
1
5
4
3
2
7
6
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
7 2 ELBOW,3/8 MNPT X 3/8 JIC BRASS 000-052-766 - - -
6 32 RIVET, 1/4" BLIND x 0.50" LG. ALUMINUM 000-140-021 - - -
5 1 BOX, INLET PLENUM - WELDMENT S. STEEL 000-013-072 7040
4 4 WASHER, #10 FLAT S.STEEL 000-174-001 - - -
3 4 SCREW, #10-24UNC x 0.50" LG. S. STEEL 000-143-126 - - -
2 1 BOX, OUTLET PLENUM - WELDMENT S. STEEL 000-013-073 7043
1 1 HEAT EXCHANGER, 4 ROW VARIOUS 000-038-072 - - -
NOTES:
1. REFERENCE BOM P/N 610-006-001.
- - -- - -
D
C
B
A
B
C
D
123
45
6
7
8
8 7 6 5
4
3 2
1
E
F
E
F
A
ASSEMBLY, HEAT EXCHANGER
-
REV
7012SEE NOTES
01/14/2008
01/14/2008
01/14/2008
USED ONNEXT ASSY
APPLICATION CODE:
BOXXER 318
125
DIMENSIONS ARE IN INCHES
PART NUMBER
- - -
B.R.T.
L.O.L.
BREAK ALL SHARP EDGES 0.005-.015
ANGULAR= 1°
SIZE
UNLESS OTHERWISE NOTED
.XXX= .010
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
DRAWING NUMBER
SHEET 1 OF 1
SCALE: 1:2
APPVD
CHECKED
DRAWN
C
11015 47th Avenue West,
FINISH
B.R.T.
TOLERANCES
.X= .1
.XX= .03
MACHINE
7011
