HydraMaster Boxxer 318 - Dura-Flow APO 90° Assembly Parts List; Figure 8-24. Dura-Flow APO 90° Assembly

8-33: Machine Assemblies and Parts Lists

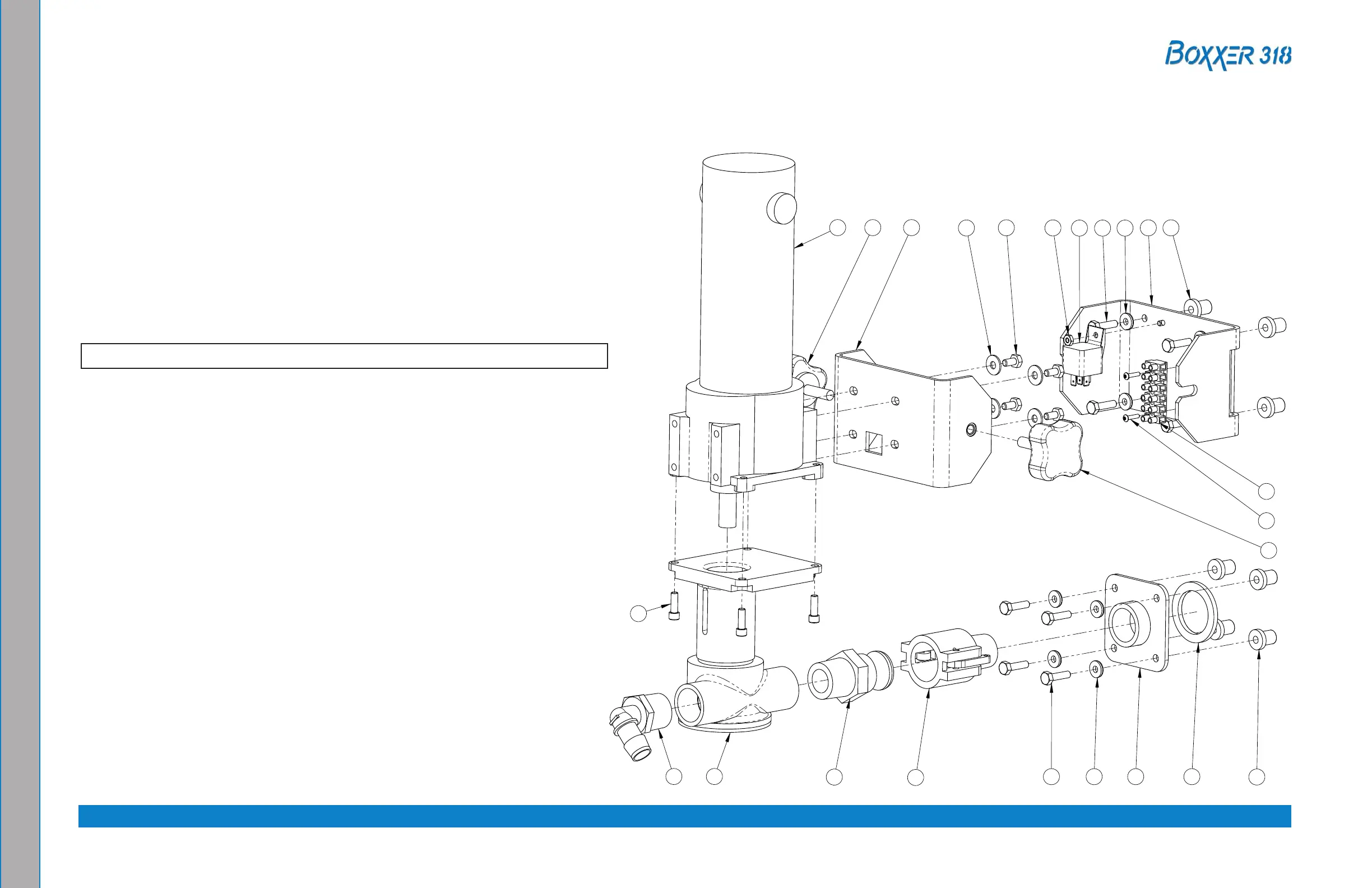

Dura-Flow APO 90° AssemblyFigure 8-24.
6313 Rev. A
6
7 9
11
2
11
14
16
158
8
17
18
20
12
13
10
1 2 3
9
5
4
19
NOTES:
1. REFERENCE BOM P/N 000-079-099.
A
LTR DATE
REVISIONS
APPVDCODE BY CHKDREVISION
B.R.T.B.R.T.L.O.L.3/24/2008LRIPITEM 19 WAS 052-131.A
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
20 4 SCREW, 1/4"-28UNF x 0.75" LG. SOCKET HEAD S. STEEL 000-143-566 - - -
19 1 INSERT, 1" NPT x 3/4" ELBOW NYLON 000-052-757 - - -
18 1 ASSEMBLY, APO PUMP - JABSCO VARIOUS 000-111-169 6244
17 1 FITTING, 1" NPT CAM LOCK - BANJO 100F PLASTIC 000-052-723 - - -
16 1 FITTING, 1" NPT CAM LOCK - BANJO 100B PLASTIC 000-052-724 - - -
15 1 FITTING, APO BULKHEAD ALUMINUM 000-052-725 5683
14 1 GASKET, APO BULKHEAD NEOPRENE 000-057-192 5684
13 2 SCREW, #6-32UNC x 5/8" LG. SOCKET HEAD STEEL 000-143-532 - - -
12 1 BLOCK, 6 POST TERMINAL PLASTIC 000-012-011 - - -
11 8 NUT, 1/4"-20UNC NEOPRENE WELLNUT NEOPRENE 000-094-113 - - -
10 1 BRACKET, TANK MOUNTED ON APO SUPPORT ALUMINUM 000-015-890 5675
9 8 WASHER, 1/4" RUBBER BACKED S. STEEL 000-174-060 - - -
8 8 SCREW, 1/4"-20UNC x 1.00" LG. HEX HEAD S. STEEL 000-143-002 - - -
7 1 SWITCH, RELAY VARIOUS 000-157-022 - - -
6 1 NUT, #10-24UNC HEX S. STEEL 000-094-027 - - -
5 4
SCREW, 1/4"-20UNC x 0.50" LG. HEX HEAD SELF-
TAPPING
STEEL 000-143-074 - - -
4 4 WASHER, 1/4" FLAT STEEL 000-174-002 - - -
3 1 BRACKET, APO CLAMP ALUMINUM 000-015-891 5659
2 2 KNOB, HANDLE - RDM VARIOUS 000-061-131 - - -
1 1 MOTOR, BISON 438 SERIES VARIOUS 000-091-042 - - -
APPLICATION
- - - - - -
- - - - - -
- - - - - -
- - - - - -
- - -
- - - - - -
- - - - - -
- - -
- - -
- - - - - -
- - - - - -
- - - - - -
7246 BXR 318 -70URT
NEXT ASSY USED ON
NEXT ASSY USED ON
L.O.L.
B.R.T.
03/20/2008
03/20/2008
03/20/2008
SEE NOTES
REV
ASSEMBLY, DURA-FLOW APO 90°
6313
A
B.R.T.
- - -
DURA-FLOW APO- - -
6526
D
C
B
A
A
B
C
D
1
2
3
4
APPLICATION
6
5
4
3
2
1
E
F
E
5
6
7
8
F
CODE:
PART NUMBER
DIMENSIONS ARE IN INCHES
8
7
MACHINE
Mukilteo, Washington 98275
D
SIZE
ANGULAR= 1°
BREAK ALL SHARP EDGES 0.005-.015
FINISH
125
DRAWN
CHECKED
APPVD
SCALE: 1:2
SHEET 1 OF 1
DRAWING NUMBER
PROPRIETARY INFORMATION
11015 47th Avenue West,
.XXX= .010
TOLERANCES
.X= .1
.XX= .03
UNLESS OTHERWISE NOTED
BXR 318 -50URT
Dura-Flow APO 90° Assembly Parts List
1 000-091-042 Motor, Bison 438 Series 1
2 000-061-131 Knob, Handle 2
3 000-015-891 Bracket, APO Clamp 1
4 000-174-002 Washer, 1/4” Flat 4
5 000-143-074 Screw, 1/4”-20UNC x 0.50” Lg. Hex Head Self-Tapping 4
6 000-094-027 Nut, #10-24UNC Hex 1
7 000-157-022 Switch, Relay 1
8 000-143-002 Screw, 1/4”-20UNC x 1.00” Lg. Hex Head 8
9 000-174-060 Washer, 1/4” Rubber Backed 8
10 000-015-890 Bracket, Tank Mounted on APO Support 1
11 000-094-113 Nut, 1/4”-20UNC Neoprene Wellnut 8
12 000-012-011 Block, 6 Post Terminal 1
13 000-143-532 Screw, #6-32UNC x 5/8” Lg. Socket Head 2
14 000-057-192 Gasket, APO Bulkhead 1
15 000-052-725 Fitting, APO Bulkhead 1
16 000-052-724 Fitting, 1” NPT Cam Lock - Banjo 100B 1
17 000-052-723 Fitting, 1” NPT Cam Lock - Banjo 100F 1
18 000-111-169 Assembly, APO Pump - Jabsco 1
19 000-052-757 Insert, 1” NPT x 3/4” Elbow 1
20 000-143-566 Screw, 1/4”-28UNF x 0.75” Lg. Socket Head 4
Item Part Number Description Qty
