HydraMaster Boxxer 318 - Chemical Pump Assembly Parts List; Figure 8-9. Chemical Pump Assembly

8-13: Machine Assemblies and Parts Lists
APPLICATION
NEXT ASSY
MAXX 450D/470D
APPVD
CHKD
DRAWN
MACHINE
FINISH
125
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP EDGES
TOLERANCES
.X= ± .1
.XX= ± .03
.XXX= ± .010
ANGULAR= ±1°
®
Corporation
11015 47th Avenue West, Mukilteo, Washington 98275
ASSEMBLY, CHEMICAL PUMP
L.O.L.
W.B.
W.B.
02/08/2000
02/08/2000
02/08/2000
C-4354
C-4730
SIZE
C
PART NUMBER
000-111-035
SCALE:
FULL P CODE:
NPD 99009
DRAWING NUMBER
4416
REV
B
SHEET:
1 OF 1
USED ON
BP JAVELIN
REVISIONS
LTR
REVISION
P CODE DATE BY
CHKD
APPVD
10 2 O-RING, CHEM. PUMP VALVE VITON-PARKER 2-1 RUBBER 000-097-054 - - -
9 6 SOC. HD. MACH. SCR., 5/16"-24UNF x 1.50" LG. S. STEEL 000-143-152 - - -
8 2 VALVE, CHECK, - LAST STEP CHEMICAL INJECTI VARIOIUS 000-169-155
7 2 O-RING, CHECK VALVE PLUG - CHEMICAL PUMP RUBBER 000-097-056 - - -
6 1 O-RING, CHEMICAL PUMP MIDPLATE AN SIZE -22 RUBBER 000-097-055 - - -
5 1 DIAPHRAGM, CHEMICAL PUMP RUBBER 000-046-010 B-4413
4 1 MID PLATE, CHEMICAL PUMP BRASS 000-105-071 D-4279
3 1 BODY, CHEMICAL PUMP BRASS 000-111-030 D-4242
2 1 COVER, CHEMICAL PUMP BRASS 000-064-015 D-4238
1 2 PLUG, CHECK VALVE - CHEMICAL PUMP BRASS 000-106-110 B-4283
Item N
Qt
Description
Material
Part Numbe
Dwg....
1
7
9
6
5
7
1
OUTLET
INLET
3
4
2
8
8
10
10
DEL ITEMS 2 & 9; ADDED NOTES;
A - - -
L.O.L.
A
A
NOTES:
1. APPLY O-RING GREASE OR EQUIVELENT TO ITEMS 5-7 & 10 PRIOR TO INSTALLATION,
A
ADDED ITEM #10 (097-054)
B
08/15/2000
W.B. W.B.
M.A.
B

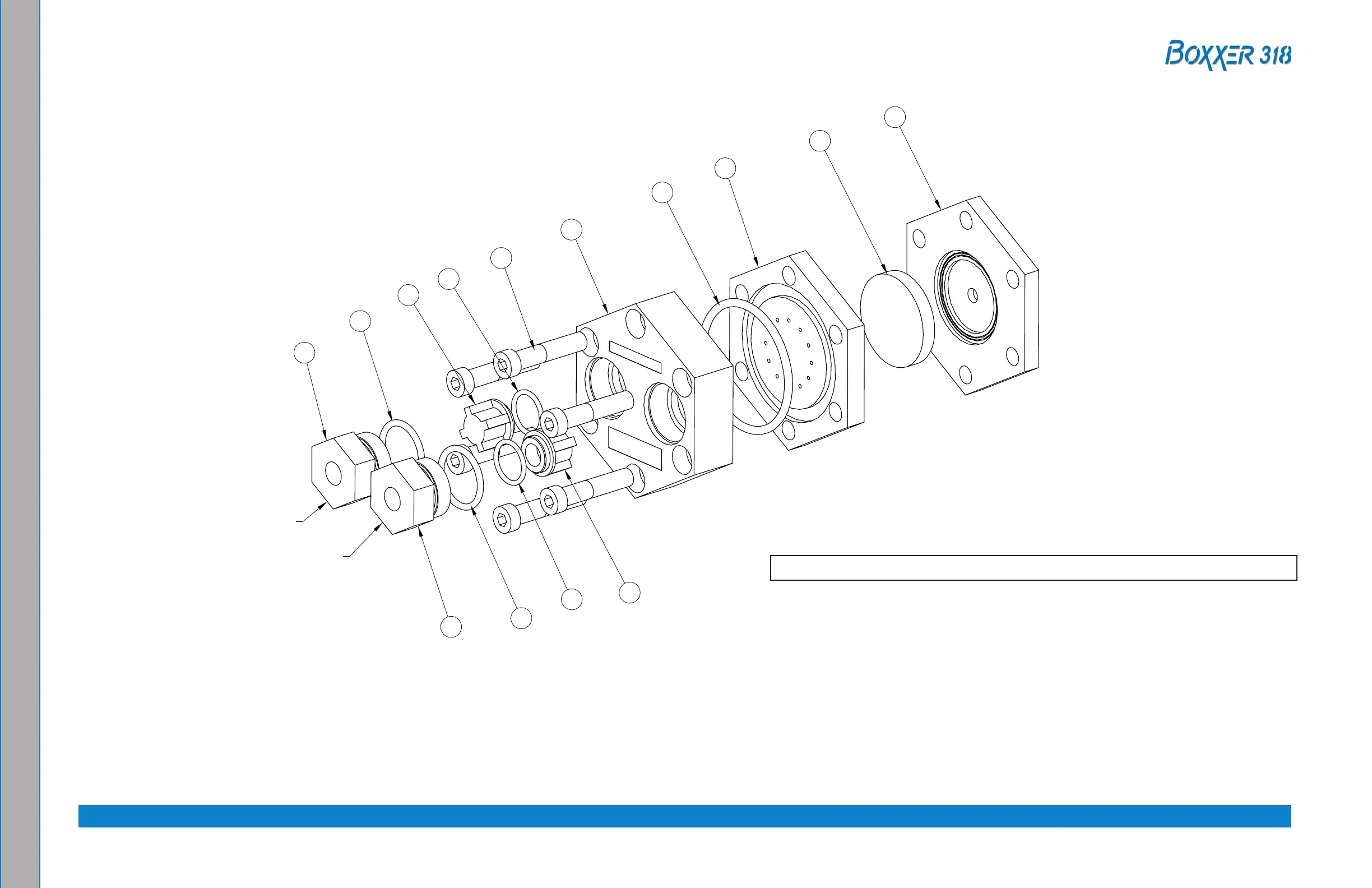

Chemical Pump AssemblyFigure 8-9.
4416 Rev. B
Chemical Pump Assembly Parts List
1 000-106-110 Plug, Check Valve - Chemical Pump 2
2 000-064-015 Cover, Chemical Pump 1
3 000-111-030 Body, Chemical Pump 1
4 000-105-071 Mid Plate, Chemical Pump 1
5 000-046-010 Diaphragm, Chemical Pump 1
6 000-097-055 O-Ring, Chemical Pump Midplate AN Size -227 Viton 1
7 000-097-056 O-Ring, Check Valve Plug - Chemical Pump 2
8 000-169-155 Valve, Check - Last Step Chemical Injection 2
9 000-143-152 Screw, 5/16”-24UNF x 1.50” Lg. Socket Head 6
10 000-097-054 O-Ring, Chem. Pump Valve Viton-Parker 2-114 2
Item Part Number Description Qty
