18 18
21
18
18
18
6
7
9
10
11
13
8
6
19
1
12
8
19
4
14
20
22
4
16
15
17
17
5
3
3
2
18
B
NOTES:
REFERENCE BOM P/N 610-012-001.
1.
A
A
22 6
SCREW, #8 x 1/2" LG. PAN HEAD
S. STEEL
000-143-314
- - -
21 1
COVER, 6"
PLASTIC
000-041-005
- - -
20 1
SWITCH, WITH PROTECTOR
VARIOUS
000-157-0801
- - -
19 4
NUT, 1"-14UNS BRASS
UNS#36000
000-094-097
7342
18 1
VALVE, FLOAT, WATER BOX
VARIOUS
000-169-218
- - -
17 3
WASHER, 3/8" FLAT
S. STEEL
000-174-032
- - -
16 1
CLAMP,SIZE 4 MINI HOSE
S. STEEL
000-033-003
- - -
15 1
HOSE,3/8"CLR W/BRAID
VARIOUS
000-068-326
- - -
14 1
BULKHEAD, 3/8" FPT x 3/8" FPT
BRASS
000-052-660
- - -
13 1
ELBOW, 3/8" NPT STREET
BRASS
000-052-086
- - -
12 1
INSERT, #26 (1/8" NPT x 3/8" BARB)
BRASS
000-052-099
- - -
11 1
VALVE, 165 F THERMAL
VARIOUS
000-169-027
- - -
10 1
TEE, 3/8" NPT MALE STREET
BRASS
000-052-023
- - -
9 1
TEE,3/8" MALE BRANCH
BRASS
000-052-447
- - -
8 2
INSERT, #68 (3/8" NPT x 1/2" BARB)
BRASS
000-052-105
- - -
7 1
NIPPLE, 3/8" NPT x 1/4" M SAE
BRASS
000-052-662
- - -
6 2
WASHER, 1.5" O.D. x 1.073" I.D. x 0.075" THK.
S.STEEL
000-174-063
- - -
5 1
INSERT, 3/4" BARB X STR
BRASS
000-052-661
- - -
4 2
O-RING, 1/2" BULK HEAD
BUNA-N
000-097-041
- - -
3 3
SCREW, 3/8"-16UNC x 3/4" LG. HEX HEAD
S. STEEL
000-143-017-1
- - -
2 1
TEE, 1/4" PLASTIC
PLASTIC
000-052-156
- - -
1 1
TANK, POLY WATER BOX - MODIFIED
POLYETHYLENE
000-159-001
7077
ITEM NO.
QTY.
DESCRIPTION
MATERIAL
PART NO. DWG. NO.
REVISIONS
LTR
REVISION
CODE
DATE
BY
CHKD
APPVD
A
DEL ITEM 4 FLOAT, WATER BOX ASSY & ASSOC.
ITEMS. ADD ITEM 18. ITEM 19 WAS 000-094-097,
DWG. NO. - - -, QTY. 5. ITEM 6 WAS QTY. 3.
1463 4/22/2009
R.D.M.
E.K.J. E.K.J.
B
ITEM 1 WAS PART NO. SEE NOTES. DELETE NOTE
2.
1463 4/29/2009
R.D.M.
E.K.J. E.K.J.
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
DRAWN
CHECKED
APPVD
SCALE: 1:2
SHEET 1 OF 1
DRAWING NUMBER
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR= 1°
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
CODE:
APPLICATION
NEXT ASSY
USED ON
B.R.T.
L.O.L.
01/14/2008
01/14/2008
01/14/2008
SEE NOTES
REV

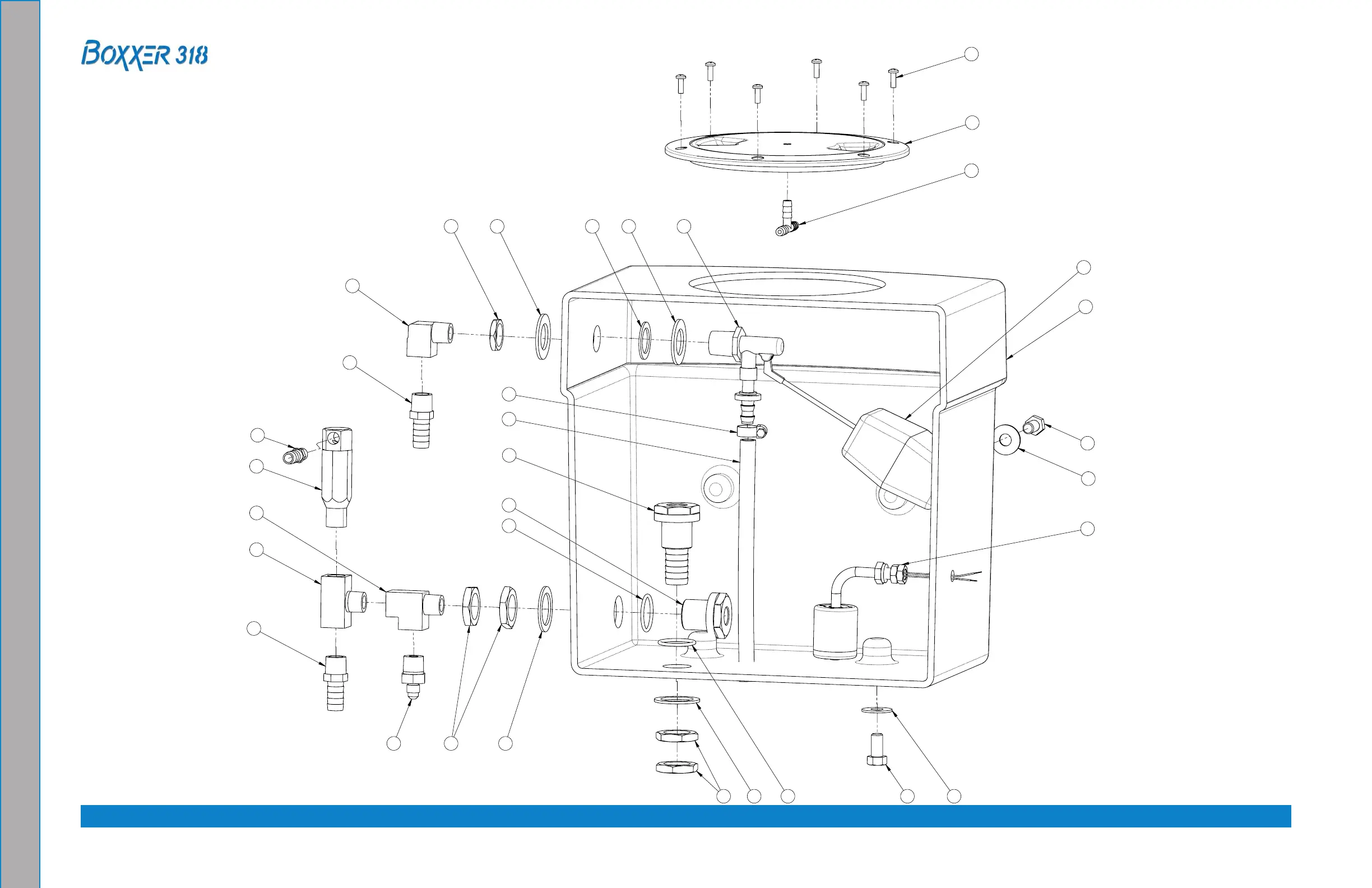

ASSEMBLY, WATER BOX
7015
B
B.R.T.
- - -
BOXXER 318
7011
- - - - - -
