HydraMaster Boxxer 318 - Figure 8-14. Dash Assembly - Back

8-19: Machine Assemblies and Parts Lists

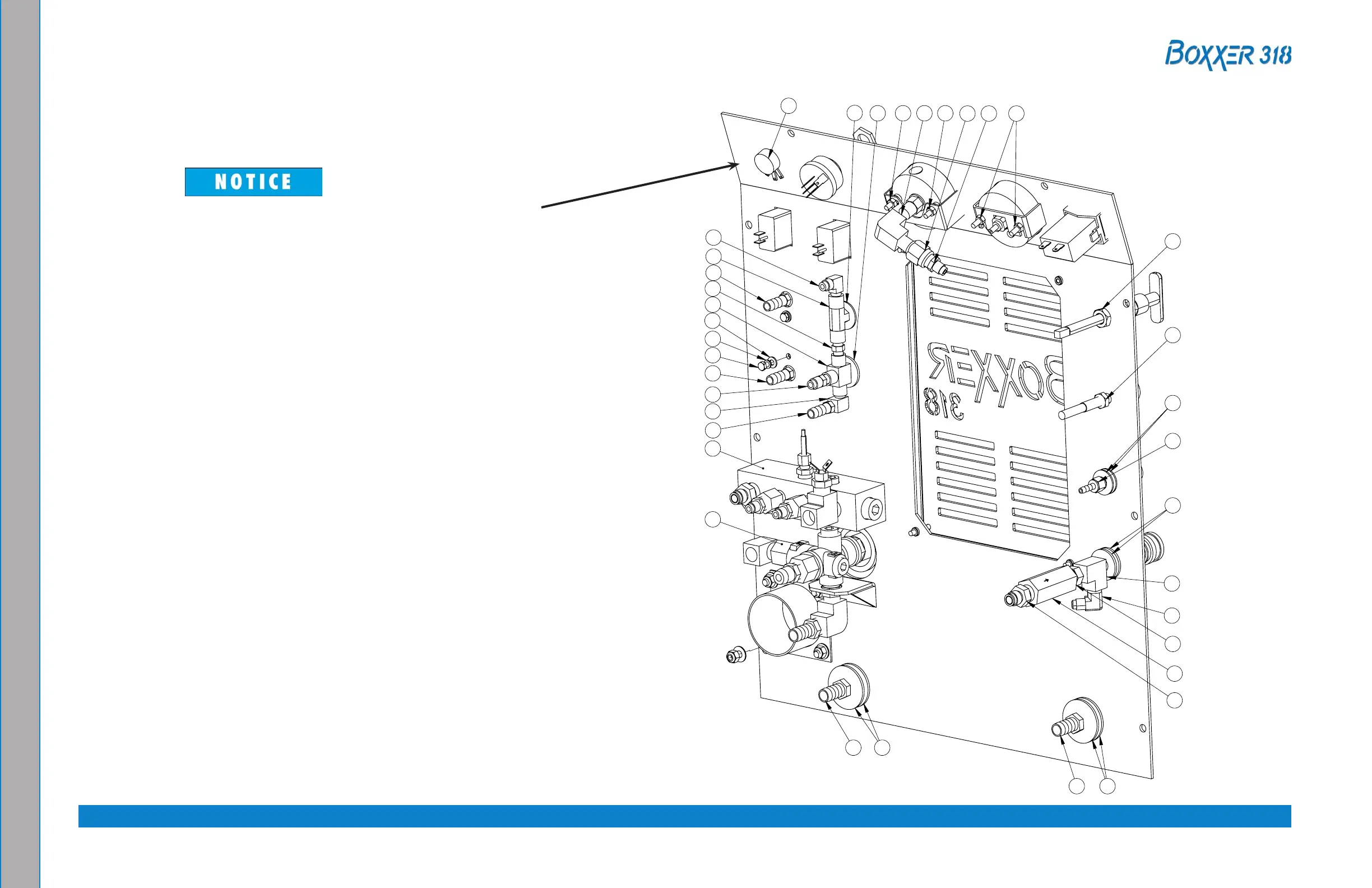

Figure 8-14. Dash Assembly - Back
7018 Rev. C
25
24
23
63
43
26
58
31
54
39
48
36
45
15
7
6
17
4
30
53
5
48
38
34
33
27
3
49
28
32
22
12
8
2
62
64
61
1
10
50
42
57
41
11
35 18
29 29
30
55
13
50
9
19
5116
5116
60
59
21
46
44
20
14
14
14
37
52
48
4
29
56
40
B
B
C
47
C
NOTES:
REFERENCE BOM P/N 610-018-001. 1.
ITEMS 10, 18, 26 & 30 ARE PART OF LABEL SET P/N 000-081-039. 2.
ITEM 53 IS PART OF P/N 610-009-001. 3.
ITEM 54 IS PART OF P/N 610-008-001. 4.
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
B ADDED ITEM 19; ITEM 24 WAS QTY. 6; LRIP 04/02/2008 L.O.L. B.R.T. B.R.T.
C
ITEM 27 WAS 074-018; ITEM 47 WAS 169-
186; RENUMBERED BOM.
ECR #919
ECR #1504
12/14/2009 L.O.L. C.I.R. ECRB
64 1 LABEL, DASH WARNING VINYL SEE NOTES 7074
63 1 LABEL, TEMERATURE VINYL SEE NOTES 7072
62 1 LABEL, RIGHT DASH VINYL SEE NOTES 7071
61 1 LABEL, LEFT DASH VINYL SEE NOTES 7070
60 1
ASSEMBLY, BYPASS VALVE VARIOUS SEE NOTES 7078
59 1 ASSEMBLY, HI PSI MANIFOLD VARIOUS SEE NOTES 7019
58 1 WASHER,1/2" ID x 3/4" OD x 0.010" THK S. STEEL 000-174-062 - - -
57 1 WASHER, 21/32" I.D. x 27/32" O.D. NYLON NYLON 000-174-058 - - -
56 1 WASHER, 7/16" SAE FLAT STEEL 000-174-038 - - -
55 2 WASHER, 3/8" FLAT S. STEEL 000-174-032 - - -
54 1 WASHER, 5/8" ID x 7/8" OD x 0.010" THK S. STEEL 000-174-030 - - -
53 1 WASHER, 7/16" LOCK STEEL 000-174-022 - - -
52 2 WASHER, #10 LOCK S.STEEL 000-174-014 - - -
51 4 WASHER, 5/8" FLAT STEEL 000-174-008 - - -
50 3 WASHER, 1/2" FLAT STEEL 000-174-007 - - -
49 4 WASHER, 1/4" FLAT S. STEEL 000-174-003 - - -
48 8 WASHER, #10 S/S FLAT S. STEEL 000-174-001 - - -
47 1 VALVE, CHECK 80 PSI - LAST STEP CHEMICAL BRASS 000-169-219 - - -
46 1 VALVE, CHEMICAL METERING S. STEEL 000-169-160 - - -
45 1 VALVE, 3/8" NPT FULL PORT BALL BRASS 000-169-064 - - -
44 1 VALVE, 3-WAY BALL O-RING STYLE BRASS 000-169-0171 - - -
43 2 SWITCH, 20 AMP ROCKER VARIOUS 000-157-040 - - -
42 1 SWITCH, IGNITION - B & S VARIOUS 000-157-017 - - -
41 2 SPRING, 1/4" BELLEVILLE WASHER 301 S. STEEL 000-155-053 - - -
40 1 THERMOSTAT, POTENTIOMETER VARIOUS 000-149-560 - - -
39 2 SCREW, 1/4"-28UNF x 0.50" LG. HEX HEAD S. STEEL 000-143-542 - - -
38 4 SCREW, #10-24UNC x 1.25" HEX HEAD S. STEEL 000-143-171 - - -
37 2 SCREW, #10-24UNC x 3/8" LG. HEX HEAD S. STEEL 000-143-166 - - -
36 2 SCREW, #10-24UNC x 0.50" LG. HEX HEAD S. STEEL 000-143-126 - - -
35 1 REGULATOR, HI PSI SNUBBER BRASS 000-135-052 - - -
34 1 TRIMLOK, 3/8" x 1/8" RUBBER RUBBER 000-131-131 - - -
33 1 PANEL, GRILL ALUMINUM 000-100-170 7021
32 1 PANEL, DASH STEEL 000-100-169 7017
31 1 NUT, 7/16"-24UNF - 2 WAY METERING VALVE S. STEEL 000-094-098 - - -
30 2 NUT, 7/16"-20UNF HEX JAM S. STEEL 000-094-092 - - -
29 4 NUT, 5MM NYLOCK S. STEEL 000-094-070 - - -
28 4 NUT, 1/4"-20UNC NYLOCK VARIOUS 000-094-009 - - -
27 1 METER, RECTANGULAR HOUR w/o BEZEL PLASIC 000-074-170 - - -
26 1 METER, CHEMICAL FLOW RAW VARIOUS 000-074-030 - - -
25 1 GAUGE, 30" HG. VACUUM - HYDRAMASTER VARIOUS 000-074-017 - - -
24 1 GAUGE, PRESSURE 0 -1500 PSI VARIOUS 000-074-007 - - -
23 1 KNOB, TEMPERATURE ADJUSTMENT VARIOUS 000-061-056 - - -
22 1 ELBOW, 1/4" SAE x 1/4" NPT BRASS 000-052-532 - - -
21 1 ELBOW, 1/8" NPT x 1/4" SAE BRASS 000-052-531 - - -
20 1 NIPPLE, 1/4" SAE x 1/8" NPT BRASS 000-052-530 - - -
19 1 NIPPLE, 3/8" M JIC x 3/8" NPT BRASS 000-052-528 - - -
18 1 NIPPLE, 1/4" SAE x 1/4" NPT BRASS 000-052-527 - - -
17 1 CUP, GRAVITY FEED OIL BLOWER LUBE PORT S.STEEL 000-052-272 - - -
16 2 INSERT, #68 (3/8" NPT x 1/2" BARB) BRASS 000-052-105 - - -
15 1 INSERT, #66 (3/8" NPT x 3/8" BARB) BRASS 000-052-104 - - -
14 3 INSERT, #26 (1/8" NPT x 3/8" BARB) BRASS 000-052-099 - - -
13 1 INSERT, #F23 (1/8" FPT x 3/16" BARB) BRASS 000-052-096 - - -
12 1 TEE, 1/4" NPT BRANCH M-F-F BRASS 000-052-090 - - -
11 1 ELBOW, 1/4" FPT x FPT BRASS 000-052-088 - - -
10 1 ELBOW, 1/8" NPT STREET BRASS 000-052-084 - - -
9 1 NIPPLE, 3/8" NPT x 1/4" NPT HEX BRASS 000-052-073 - - -
8 1 NIPPLE, 1/8" NPT HEX BRASS 000-052-069 - - -
7 1 QUICK CONNECT, 660 3/8" BRASS W/ EPDM O-RING BRASS 000-052-052 - - -
6 1 QUICK CONNECT, 440 FEMALE w/ EPDM O-RING BRASS 000-052-051 - - -
5 1 CABLE, THROTTLE LOCKING VARIOUS 000-025-020 - - -
4 1 CABLE, CHOKE WITH DETENT VARIOUS 000-025-003 - - -
3 1 ADAPTER, 2.5" EXHAUST TURNDOWN S. STEEL 000-001-148 7081
2 1 KNOB, 3-WAY BALL VALVE (PART OF 000-169-0171) VARIOUS - - - - - -
1 1 CHEMICAL METERING VALVE - KNOB ONLY VARIOUS - - - - - -
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
DRAWN
CHECKED
APPVD
SCALE: 1:2
SHEET 1 OF 1
DRAWING NUMBER
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR= 1°
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
CODE:
APPLICATION
NEXT ASSY USED ON
B.R.T.
L.O.L.
01/15/2008
01/15/2008
01/15/2008
SEE NOTES
REV
ASSEMBLY, DASH
7018
C
B.R.T.
- - -
BOXXER 318 7011
- - - - - -
To order a spare thermostat (P/N 000-149-560), specify
P/N 000-149-561.
