Machine Assemblies and Parts Lists: 8-48

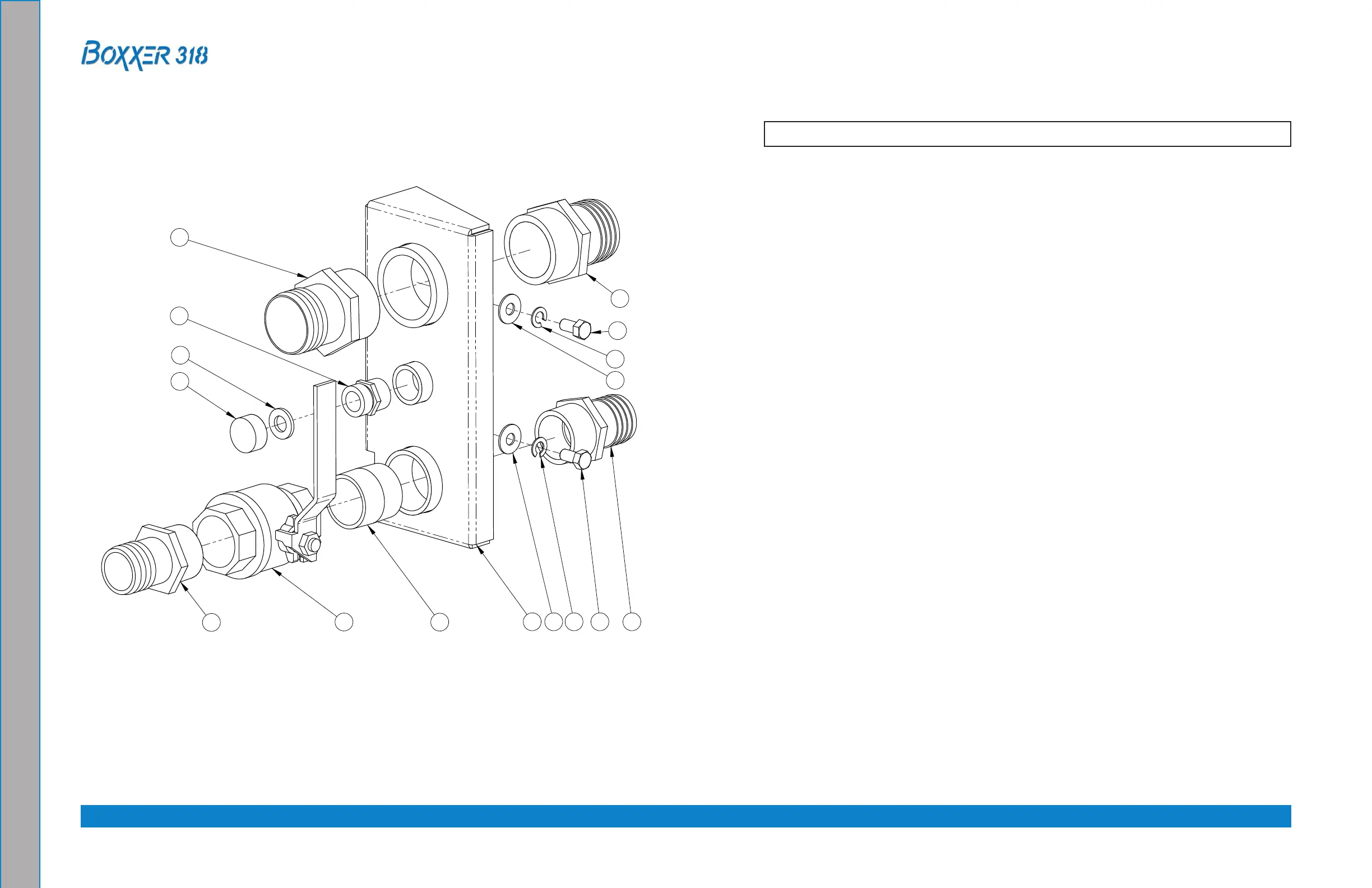

Dump and Vacuum Bracket AssemblyFigure 8-34.
7088
NOTES:
1. REFERENCE BOM P/N 000-159-118 TANK 85 RMT ASSEMBLY.
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
11 1 NIPPLE, 3/4" NPT x 3/4" MALE GARDEN HOSE BRASS 000-052-281 - - -
10 1 GASKET, GARDEN HOSE RUBBER 000-057-055 - - -
9 1 CAP, GARDEN HOSE BRASS 000-027-014 - - -
8 1 VALVE, 1-1/2" FULL PORT BALL BRASS 000-169-022 - - -
7 1 NIPPLE, 1-1/2" NPT CLOSE STEEL 000-052-182 - - -
6 1 BRACKET, DUMP AND VACUUM MOUNTING VARIOUS 000-015-884 5666
5 2 INSERT, 1-1/2" NPT x 1-1/2" BARB (GREY) PVC 000-052-226 - - -
4 2 WASHER, 3/8" FLAT S. STEEL 000-174-032 - - -
3 2 WASHER, 3/8" LOCK S. STEEL 000-174-057 - - -
2 2 SCREW, 3/8"-16UNC x 3/4" LG. HEX HEAD S. STEEL 000-143-017-1 - - -
1 2 INSERT, 2" NPT x 2" BARB (GREY) PVC 000-052-221 - - -
3
56
7
8
5
9
10
11
1
1
234
2
4
BOXXER 3187087
D
C
B
A
B
C
D
123
45
6
7
8
8 7 6
5
4
3
2
1
E
F
E
F
A
ASSEMBLY, DUMP & VACUUM BRACKET
-
REV
7088SEE NOTES
03/20/2008
03/20/2008
03/20/2008
USED ON
NEXT ASSY
APPLICATION CODE:
50 URT w/ 85 RMT
125
DIMENSIONS ARE IN INCHES
PART NUMBER
- - -
B.R.T.
B.R.T.
BREAK ALL SHARP EDGES 0.005-.015
ANGULAR= 1°
SIZE
UNLESS OTHERWISE NOTED
.XXX= .010
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
DRAWING NUMBER
SHEET 1 OF 1
SCALE: 1:2
APPVD
CHECKED
DRAWN
C
11015 47th Avenue West,
FINISH
L.O.L.
TOLERANCES
.X= .1
.XX= .03
MACHINE
7087
Dump and Vacuum Assembly Parts List
1 000-052-221 Insert, 2” NPT x 2” Barb (Grey) 2
2 000-143-017-1 Screw, 3/8”-16UNC x 3/4” Lg. Hex Head 2
3 000-174-057 Washer, 3/8” Lock 2
4 000-174-032 Washer, 3/8” Flat 2
5 000-052-226 Insert, 1-1/2” NPT x 1-1/2” Barb (Grey) 2
6 000-015-884 Bracket, Dump and Vacuum Mounting 1
7 000-052-182 Nipple, 1-1/2” NPT Close 1
8 000-169-022 Valve, 1-1/2” Full Port Ball 1
9 000-027-014 Cap, Garden Hose 1
10 000-057-055 Gasket, Garden Hose 1
11 000-052-281 Nipple, 3/4” NPT x 3/4” Male Garden Hose 1
Item Part Number Description Qty
