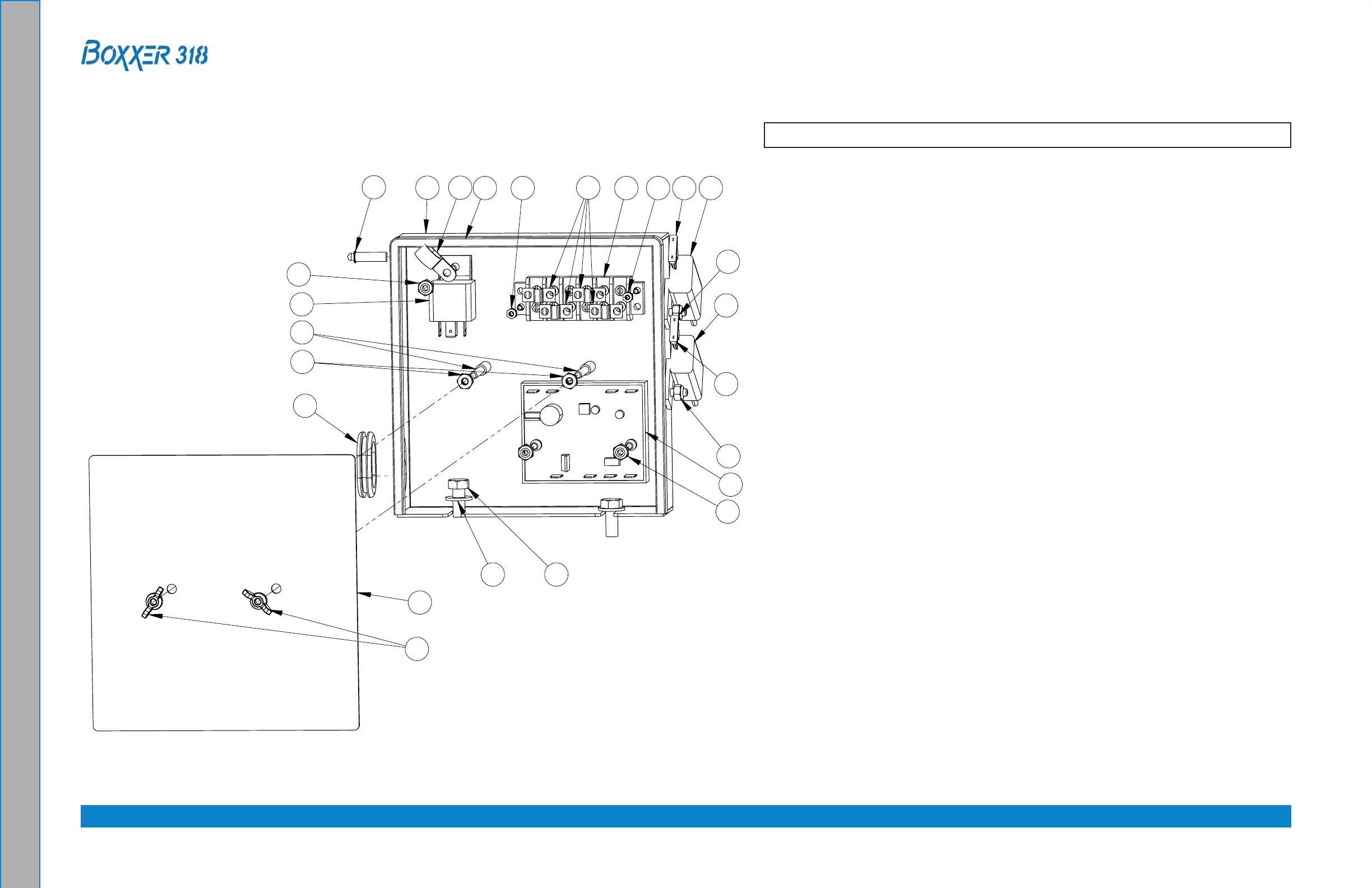

HydraMaster Boxxer 318 - Electrical Panel Assembly Parts List; Figure 8-19. Electrical Panel Assembly

Machine Assemblies and Parts Lists: 8-26
Electrical Panel AssemblyFigure 8-19.
7020 Rev. C
Electrical Panel Assembly Parts List
Item Part Number Description Qty
1
12 6 13 3
8
3
8
8
4
5
13
10
14 15
2
8
16 18
7
11
9
19
19
17
NOTES:
1. REFERENCE BOM P/N 610-011-001
B
C
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
B ADDED ITEM 19; RENUMBERED BOM; LRIP 2/12/2008 L.O.L. B.R.T. B.R.T.
C ITEM 17 WAS 060-002.
ECR #1427
10/22/2008 L.O.L. C.I.R. ECRB
19 2 FUSE, 25 AMP VARIOUOS 000-056-010 - - -
18 4 CONNECTOR, "JUMPER" TERMINAL BLOCK STEEL 000-037-011 - - -
17 1 GROMMET, 1.00" I.D. x 1.50" O.D. RUBBER 000-060-014 - - -
16 1 CLAMP, 1/2" NYLON HOSE NYLON 000-033-022 - - -
15 2 SCREW, 5/16"-18UNC x 3/4" Lg. S. STEEL 000-143-012 - - -
14 2 WASHER, 5/16" FLAT S. STEEL 000-174-049 - - -
13 2 NUT, #6-32UNC NYLOCK 304 000-094-063 - - -
12 1 TRIMLOK, 3/8" x 1/8" VARIOUS 000-131-131 - - -
11 2 NUT, #10-32UNF WING S.STEEL 000-094-108 - - -
10 2 NUT, #10-32UNF - NYLOCK S. STEEL 000-094-058 - - -
9 2 STUD, #10-32UNF x 2" LG. s/s S. STEEL 000-156-030 - - -
8 5 NUT, #10-24UNC NYLOCK s/s S. STEEL 000-094-034 - - -
7 1 COVER, ELECTRICAL PANEL STEEL 000-041-460 7056
6 1 BLOCK, 6 POST TERMINAL VARIOUS 000-012-002 - - -
5 1 LIGHT, GREEN LED INDICATOR MINI VARIOUS 000-084-010 - - -
4 1 SWITCH, RELAY VARIOUS 000-157-022 - - -
3 2 FUSE HOLDER, IN-LINE - WEATHERPROOF VARIOUS 000-056-006 - - -
2 1 CONTROLLER, TEMP SINGLE ANALOG INPUT - RTD VARIOUS 000-074-125 - - -
1 1 PANEL, ELECTRICAL - 7" X 7.25" STEEL 000-100-171 7052
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
A
ASSEMBLY, ELECTRICAL PANEL
C
REV
7020 SEE NOTES
01/16/2008
01/16/2008
01/16/2008
USED ON NEXT ASSY
APPLICATION CODE:
PART NUMBER
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP EDGES 0.005-.015
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR= 1°
SIZE
C
11015 47th Avenue West,
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
DRAWING NUMBER
SHEET 1 OF 1
SCALE: 1:2
APPVD
CHECKED
DRAWN
125
MACHINE
FINISH
B.R.T.
L.O.L.
B.R.T.
- - -
BOXXER 318
- - -- - -
7011
1 000-100-171 Panel, Electrical - 7" X 7.25" 1
2 000-074-125 Controller, Temp Single Analog Input - RTD 1
3 000-056-006 Fuse Holder, In-Line - Weatherproof 2
4 000-157-022 Switch, Relay 1
5 000-084-010 Light, Green Led Indicator Mini 1
6 000-012-002 Block, 6 Post Terminal 1
7 000-041-460 Cover, Electrical Panel 1
8 000-094-034 Nut, #10-24UNC Nylock 5
9 000-156-030 Stud, #10-32UNF X 2" Lg. S/S 2
10 000-094-058 Nut, #10-32UNF - Nylock 2
11 000-094-108 Nut, #10-32UNF Wing 2
12 000-131-131 Trimlok, 3/8" X 1/8" 1
13 000-094-063 Nut, #6-32UNC Nylock 2
14 000-174-049 Washer, 5/16" Flat 2
15 000-143-012 Screw, 5/16"-18UNC X 3/4" Lg. 2
16 000-033-022 Clamp, 1/2" Nylon Hose 1
17 000-060-014 Grommet, 1.00" I.D. X 1.50" O.D. 1
18 000-037-011 Connector, "Jumper" Terminal Block 4
19 000-056-010 Fuse, 25 Amp 2
