HydraMaster Boxxer 318 - Figure 8-6. Engine Assembly

8-9: Machine Assemblies and Parts Lists

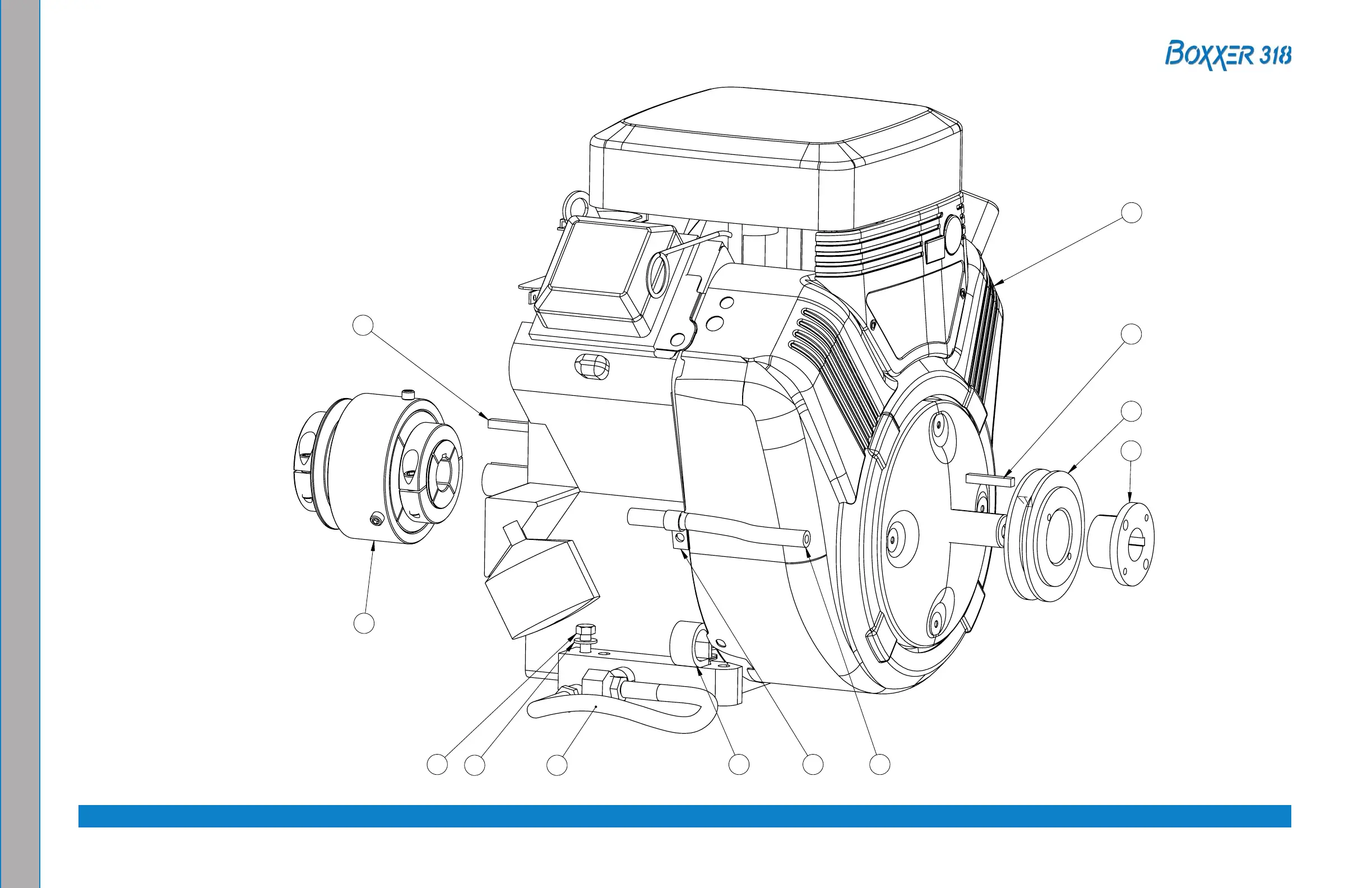

Engine AssemblyFigure 8-6.
7013 Rev. A
5
8
9
1
11
10
4
8
6
3 2 7
A
NOTES:
1. REFERENCE BOM P/N 610-004-001.
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
A
ITEM 10 WAS 143-015; RENUMBERED
BOM.
ECR #1465
12/14/2009 L.O.L. C.I.R. ECRB
11 4 WASHER, 5/16" FLAT S. STEEL 000-174-049 - - -
10 4
SCREW, 5/16"-18UNC x 1.75" LG. HEX HEAD GRD. 8
Z/P
STEEL 000-143-375 - - -
9 1 PULLEY, AK47-H STEEL 000-109-040 - - -
8 2 KEY, 1/4" x 1-1/2" LG. 8630 STEEL 000-077-010 - - -
7 1 HOSE, 1/4" FUEL RUBBER 000-068-660 - - -
6 1 HOSE, DRAIN VARIOUS 000-068-219 - - -
5 1 ENGINE, B&S 18HP VARIOUS 000-047-028 - - -
4 1 COUPLER, 40 SERIES VARIOUS 000-039-054 - - -
3 1 CLAMP, 1" CUSHION LOOP w/ 7/16 MOUNT HOLE VARIOUS 000-033-117 - - -
2 1 CLAMP, 1/2 WIDE X 1/2 TUBE S. STEEL 000-033-046 - - -
1 1 BUSHING, H X 1" STEEL 000-020-025 - - -
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
A
ASSEMBLY, ENGINE
A
REV
7013 SEE NOTES
01/11/2008
01/11/2008
01/11/2008
USED ON NEXT ASSY
APPLICATION CODE:
PART NUMBER
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP EDGES 0.005-.015
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR= 1°
SIZE
C
11015 47th Avenue West,
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
DRAWING NUMBER
SHEET 1 OF 1
SCALE: 1:2
APPVD
CHECKED
DRAWN
125
MACHINE
FINISH
B.R.T.
L.O.L.
B.R.T.
- - -
BOXXER 318
- - -- - -
7011
