8-25: Machine Assemblies and Parts Lists

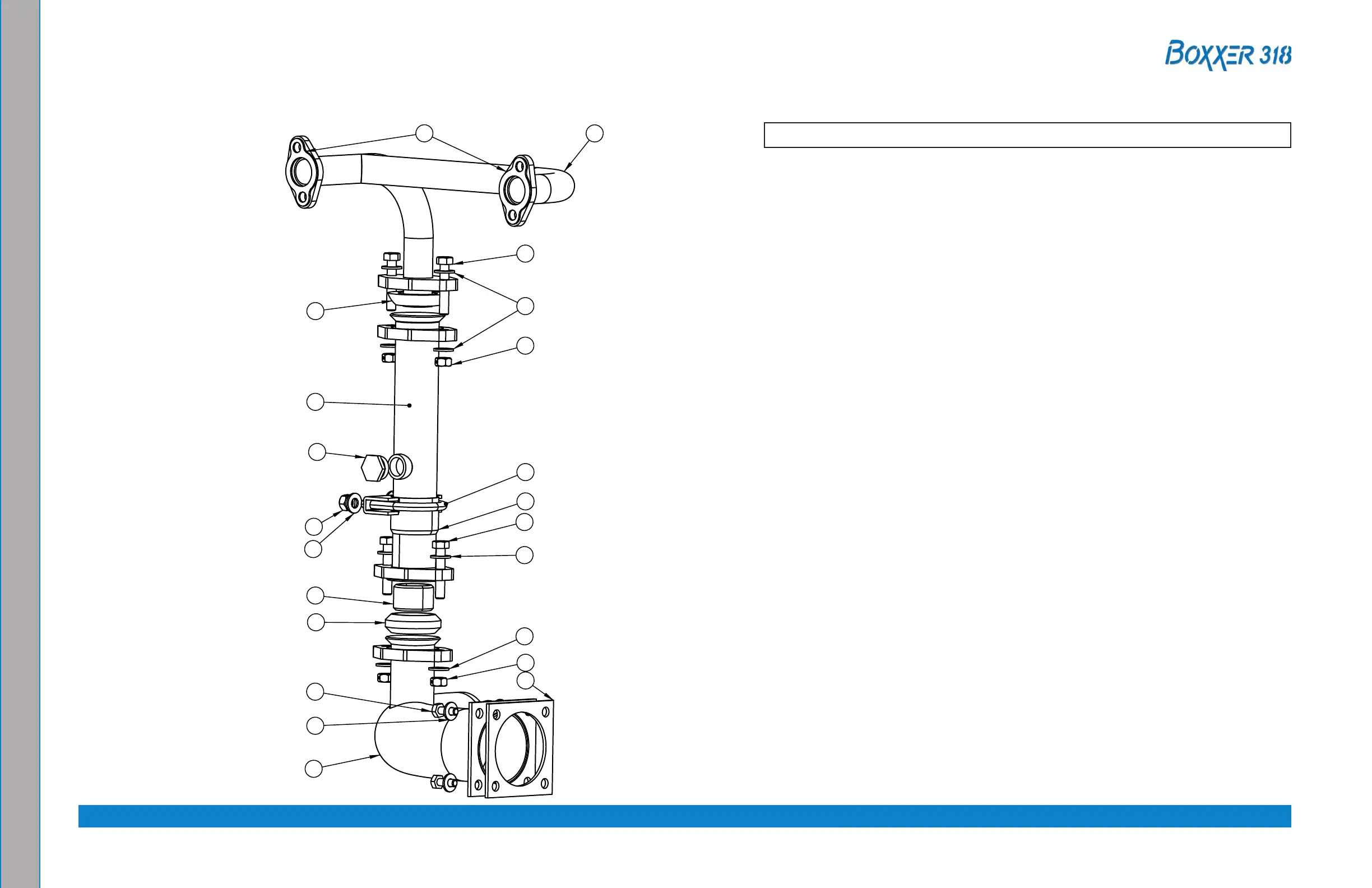

Exhaust AssemblyFigure 8-18.
7079
L.O.L.
BOXXER 318
B.R.T.
- - -
- - -
D
C
B
A
B
C
D
123
45
6
7
8
8 7 6 5
4
3 2
1
E
F
E
REV
FINISH
ASSEMBLY, EXHAUST
A
SEE NOTES
F
-7079
01/16/2008
01/16/2008
USED ON
DRAWING NUMBER
APPVD
CHECKED
NEXT ASSY
- - -
B.R.T.
PROPRIETARY INFORMATION
DRAWN
125
DIMENSIONS ARE IN INCHES
APPLICATION CODE:
PART NUMBER
UNLESS OTHERWISE NOTED
.XXX= .010
Mukilteo, Washington 98275
01/16/2008
11015 47th Avenue West,
SHEET 1 OF 1
SCALE: 1:2
BREAK ALL SHARP EDGES 0.005-.015
ANGULAR= 1°
SIZE
C
TOLERANCES
.X= .1
.XX= .03
MACHINE
7011
APPVDCHKDBYDATECODEREVISIONLTR
REVISIONS
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
16 1 GASKET, HALF DONUT VARIOUS 000-057-212 - - -
15 1 TUBE, 1.5" OD EXHAUST W/ PORT S. STEEL 000-125-096 7045
14 1 PLUG, M18 x 1.5 S. STEEL 000-106-120 6237
13 1 TUBE,1-3/8" OD x 1/8" WALL x 7/8" LG. STEEL 000-125-128 4634
12 1 GASKET, EXHAUST DONUT 1.50" VARIOUS 000-057-177 - - -
11 4 SCREW, 1/4"-20UNC x 0.75" LG. HEX HEAD S. STEEL 000-143-001 - - -
10 4 WASHER, 1/4" FLAT S. STEEL 000-174-003 - - -
9 1 TUBE, LOWER EXHAUST WELDMENT S. STEEL 000-125-227 7065
8 1 GASKET, Ø2.5" x 3.5" BCD REMFLEX 000-057-209 7069
7 1 ADAPTER, EXHAUST FLANGE to 1.5" F SLIP S. STEEL 000-001-116 5612
6 1 CLAMP, 1-1/2" EXHAUST S. STEEL 000-033-068 - - -
5 6 NUT, 5/16"-18UNC HEX 2 WAY LOCKING STEEL 000-094-081 - - -
4 10 WASHER, 5/16" FLAT S. STEEL 000-174-049 - - -
3 4 SCREW, 5/16"-18UNC x 1.75" LG. HEX HEAD S. STEEL 000-143-124 - - -
2 1 TUBE, UPPER EXHAUST WELDMENT S. STEEL 000-125-228 7060
1 2 GASKET, EXHAUST MANIFOLD - VANGUARD VARIOUS 000-057-010 - - -
7
1. REFERENCE BOM P/N 610-013-001
NOTES:
2
3
6
5
16
5
1
4
3
4
13
12
4
5
8
11
15
10
9
4
14
Exhaust Assembly Parts List
1 000-057-010 Gasket, Exhaust Manifold - Vanguard 2
2 000-125-228 Tube, Upper Exhaust Weldment 1
3 000-143-124 Screw, 5/16”-18UNC x 1.75” Lg. Hex Head 4
4 000-174-049 Washer, 5/16” Flat 10
5 000-094-081 Nut, 5/16”-18UNC Hex 2 Way Locking 6
6 000-033-068 Clamp, 1-1/2” Exhaust 1
7 000-001-116 Adapter, Exhaust Flange To 1.5” F Slip 1
8 000-057-209 Gasket, Ø2.5” x 3.5” BCD 1
9 000-125-227 Tube, Lower Exhaust Weldment 1
10 000-174-003 Washer, 1/4” Flat 4
11 000-143-001 Screw, 1/4”-20UNC x 0.75” Lg. Hex Head 4
12 000-057-177 Gasket, Exhaust Donut 1.50” 1
13 000-125-128 Tube,1-3/8” O.D. x 1/8” Wall x 7/8” Lg. 1
14 000-106-120 Plug, M18 x 1.5 1
15 000-125-096 Tube, 1.5” O.D. Exhaust w/ Port 1
16 000-057-212 Gasket, Half Donut 1
Item Part Number Description Qty
To Next Page
