HydraMaster Boxxer 318 - By-Pass Valve Assembly Parts List; Figure 8-16. By-Pass Valve Assembly

8-23: Machine Assemblies and Parts Lists
By-Pass Valve Assembly Parts List

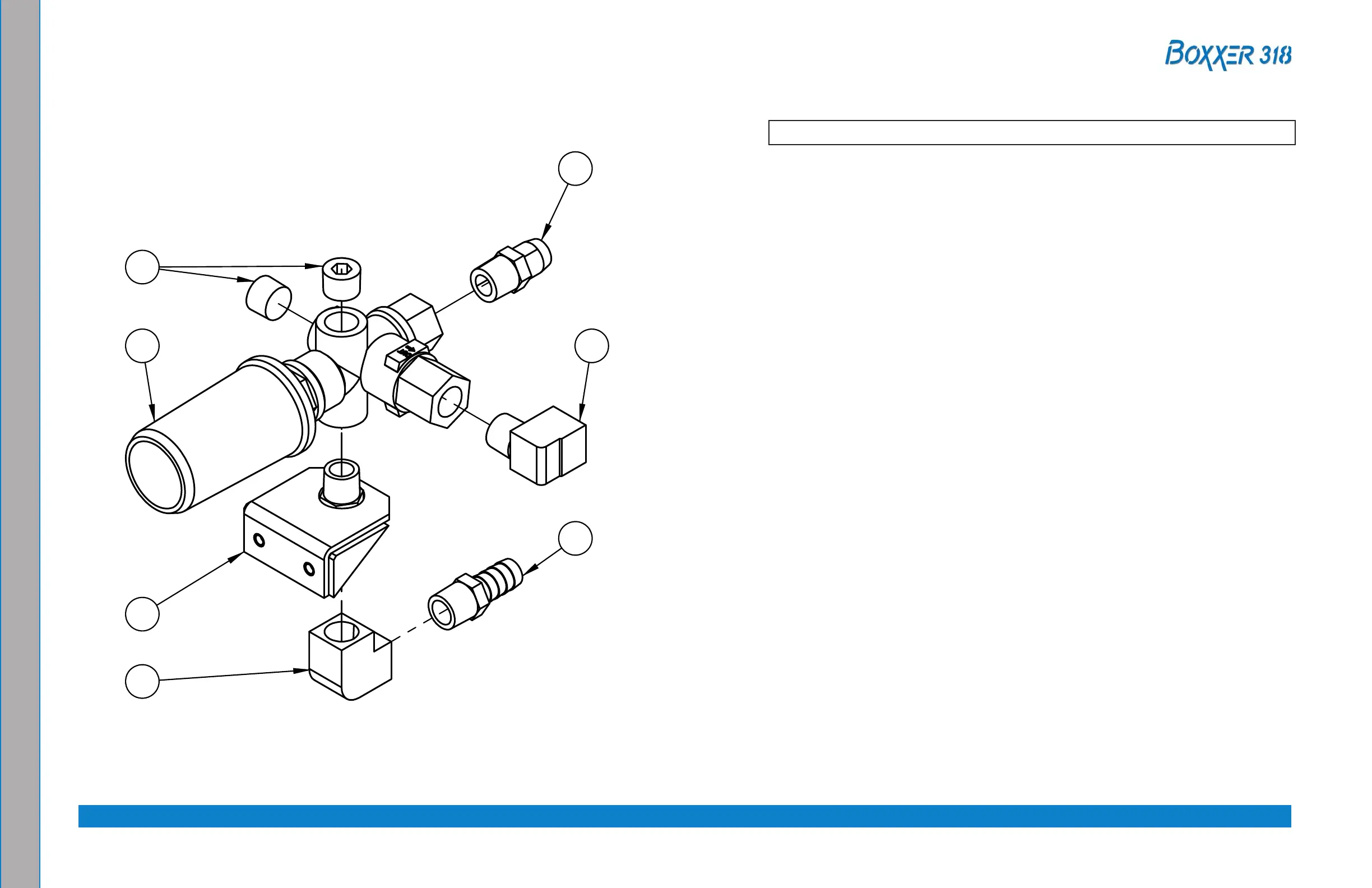

By-Pass Valve AssemblyFigure 8-16.
7078
1 000-169-188 Valve, PA Press Reg Mod 1
2 000-106-008 Plug, 3/8” NPT Allen Head 2
3 000-052-128 Nipple, 3/8” NPT x 3/8” M Propane 1
4 000-052-086 Elbow, 3/8” NPT Street 1
5 000-052-105 Insert, #68 (3/8” NPT x 1/2” Barb) 1
6 000-052-142 Elbow, 3/8” F x F Brass 1
7 000-015-515 Bracket, By-pass Valve Mounting 1
Item Part Number Description Qty
FINISH
125
L.O.L.
B.R.T.
BOXXER 318
- - -
7018
- - -
D
C
B
A
B
C
D
1
2
3
4
8
7
6
5
4
3
2
1
DRAWN
CHECKED
APPVD
SCALE: 1:2
SHEET 1 OF 1
UNLESS OTHERWISE NOTED
01/14/2008
1/14/2008
SEE NOTES
8
BREAK ALL SHARP EDGES 0.005-.015
ANGULAR= 1°
SIZE
7078
REV
7 6
5
A
DRAWING NUMBER
PROPRIETARY INFORMATION
11015 47th Avenue West,
.XXX= .010
DIMENSIONS ARE IN INCHES
PART NUMBER
CODE:APPLICATION
NEXT ASSY USED ON
B.R.T. 01/14/2008
-
BYPASS VALVE ASSEMBLY
Mukilteo, Washington 98275
B
TOLERANCES
.X= .1
.XX= .03
MACHINE
- - -
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
7 1 BRACKET, BYPASS VALVE MOUNTING S. STEEL 000-015-515 3899
6 1 ELBOW, 3/8" F x F BRASS BRASS 000-052-142 - - -
5 1 INSERT, #68 (3/8" NPT x 1/2" BARB) BRASS 000-052-105 - - -
4 1 ELBOW, 3/8" NPT STREET BRASS 000-052-086 - - -
3 1 NIPPLE, 3/8" NPT x 3/8" M PROPANE BRASS 000-052-128 - - -
2 2 PLUG, 3/8" NPT ALLEN HEAD BRASS 000-106-008 - - -
1 1 VALVE, PA PRESS REG MOD VARIOUS 000-169-188 - - -
6
5
1
3
4
2
7
NOTES:
1. REFERENCE BOM P/N 610-009-001
