8-31: Machine Assemblies and Parts Lists

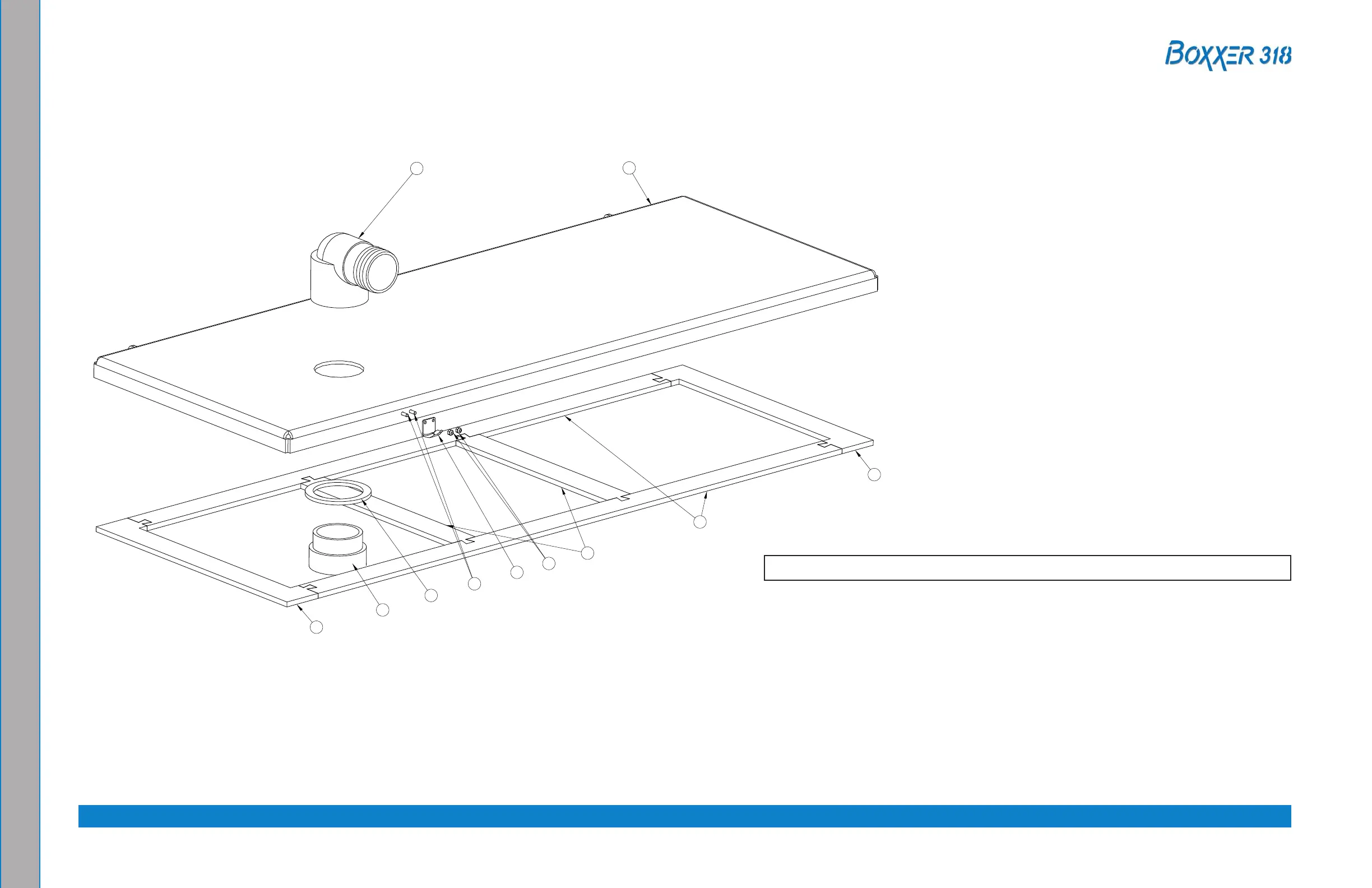

Cover, Single Vac. - 70 Gallon URT AssemblyFigure 8-22.
6891 Rev. A
Cover, Single Vac. - 70 Gallon URT Assembly Parts List
1 000-041-443 Cover, Single Vac. 70 Gallon URT 1
2 000-052-222 Elbow, 2” Barb x 2” FPT 1
3 000-057-202 Gasket, End - Recovery Tank 2
4 000-057-203 Gasket, Middle - Recovery Tank 2
5 000-057-204 Gasket, Middle - Recovery Tank 2
6 000-057-015 Gasket, 1-1/2” Bulkhead Fitting 1
7 000-052-219 Adapter, 2” NPT x 2” F Slip 1
8 000-086-008 Latch, Bungee - Strike 1
9 000-143-539 Screw, #6-32UNC x 0.50” Lg. Button Head Allen 2
10 000-094-063 Nut, #6-32UNC Nylock 2
Item Part Number Description Qty
APPLICATION
NEXT ASSY
BOXXER 421
APPVD
CHKD
DRAWN
MACHINE
FINISH
125
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
TOLERANCES
.X= ± .1
.XX= ± .03
.XXX= ± .010
ANGULAR= ±1°
70 GALLON UNIVERSAL RECOVERY TANK
ASSEMBLY, COVER - SINGLE VAC.
L.O.L.
C.I.R.
W.B.
03/16/2007
03/16/2007
03/16/2007
6861
SIZE
D
PART NUMBER
SEE NOTES
SCALE:
1:4
CODE:
- - -
DRAWING NUMBER
6891
REV
A
SHEET:
1 OF 1
USED ON
REVISIONS
LTR
REVISION
CODE DATE BY
CHKD
APPVD
11015 47th Avenue West,
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
®
BREAK ALL SHARP EDGES 0.005-0.015
10 2 NUT, #6-32UNC NYLOCK S. STEEL 000-094-063 - - -
9 2 SCREW, #6-32UNC x 0.50" LG. BUTTON HEAD ALLE S. STEEL 000-143-539 - - -
8 1 LATCH, BUNGIE - STRIKE S. STEEL 000-086-008 - - -
7 1 ADAPTER, 2" NPT x 2" F SLIP ABS 000-052-219 - - -
6 1 GASKET, 1-1/2" BULKHEAD FITTING VARIOUS 000-057-015 - - -
5 2 GASKET, MIDDLE - RECOVERY TANK - 70 GALLON RUBBER 000-057-204 C-6909
4 2 GASKET, MIDDLE - RECOVERY TANK RUBBER 000-057-203 C-6908
3 2 GASKET, END - RECOVERY TANK RUBBER 000-057-202 C-6907
2 1 ELBOW, 2" BARB x 2" FPT ABS 000-052-222 - - -
1 1 COVER, SINGLE VAC. 70 GALLON UNIVERSAL REC ALUMINUM 000-041-443 D-6873
Item No Qty Description Material Part Number Dwg. No.
1
2
10
8
9
4
5
3
7
6
3
NOTES:
1. REFERENCE P/N #610-003-015.
A
ITEM 9 WAS QTY. 2; ITEMS 9-10 WERE QTY. 4;
A
LRIP
04/11/2007
L.O.L.
C.I.R.
W.B.
