HydraMaster Boxxer 318 - Vacuum Relief Valve Assembly Parts List

Machine Assemblies and Parts Lists: 8-32

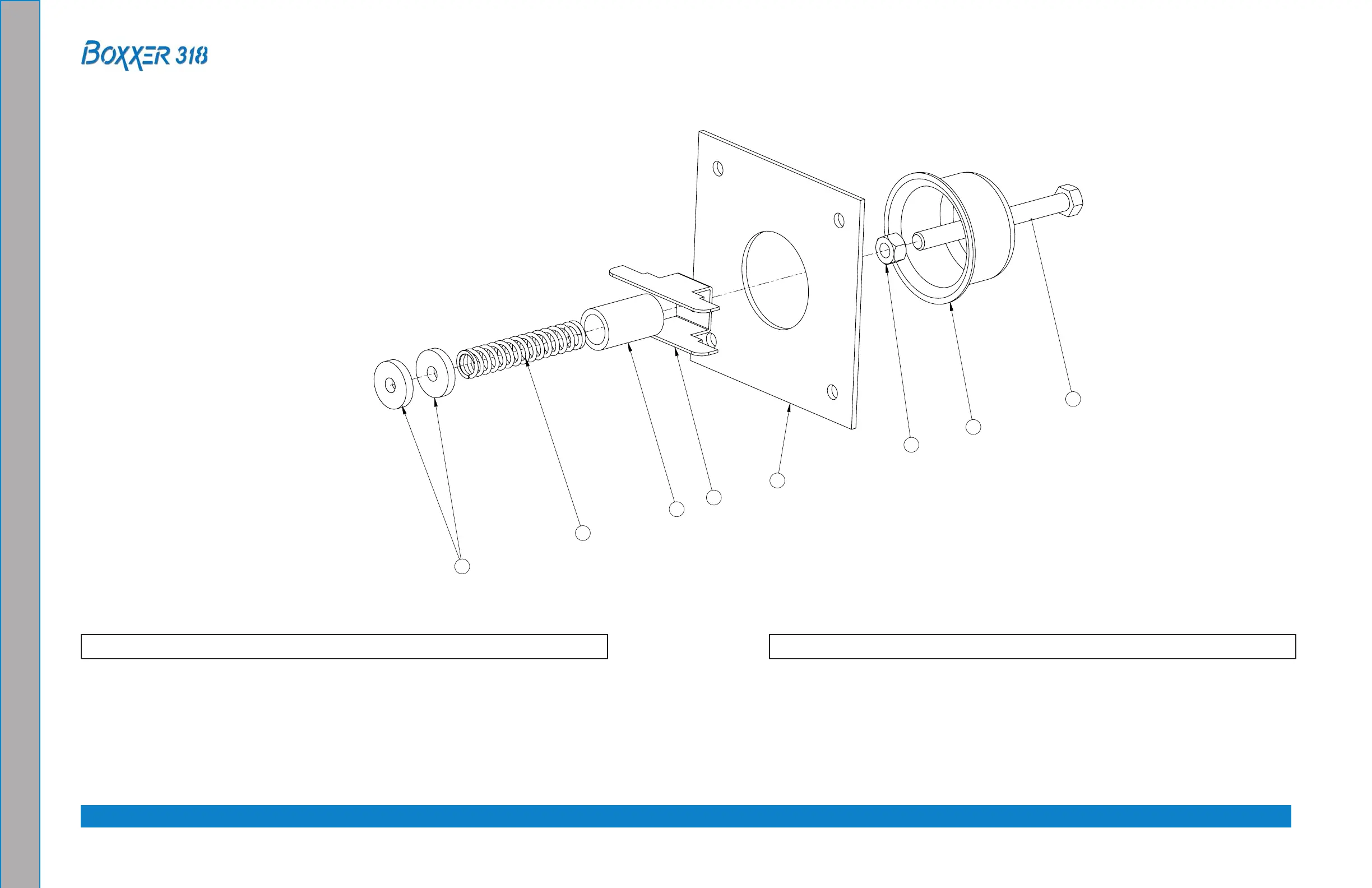

Vacuum Relief Valve AssemblyFigure 8-23.
6894 Rev. A
Vacuum Relief Valve Assembly Parts List
1 000-015-182 Bracket, Vacuum Relief Valve 1
2 000-027-032 Cap, Spun Vacuum Relief Valve 1
3 000-125-111 Tube, Vacuum Relief Spring Guide 1
4 000-105-332 Plate, Vacuum Relief Valve Mounting - URT 1
Item Part Number Description Qty
7
5
3
1
4
8
2
6
NOTES:
1. REFERENCE BOM'S:
610-003-015 70 GALLON - FOR BOXXER 421
610-003-016 70 GALLON - FOR BOXXER 427
610-003-017 100 GALLON - FOR BOXXER 421
610-003-018 100 GALLON - FOR BOXXER 427
610-003-060 100 GALLON - FOR MAXX
610-003-061 100 GALLON - FOR CTS 450
610-003-062 100 GALLON - FOR STEAMATIC
601-060-120 100 GALLON - FOR CDS 4.6
601-060-121 100 GALLON - FOR CDS 4.8
A
A
REVISIONS
LTR REVISION CODE DATE BY CHKD APPVD
A
ADDED PART NUMBER; NEW NEXT ASSEMBLY
AND USED ON.
LRIP 9/15/2009 KW EJ EJ
APPLICATION
7729 ZR-CDS
6526
50URT/BXR318/85RMT
7067 70URT/BXR318
7246
70URT/BXR318/85RMT
7230 50 URT/BXR 318
6977 CDS 4.8
6978 CDS 4.6
- - - 100 URT/MAXX
NEXT ASSY USED ON
8 1 NUT, 3/8"-16UNC HEX JAM S. STEEL 000-094-101 - - -
7 2 NUT, 3/8"-16UNC x 1.00" O.D. KNURLED ASTM B16 000-094-077 4179
6 1 SCREW, 3/8"-16UNC x 4" LG. HEX HEAD - FULL THREAD S. STEEL 000-143-198 - - -
5 1 SPRING, VACUUM RELIEF VALVE AISI 302 000-155-026 - - -
4 1 PLATE, VACUUM RELIEF VALVE MOUNTING - URT 5052-H32 000-105-332 6895
3 1 TUBE, VACUUM RELIEF SPRING GUIDE AISI 304-2B 000-125-111 4206
2 1 CAP, SPUN VACUUM RELIEF VALVE AISI 304 000-027-032 5234
1 1 BRACKET, VACUUM RELIEF VALVE AISI 304-2B 000-015-182 4146
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO. DWG. NO.
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
A
ASSEMBLY, VACUUM RELIEF VALVE - URT
A
REV
6894 601-050-001
03/16/2007
03/16/2007
03/16/2007
USED ON NEXT ASSY
APPLICATION CODE:
PART NUMBER
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
BREAK ALL SHARP EDGES 0.005-.015
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR= 1°
SIZE
C
11015 47th Avenue West,
Mukilteo, Washington 98275
PROPRIETARY INFORMATION
DRAWING NUMBER
SHEET 1 OF 1
SCALE: 1:1
APPVD
CHECKED
DRAWN
125
MACHINE
FINISH
L.O.L.
C.I.R.
W.B.
- - -
BOXXER 427
BOXXER 421 6861
6860
Item Part Number Description Qty
5 000-155-026 Spring, Vacuum Relief Valve 1
6 000-143-198 Screw, 3/8”-16UNC X 4” Lg. Hex Head - Full Thread 1
7 000-094-077 Nut, 3/8”-16UNC X 1.00” O.D. Knurled 2
8 000-094-101 Nut, 3/8”-16UNC Hex Jam 1
