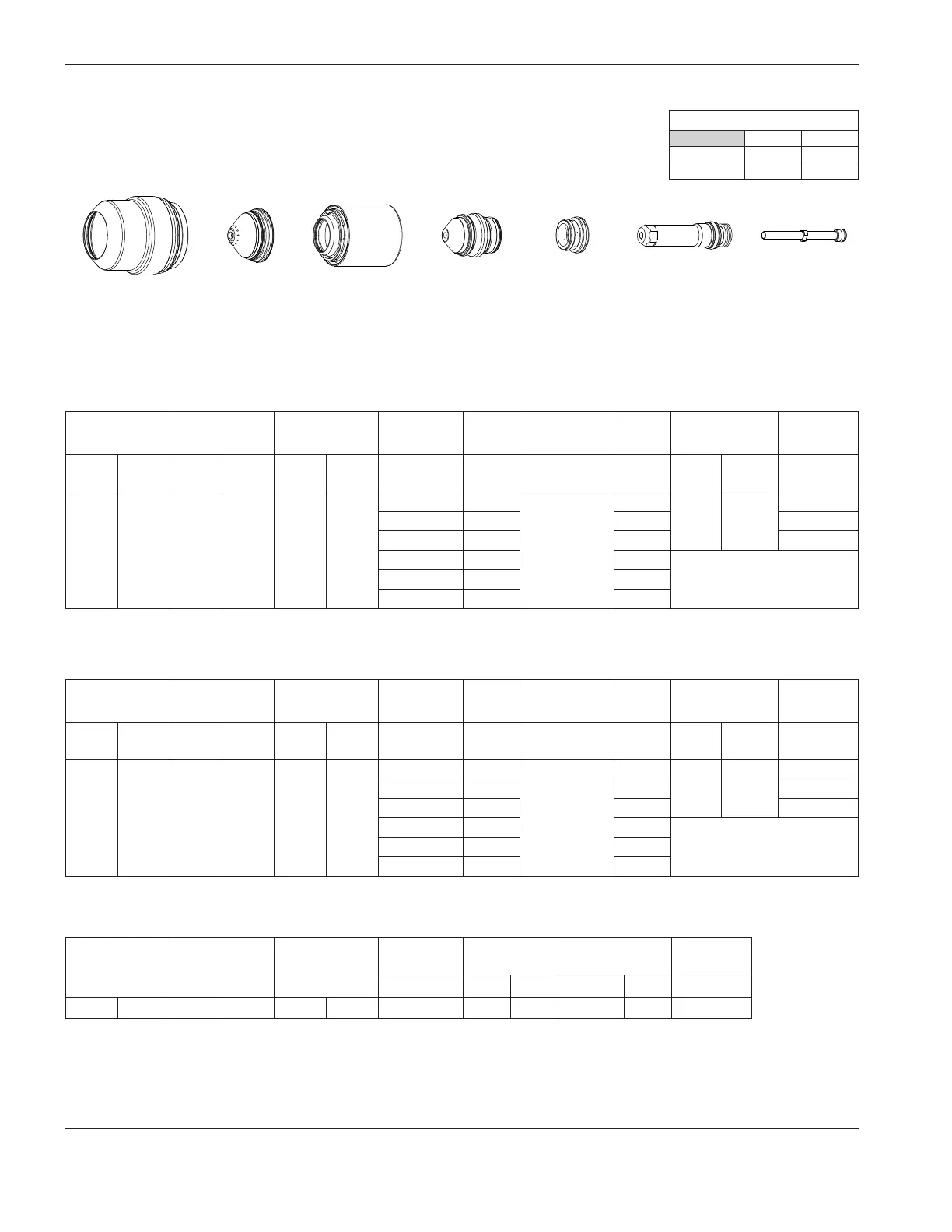

OperatiOn
4-106 HPR800XD Auto Gas – 806500
Aluminum
H35 Plasma / N
2
Shield
600 A
Flow rates – lpm/scfh
H35 N
2
Preflow 0 / 0 113 / 240
Cutflow 57 / 121 134 / 283
220707220637 220709220712 220353220859 220571
Select
Gases
Set
Preflow
Set
Cutflow
Material
Thickness
Arc
Voltage
Torch-to-Work
Distance
Cutting
Speed
Initial Pierce
Height
Pierce Delay
Time
Plasma
gas
Shield
gas
Plasma
gas
Shield
gas
Plasma
gas
Shield
gas
mm Volts mm mm/m mm Factor % Seconds
H35 N
2
43 13 68 43
40 173
10.2
1791
25.4 250
1.0
45 178 1502 1.5
50 181 1302 2.0
60 189 839
Edge start80 206 464
100 208 378
Metric
Marking
Select
Gases
Set
Preflow
Set
Cutflow
Material
Thickness
Arc
Voltage
Torch-to-Work
Distance
Cutting
Speed
Initial Pierce
Height
Pierce Delay
Time
Plasma
gas
Shield
gas
Plasma
gas
Shield
gas
Plasma
gas
Shield
gas
in Volts in ipm in Factor % Seconds
H35 N
2
43 13 68 43
1-1/2 173
0.4
75
1.0 250
1.0
1-3/4 178 60 1.5
2.0 181 50 2.0
2-1/2 189 30
Edge start3.0 206 19
4.0 208 14
English
Select
Gases
Set
Preflow
Set
Cutflow
Amperage
Torch-to-Work
Distance
Marking
Speed
Arc
Voltage
Amps mm in mm/m ipm Volts
N
2
N
2
50 20 60 35 24 1.8 0.07 1270 50 106
Note: Pierce complete must be turned OFF for all 600 A processes.
