InstallatIon
3-44 HPR800XD Auto Gas – 806500

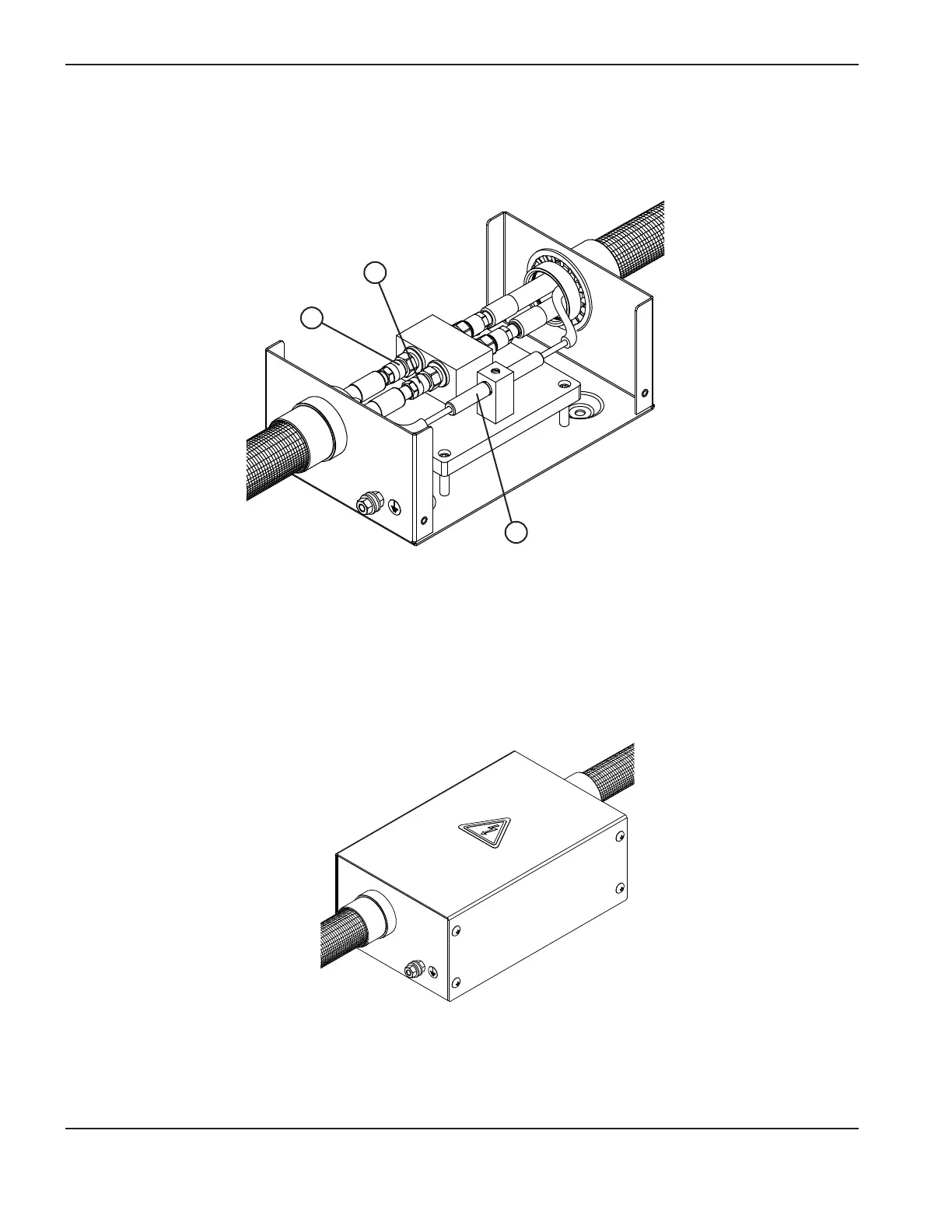

Lead from the torch to the junction box
1. Connect the lead from the torch to the junction box.
1 Coolant supply hose (green) 3 Pilot arc lead (yellow)
2 Coolant return hose (red)
2. Install the junction box cover.
From the ignition console
From the torch
1
2
3
