InstallatIon
HPR800XD Auto Gas – 806500 3-45

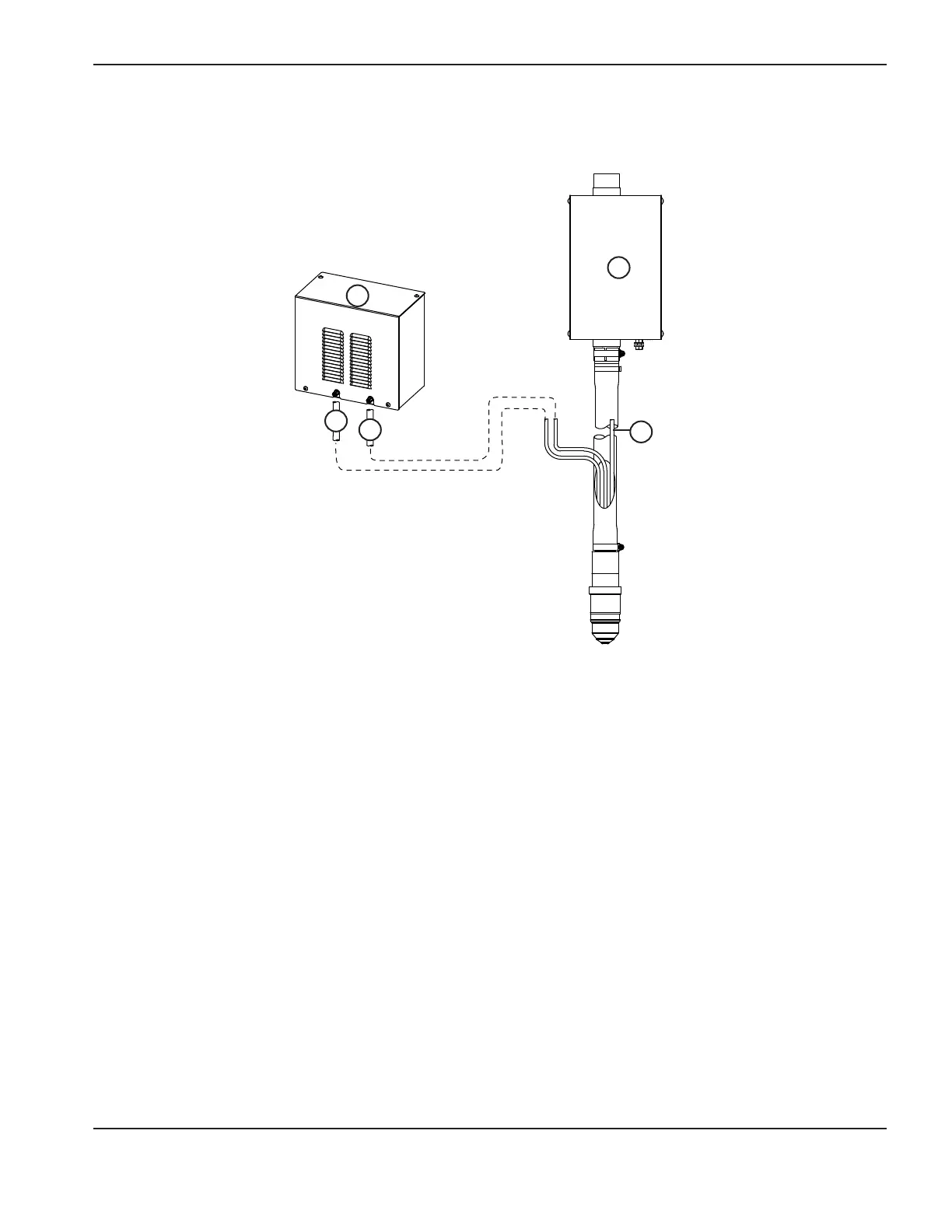

3. Connect the torch hoses to the metering console.
1 Metering console
2 Junction box
3 Plasma gas vent hose (white)
4 Plasma gas hose (black)
5 Shield hose (blue)
1
3
2
4
5
