run Mode and the stC keyPad
The Run Mode displays appear static when the operator is ready and waiting for a run command. When
the display is ashing GATE OPENING or GATE CLOSING, a command has been received and the barrier
gate is in motion. The command may come from a variety of sources: a card reader, push-button remote,
or recognition of a vehicle passing over a loop detector. In all cases, the operator “runs” the motor when it
receives an operational command.
Three displays indicate the position or status of the gate. The keypad entry used to access the User or Installer
menus, begins at one of these Run Mode displays.

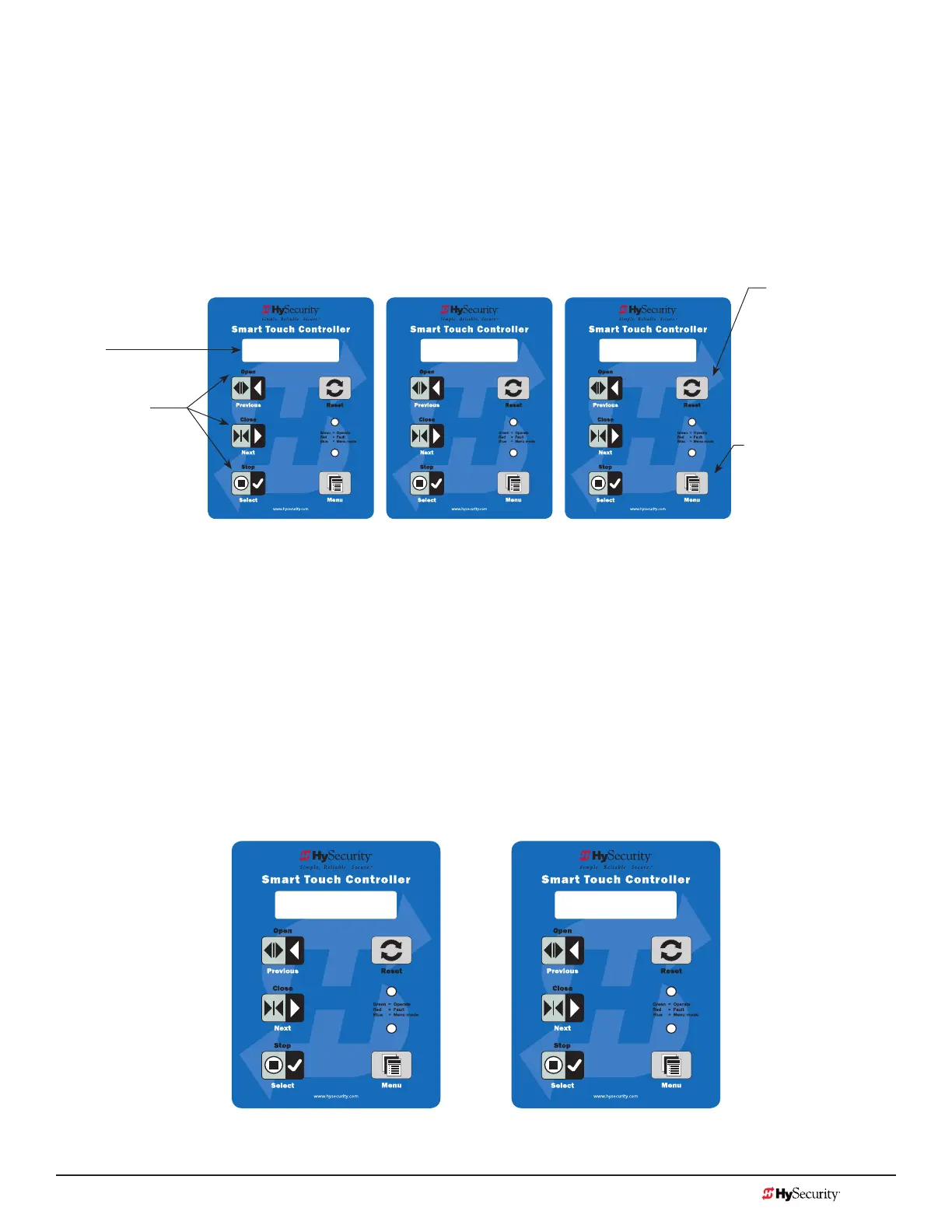

HYSECURITY
GATE OPEN
HYSECURITY
GATE CLOSED
HYSECURITY
GATE STOPPED
Pressing Open,
Close, or Stop causes
the gate to perform
the command.
32-character display
identies operator
status.
Pressing Menu scrolls
through operator status
displays and accesses the
User Menu.
NOTE: Pressing the Menu
button twice, bypasses
the operator status
displays.
Pressing Reset clears
alerts or faults and
returns to Run Mode.
NOTE: Press Reset at
any Run mode status
display to view the
software version. For
example: h4.53
Run Mode Displays
NOTE: To access the User or Installer menus, the motor cannot be engaged and the gate cannot be moving.
VieWinG Gate oPerator sCrollinG status
Press the Menu button once and the operator status displays scroll past in two second intervals. Pertinent
information appears to provide a quick overview of the operator’s status or congurations.
The type of information that may scroll across the display includes: interlocked or sequenced gate (if
applicable), operator type (OT), gate handing, Usage Class (UC), buss voltage, and life cycle counter.
Example of Operator Status Displays
OT 1 OPERATOR
SLIDEDRIVER
UC 2
USAGE CLASS
