MX3657-01 Rev. D ©2020 Bi-Parting & Dual Gate Systems
hysecurity.com | 800-321-9947 85
Bi-Parting & Dual Gate Systems
Conguring two or more operators to work together as an interlocked pair (Primary/Secondary or Sally Port)
or sequenced gate system is easy to do with the Smart Touch Controller. There is no need to order a special
model or any adapters. The area of the board marked Dual Gate employs a 3-wire, RS-485 serial port for
communication between the operators.
NOTE: RS-485 communication is available for networked security systems. For additional information, refer to Connecting
Sequenced Gates on page 88.
ConneCtinG an interloCked Pair (dual Gate)
The Smart Touch Controller (STC) provides dual gate connections and programming features to connect a pair
of gate operators in a Primary/Secondary or interlocked Sally Port conguration. The software establishes the
communication protocols when wiring the two gate operators. A Primary/Secondary pair of operators can be
set for different open/close timing sequences and Sally Port gates are often used at correctional facilities. In
Sally Port congurations, one operator cannot open unless the other is fully closed. To learn how to connect
the wiring between operators, review the wire diagram on the next page.
NOTE: Both StrongArm gate systems need to have compatible software versions installed on their Smart Touch Controllers.

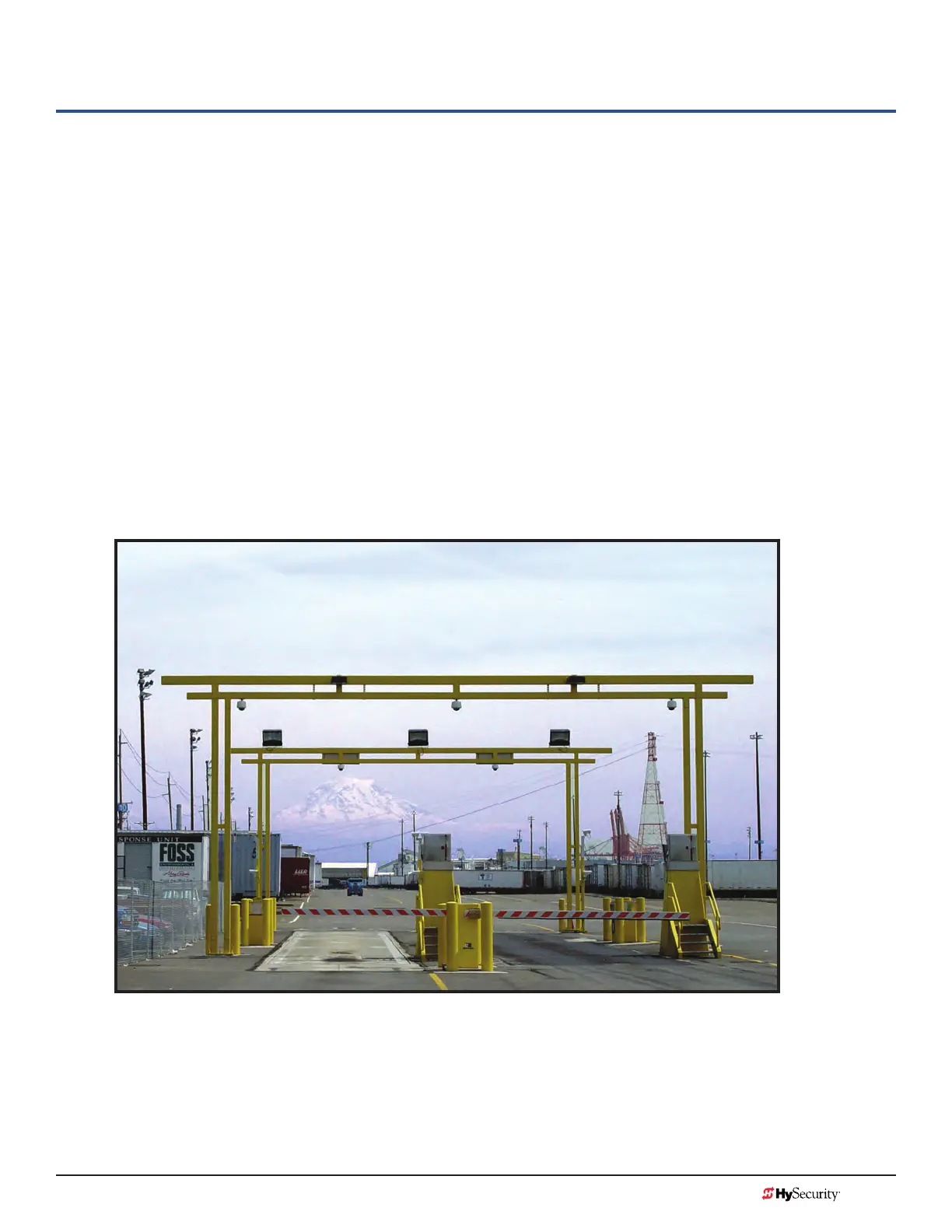

Dual StrongArms
