inteGratinG With seCurity systeMs and hynet™ GateWay
HySecurity hydraulic gate operators provides a 2-wire, serial interface (RS-485 connection) which allows remote
access to one or more operators. With software protocols provided by HySecurity, bi-directional status updates
and control commands are easily integrated with a central controller (computer or server), which becomes the
primary (master) to the connected operators. Up to 31 physical operators can be polled from the central
master command station. Reset requests, gate control, gate status, and gate faults can be monitored and
information can be retrieved from the central command station.
The RS-485 interface is also used to communicate with the HyNet Gateway, a web-enabled interface. To view
the user guide and quick start information regarding HyNet Gateway SFP 4/1, go to the HySecurity website,
Technical_Support_Installation_Manuals.
SA 1
SYSTEM ADDRESS
SA Display in the Installer Menu
Once the physical connection is made and protocols are
established, an SA (System Address) must be assigned
for each operator through its Installer Menu. For network
communication, choosing a “SA” of 1 to 99 establishes
individual network polling addresses. A “SA” of zero
means no network communication is desired.
If you plan to connect operators to a networked central
master command station, contact HySecurity for software
protocols and additional information. Refer to Contact
Information on page 2.
NOTE: Connect HyNet power
to +24VDC on the Power Supply
Board. Do NOT connect HyNet
to +24V terminal under RADIO
OPTIONS.
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR
COM
DO NOT USE
SENSOR 2
DO NOT USE
SENSOR 3
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24

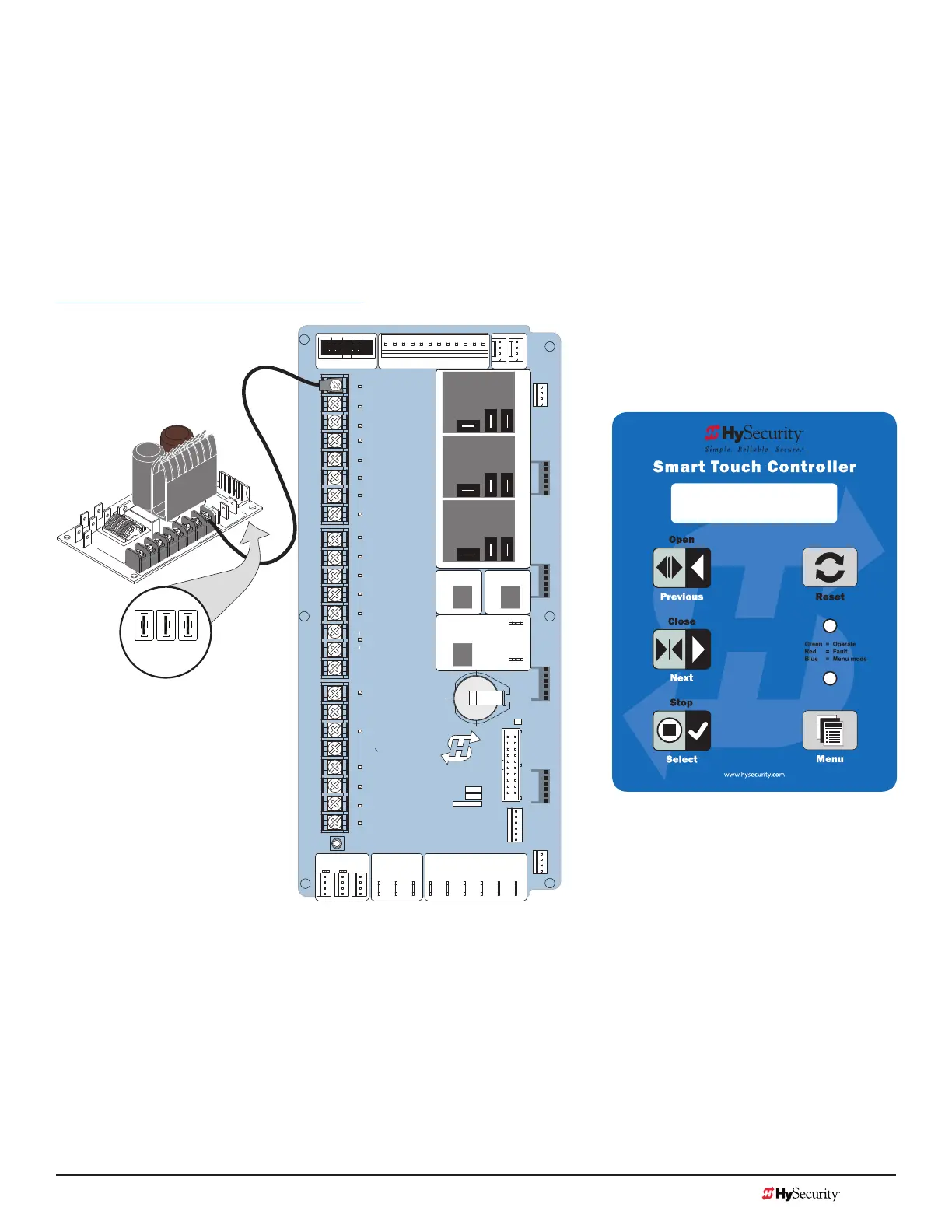

Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE EXIT
INSIDE OBSTR
OUTSIDE OBSTR
SHADOW RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN
S 1
+24V +24V
STAT US
LED
24V AC Acce
s
sory power
+
24V D
C
Power Connector
Power Supply
Board
COMMON
Smart Touch Controller
+24VDC
