HySecurity Smart Touch User Manual

MX3657-01 Rev. D ©2020 Vehicle Detector Installation
hysecurity.com | 800-321-9947 97
installinG standard 11-Pin Box tyPe VehiCle deteCtors
If standard 11-pin box type vehicle detectors are to be used, perform the following procedure.
If there is sufcient space, install the sockets in the control box; if not, then install them in a separate external
housing. Carefully consider your peripheral connections. Any peripheral device required for safe gate
operation should be attached to 24VDC in case of an AC power outage.
NOTE: Box detectors with relays require ve times more power than Hy5A detectors. One Hy5A detector draws about 0.005A.
Consider Hy5A vehicle detectors for DC and Solar powered sites.

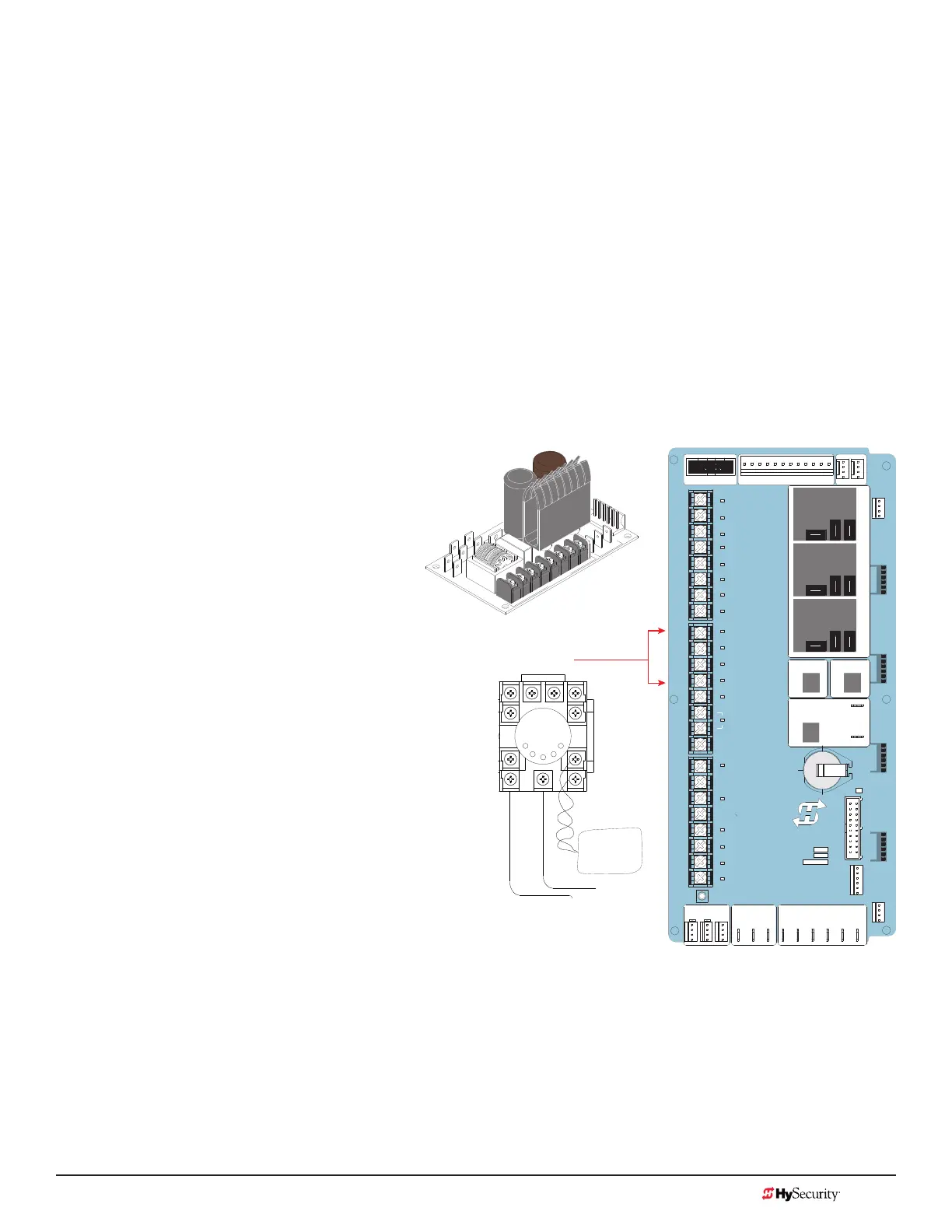

1. Connect 24 Volt power to the detector. Connect Pin No. 1 to a 24VAC or 24VDC terminal and Pin No. 2
to common.
2. Connect output Pin No. 6 to the Common Bus and output Pin No. 5 to one of the four detector
terminal inputs (depending upon the detector function required) on the Smart Touch Controller.
If multiple detectors are used, route the power
wires and common wire from socket to socket
(daisy-chaining) rather than individually running
each wire to the same location. The only wires
that are separate are the output wire to the
Smart Touch Controller and the detector loop
input wires.
Always keep the detector loop wires well
twisted beyond the area of the loop. The
lead in portion sealed in a saw cut does not
need to be twisted so long as the wires are
encapsulated in loop sealant and cannot move.
24V AC Accessory
power
+ 24V DC
COMM
ON
VEHICLE LOOP
Loop Detector
Common
To LOOP terminal on Smart Touch Controller
Box Detector
Inputs
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
SENSOR 1
SENSOR
COM
DO NOT USE
SENSOR 2
DO NOT USE
SENSOR 3
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE EXIT
INSIDE OBSTR
OUTSIDE OBSTR
SHADOW RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
VEHICLE DETECTOR
COM COMA B
RPM
COMOPEN
S 1
+24V +24V
STAT US
LED
