MX3657-01 Rev. D ©2020
84 hysecurity.com | 800-321-9947 StrongArm Programming and Operations
Setting Performance Description Wire
Connection
36 Outbound Tenant Output N.O. Input. The relay outputs a 250ms pulse and decrements
the tenant counter when the Tenant User input is activated
and IALD, then CLD, are tripped and released. This activity
signals a prepaid customer has exited the facility.
R1 and R2, R4
through R11
TENANT USER
37 Inbound Special Output N.O. Input. The relay outputs a 250ms pulse and increments
the special counter when the SPECIAL USER input is
activated and OALD, then CLD, are tripped and released.
This activity signals a customer has entered the facility.
R1 and R2, R4
through R11
SPECIAL USER
38 Outbound Special Output N.O. Input. The relay outputs a 250ms pulse and decrements
the tenant counter when the SPECIAL USER input is
activated and IALD, then CLD, are tripped and released. This
activity signals a customer has exited the facility.
R1 and R2, R4
through RC11
SPECIAL USER
39 Set aside for Factory Use HySecurity Testing Only Do not use
40
41 Test Open Pulse Output pulses ve seconds after close limit is activated.
Typically used for cycle testing.
N/A
42 Break-Away Switch Output
43
44
45

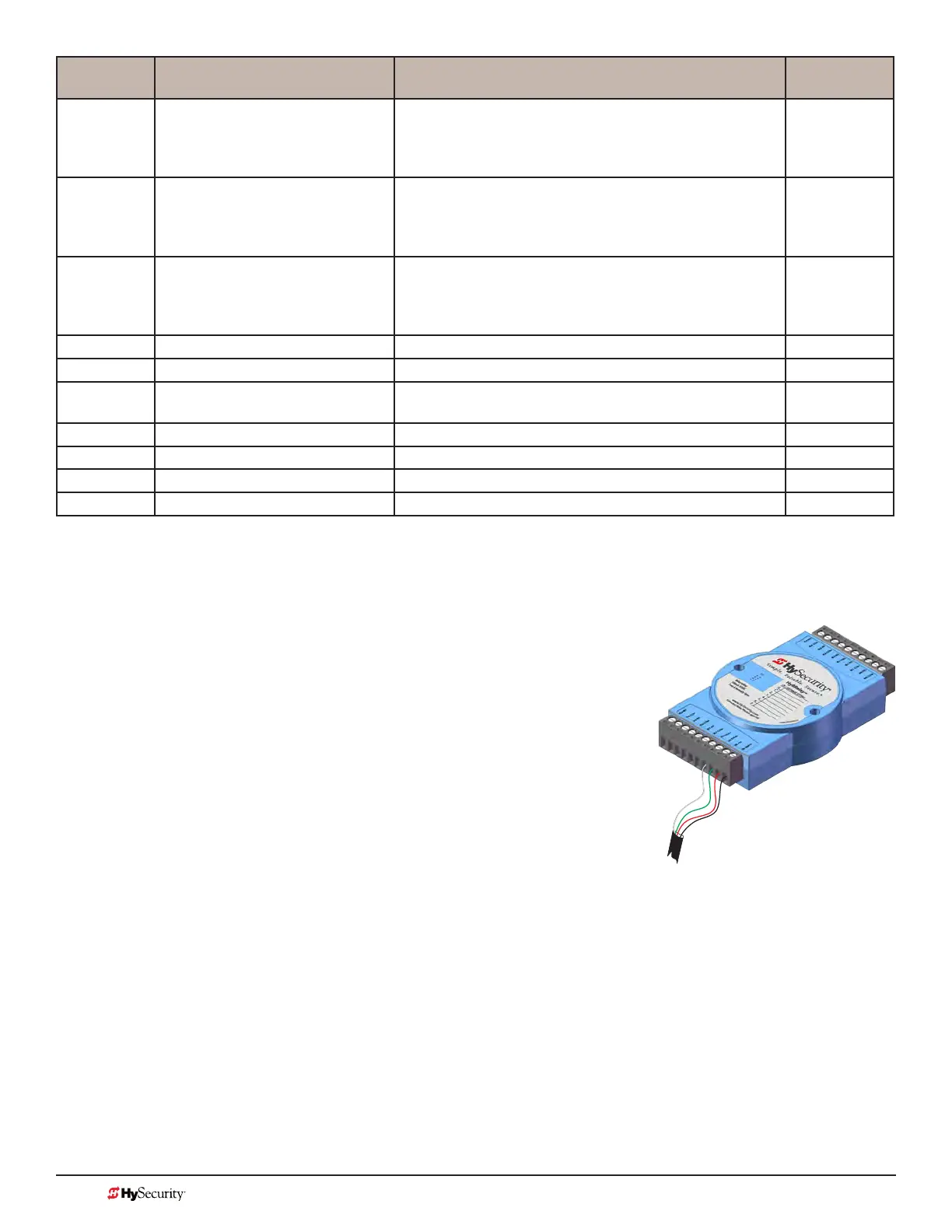

hy8relay Module oPtion
The Hy8Relay (extended relay module) provides 8 numbered mechanical
relays. RELAY 4 through, RELAY 11 LOGIC can be accessed through the
Installer Menu. Set the number for the relay based on the information found
in Programmable User Relays: Table 7.
Wire communication cable connections between the DUAL GATE ports, at
the base of the STC, and the extended mechanical relay module. Refer to
instructions that accompany the Hy8Relay Module.
