i-CAT FLX - Page 12

1-4
i-CAT FLX Installation Manual
032-0330-EN Rev K
12.
3/16
12

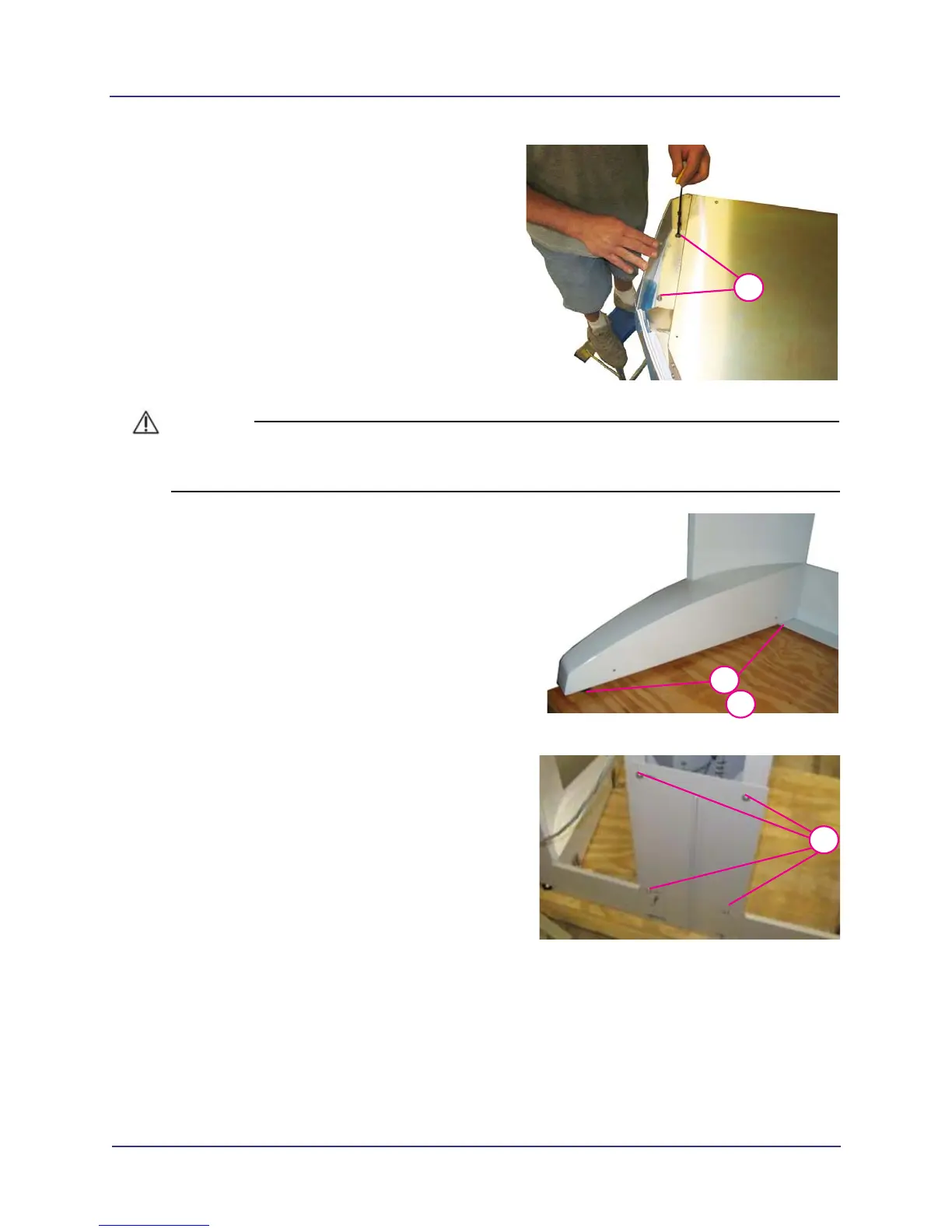

From top of scanner, secure overhead with
mounting hardware, two SHCS
1/4-20 x 5/8 long with 1/4” split washers, both
sides.
CAUTIONCAUTION
Care must be taken when sliding the scanner into place. To prevent the scanner from scratching
the floor surface, place the four glides under the scanner feet.
13.
14
13
With the help of an assistant, tilt the scanner to
install the glides under the four feet (corners of
scanner).
14. Slide the scanner into place and remove the
glides.
15.
16
Position patient chair on base. Ensure base
frame centering screw is seated within patient
chair centering block.
16. Loosely secure patient chair to base. Do not
tighten.
