1-5
Scanner Assembly
032-0330-EN Rev K
17.
17

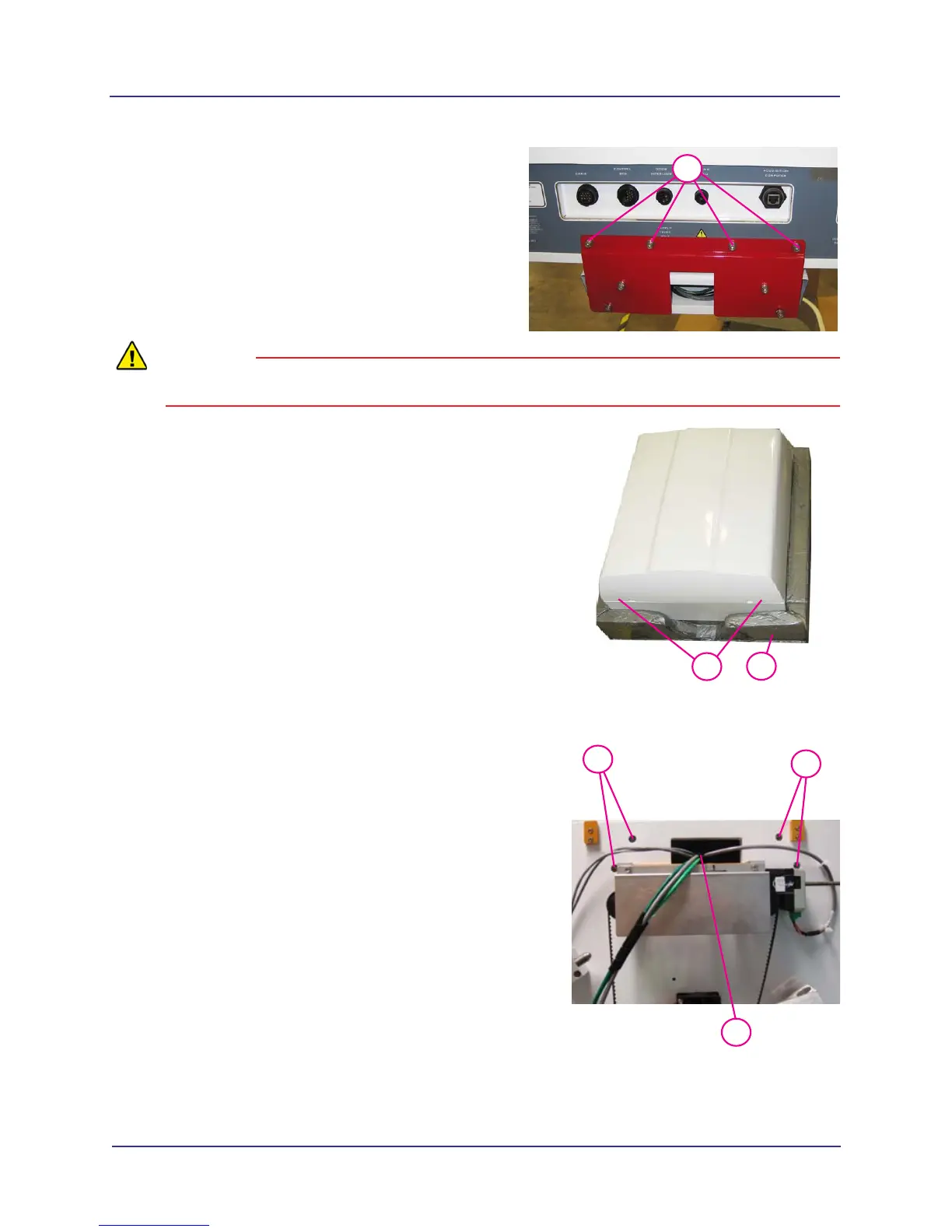

Remove four long screws from red shipping
plate. Keep shipping plate attached with
remaining hardware.
Do NOT discard mounting hardware. Long
screws used for receptor assembly mounting
and short screws for source assembly.
WARNING
The receptor assembly requires a two person lift. Failure to comply may cause bodily injury.
18.
3/32
19
18
Locate receptor assembly and remove packing
material.
19. Remove rear receptor assembly cover (2 screws).
20.
3/16
22
21
21
With an assistant, mount the receptor assembly by
aligning the mounting pins.
21. Attach assembly with four long mounting screws
acquired from red shipping plate. Once secured,
remove remaining screws from shipping plate and
save for later use. Remove shipping plate.
22. Feed cabling through receptor assembly (6 wires).
To Next Page
