1-6
i-CAT FLX Installation Manual
032-0330-EN Rev K
CAUTIONCAUTION
When mating connectors, do not force-fit connectors together. All connectors are color coded and
keyed to prevent improper mating.
23.
23
24
25

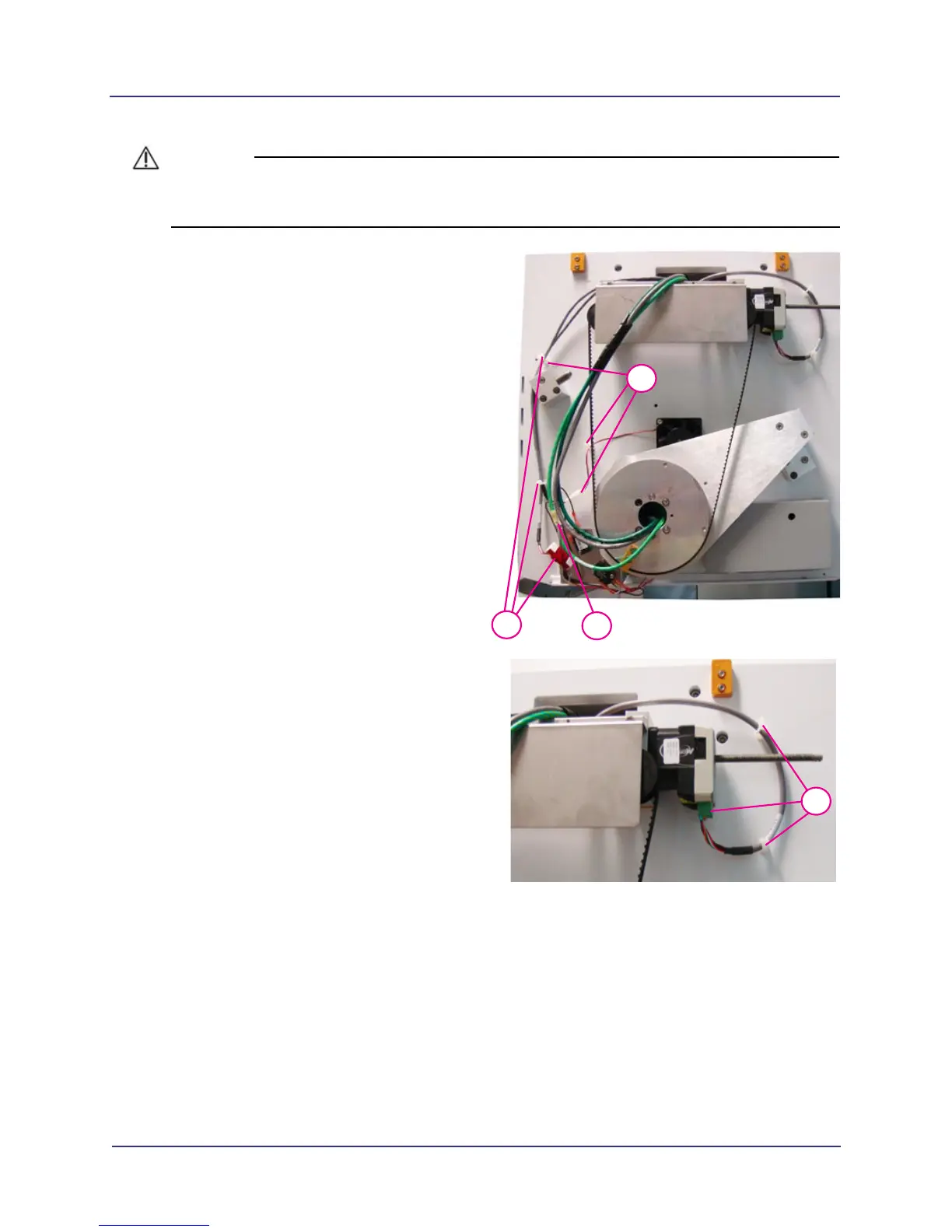

Feed gray wire with red/white connector
through brackets and connect to other
red/white connector.
24. Feed second gray wire through brackets
and connect the red/black wires with
white connectors.
25. Connect together the green/yellow
ground wires.
26.
26
Feed grey wire with green connector
through brackets and connect to motor
assembly.
To Next Page
