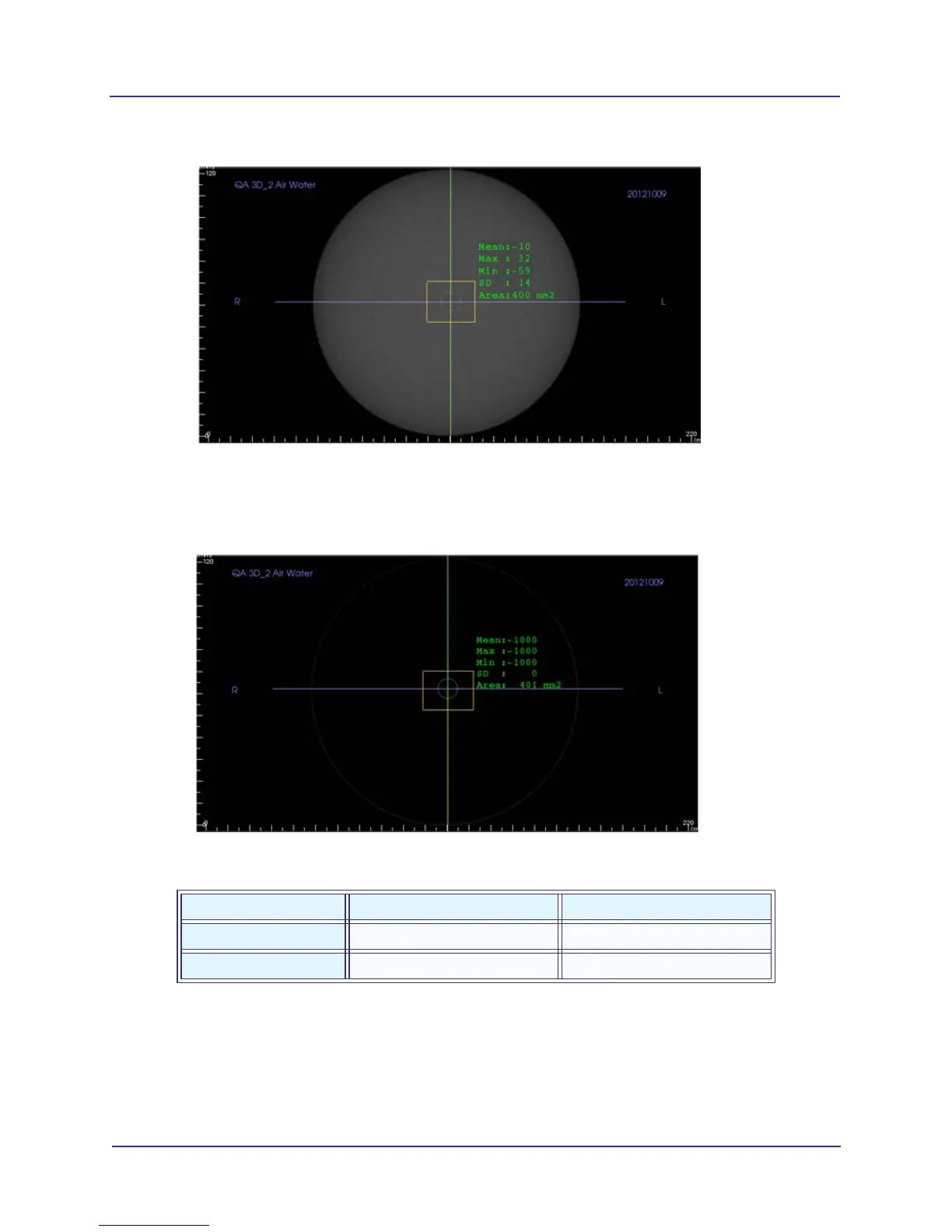

9. Record the Water HU Mean value in the table below.
10. In the upper right image, slide the vertical and horizontal cursor lines above the water level.
11. Record the Air HU Mean value in the table below. Recorded values should fall within the ranges.
12. Remove measurement by clicking on it to select it, then press the Delete key on the keyboard.
NOTE: Do not close image. This image is also used for the Uniformity Test.
Measured Values Water Air
Mean
Expected Values 0 (-70 to +70) -1000 (-1000 to -950)
