7.6.3 Connection Cables
The cable used to connect a regenerative resistance unit to the SSEL controller is different from the standard
regenerative resistance connection cable (the connector on the SSEL cable is not compatible with the connector
on the standard cable). To connect a regenerative resistance unit to the SSEL controller, the cable specified in
[1] below is required.
[1] SCON regenerative resistance connection cable (CB-SC-REU***)
[2] Standard (X-SEL, E-CON) regenerative resistance connection cable (CB-ST-REU***)
Light blue
Brown
Green/
Yellow
Controller end
Receptacle housing
Receptacle contact
Model number nameplate

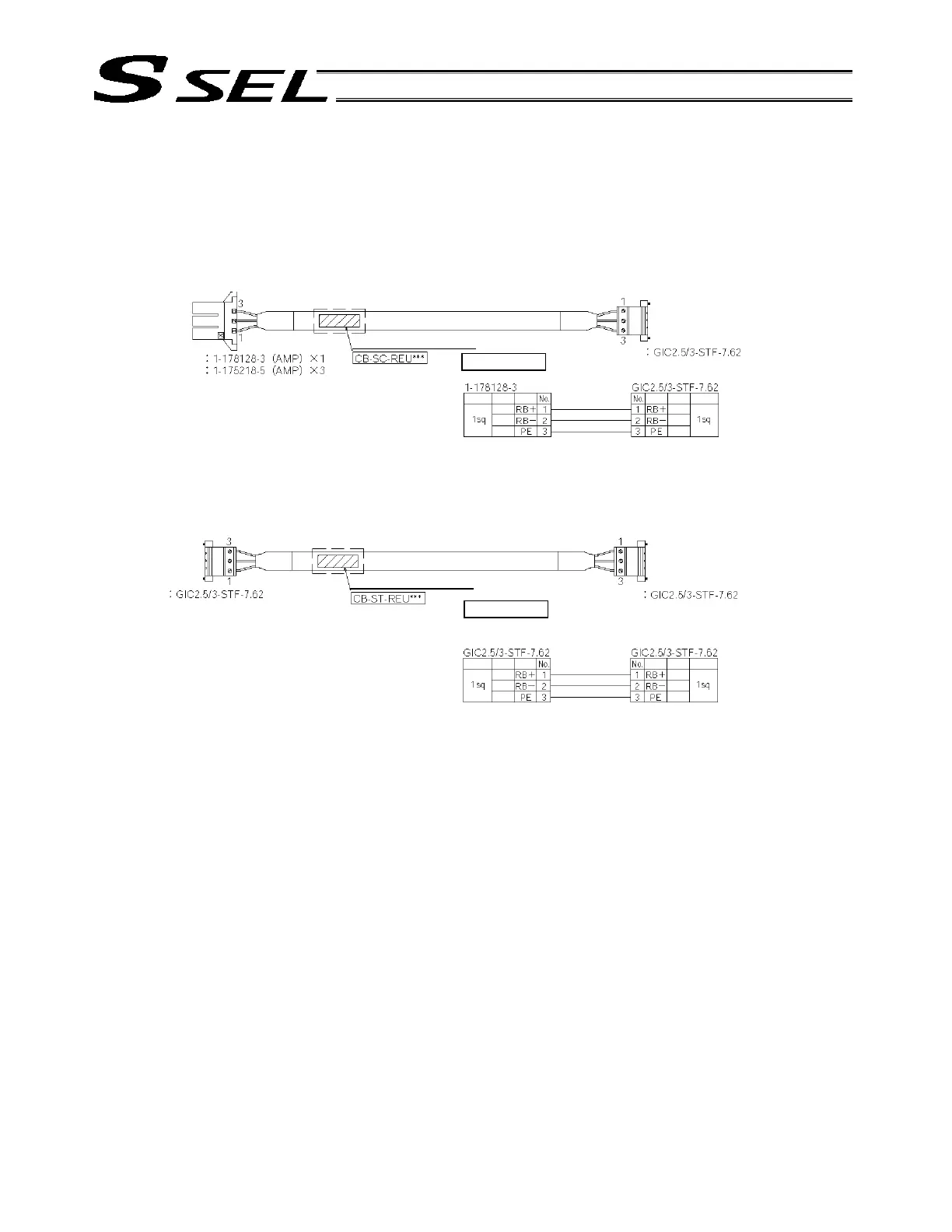

Wiring diagram
External regenerative
resistance unit end
Plug
(Phoenix Contact)
Wire Color Signal Signal Color Wire
Light blue
Brown
Green/
Yellow
Controller end
Model number nameplate
External regenerative
resistance unit end
Plug
(Phoenix Contact)
Plug
(Phoenix Contact)
Light blue
Brown
Green/
Yellow
Wire Color Signal Signal Color Wire
Light blue
Brown
Green/
Yellow
Wiring diagram
