50
Part 1 Installation

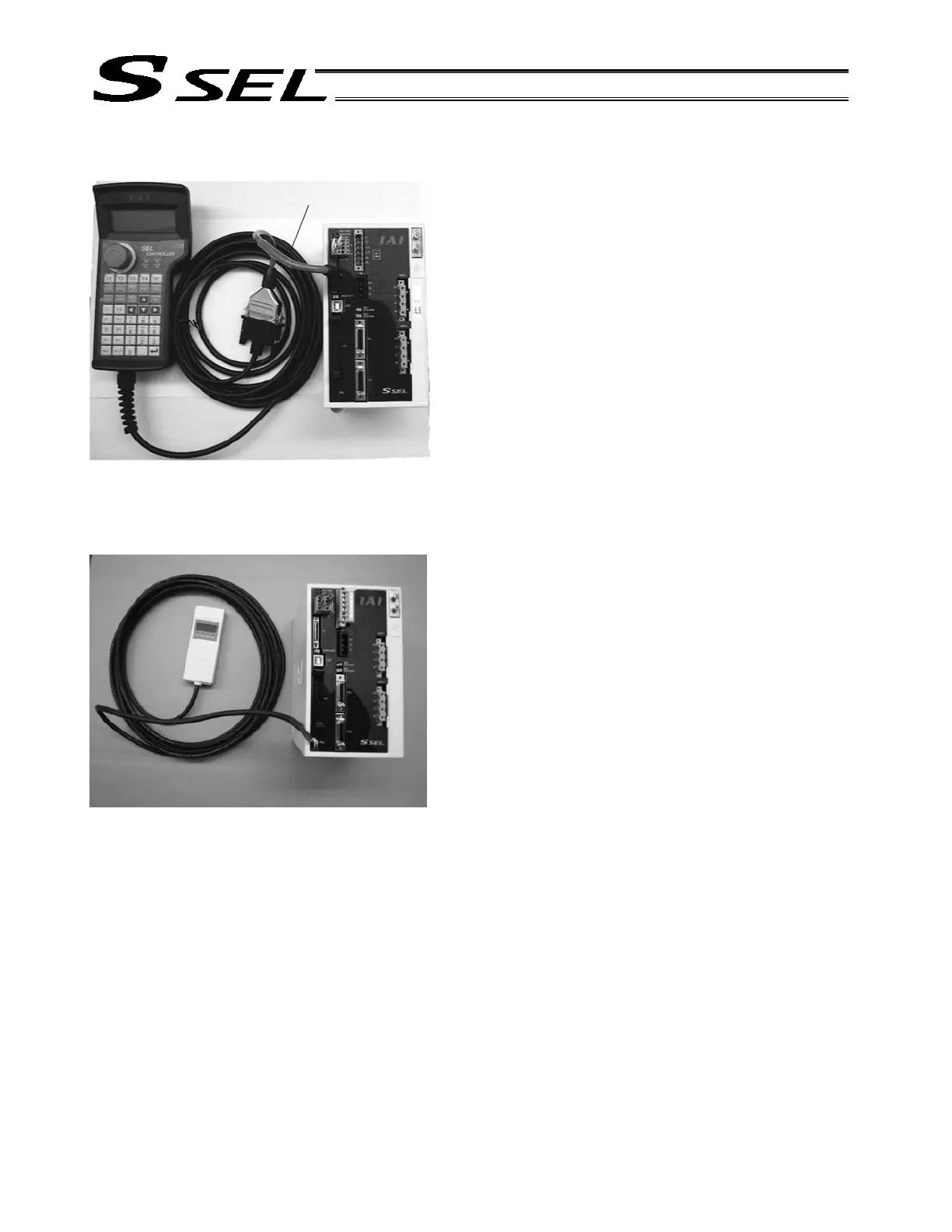

7.7 Connecting the Teaching Pendant/PC Software (TP) (Optional)
The SSEL controller’s teaching connector is a small, half-
pitch connector. If you are using a teaching pendant or PC
software cable, connect the cable to a connector conversion
cable, and then connect the conversion cable to the teaching
connector on the controller.
7.8 Connecting the Panel Unit (Optional)
When the optional panel unit is connected, the controller
status (program number of each active program, error codes,
etc.) can be monitored.
Connector conversion cable
To Next Page
