36
Part 1 Installation
7.3

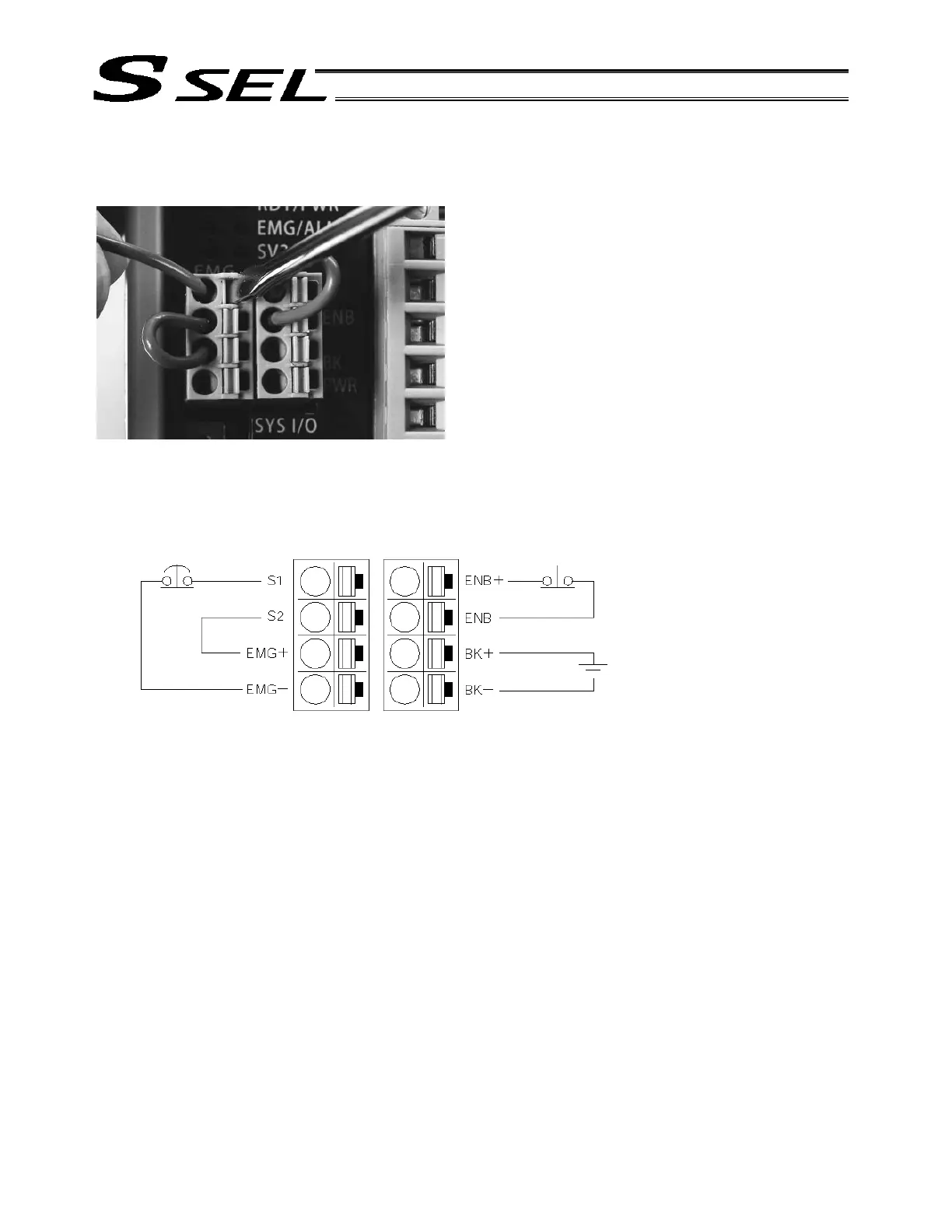

Connecting the Emergency S
top Input, Enable Input and Brake Power Input
(Wiring to the SIO Connector)
As shown to the left, insert the stripped end of each cable
while pressing down the spring u
sing a driver.
Applicable cable size: 0.2 ~ 1.3 mm (AWG2
4 ~ 16)
Recommended stripped
-wire length: 10 mm
Emergency stop switch
Enable switch
24-V brake power supply (for
the specification with brake)
61
63
