Part 1 Installation
7.10 Installing the System-Memory Backup Battery (Optional)

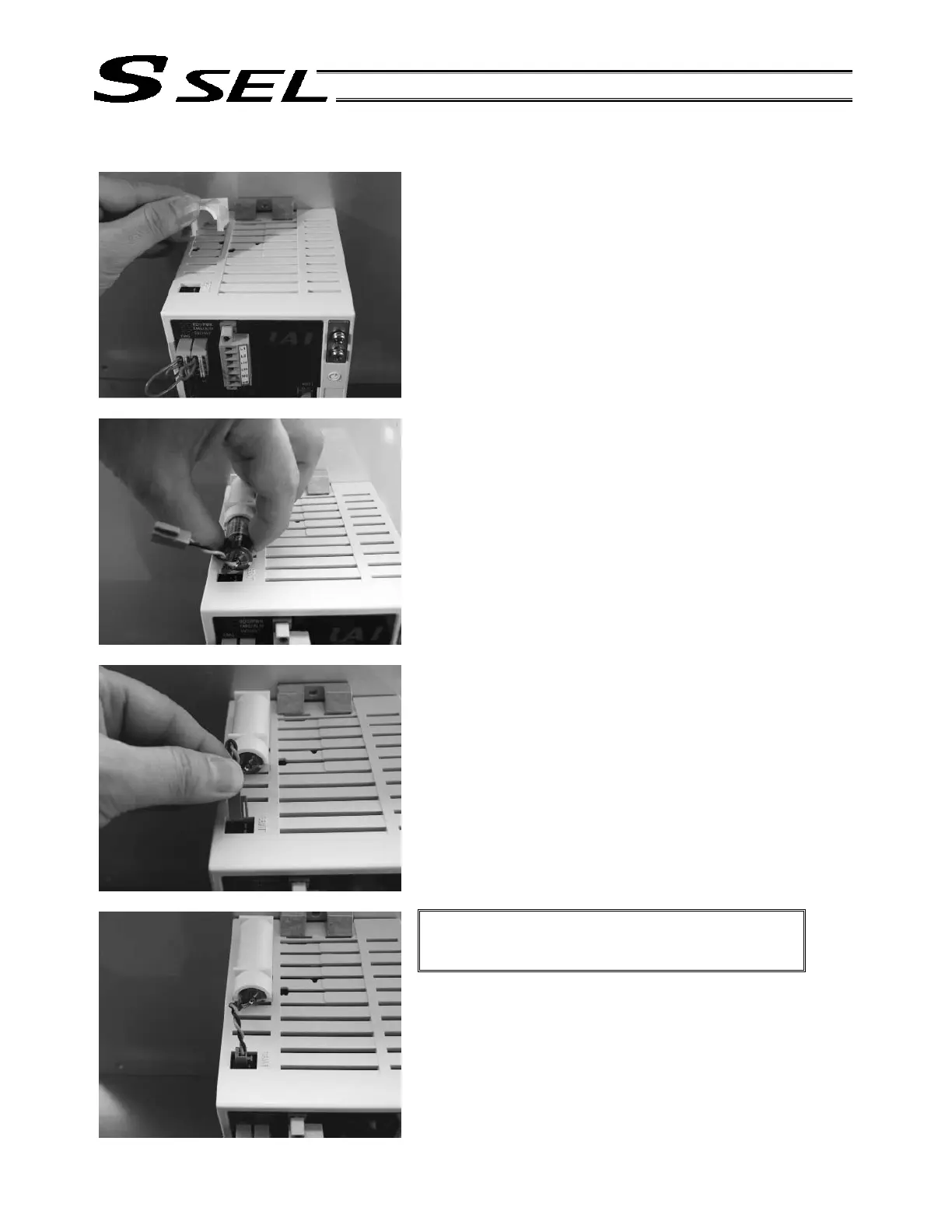

As shown to the left, install the supplied battery holder at the top
of the controller.
Insert the battery into the holder.
Connect the battery connector.
Pay attention to the connector orientation.
(The hook of the connector should face right when viewed from
the front side of the controller.)
Caution: If the system-memory backup battery is
used, “Other parameter No. 20” must be set
to “2.”
