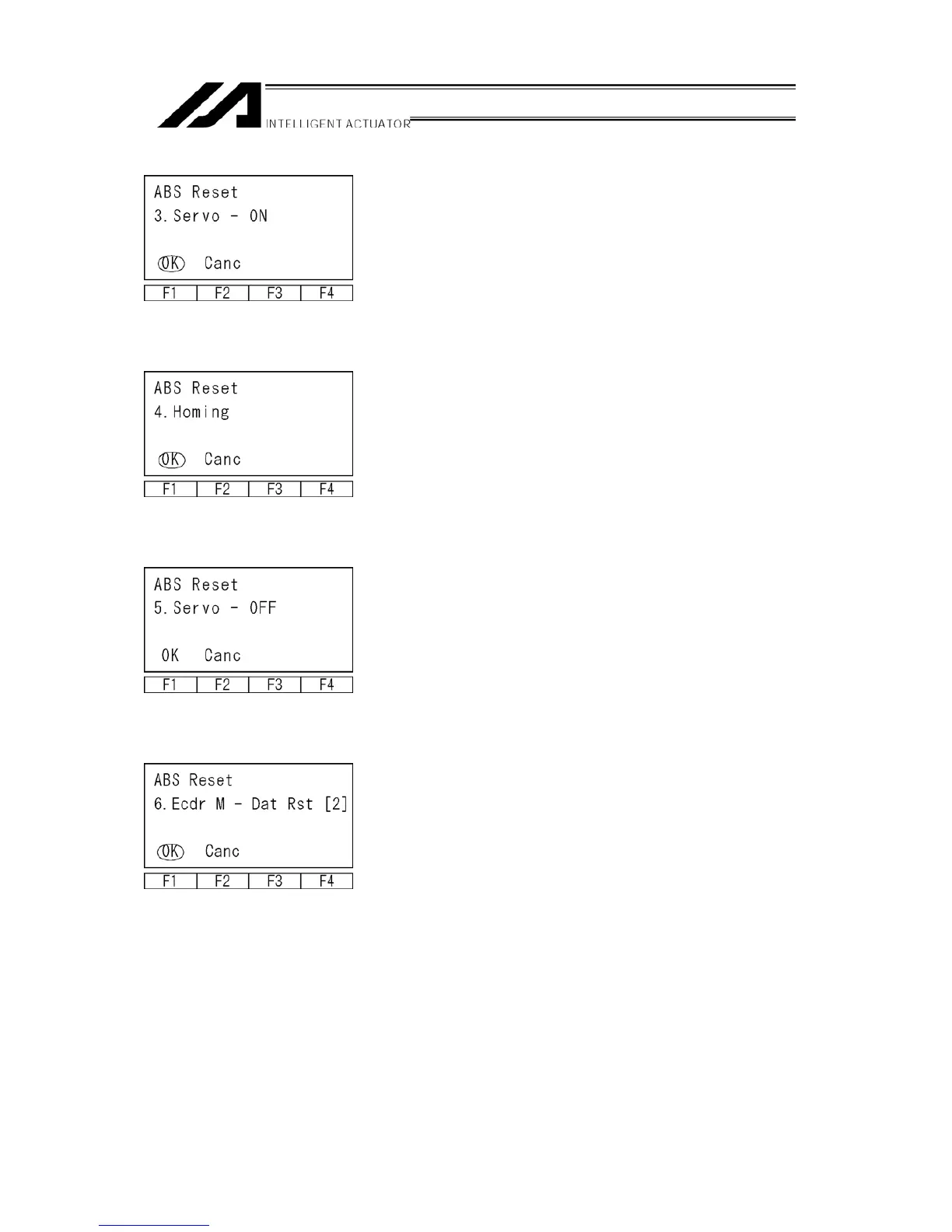

③ Servo ON
F1 (OK) key.
④ Homing
F1 (OK) key.
⑤ Servo OFF
You can execute absolute reset with the teaching
pendant application version 1.02 or later and
driver CPU ver 0.23 or later with servo ON status.
Do not press the F1 (OK) key but press the PAGE
UP key. Then move to “⑥ Encoder multi-rotation
data reset 2.”
⑥ Encoder multi-rotation data reset 2
Press the F1 (OK) key.
114
