IAI X-SEL Operating Manual

(6) Output Port

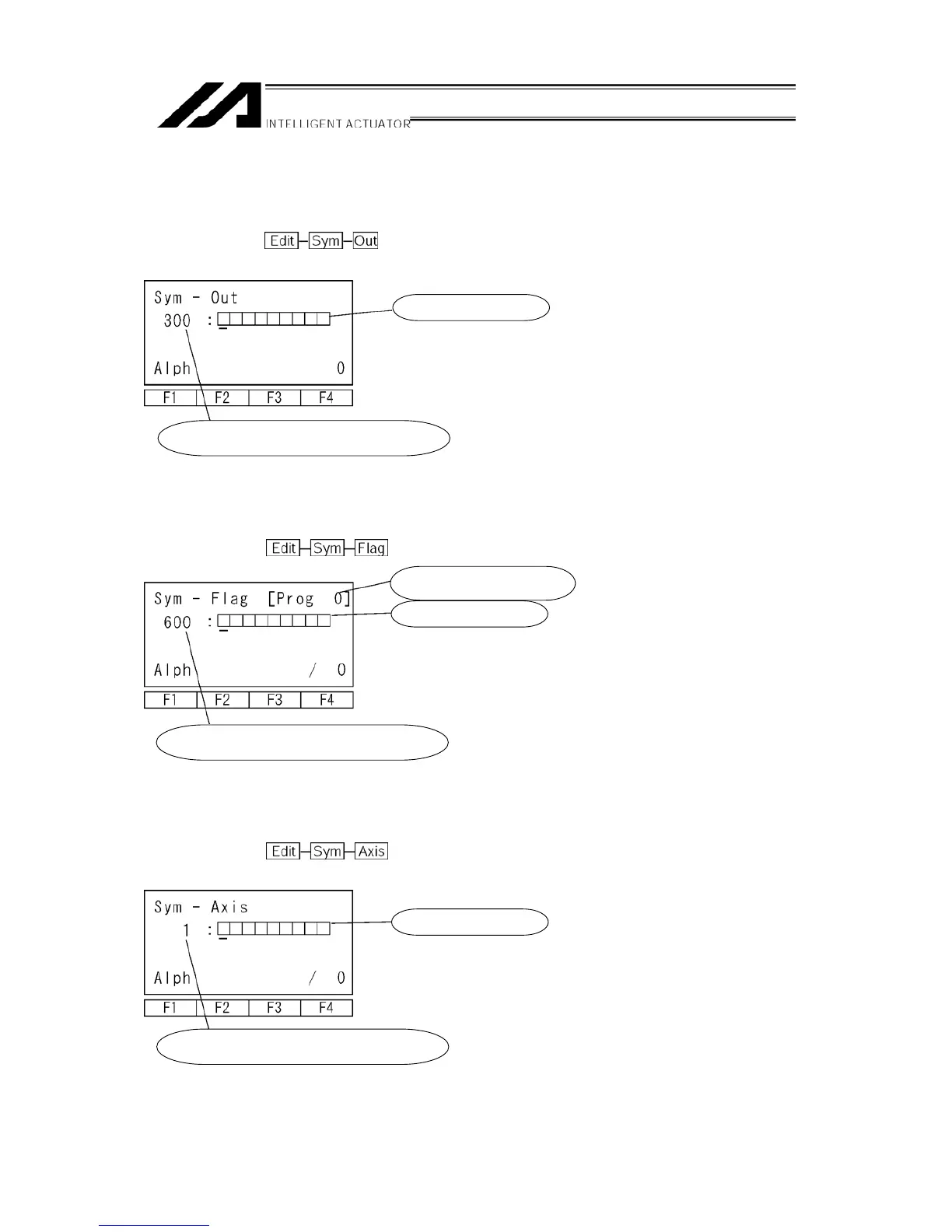

Select F2 (Out) key on the symbol edit item screen.
Mode Transition:
Output Port No. Symbol Edit Screen
Input alphabet and number.
Input output port No. by the PAGE UP · PAGE DOWN
keys or 10 keys.
(7) Flag
Select F3 (Flag) key on the symbol edit item screen.
Mode Transition:
Flag No. Symbol Edit Screen
Input program No. at local area.
In
p
ut 0 at
g
lobal area.
Input alphabet and number.
Input flag No. by the PAGE UP · PAGE DOWN keys or 10
keys.
(8) Axis
Select F4 (Axis) key on the symbol edit item screen.
Mode Transition:
Axis No. Symbol Edit Screen
Input alphabet and number.
Input axis No. by the PAGE UP · PAGE DOWN keys o
r
10 keys.
86
