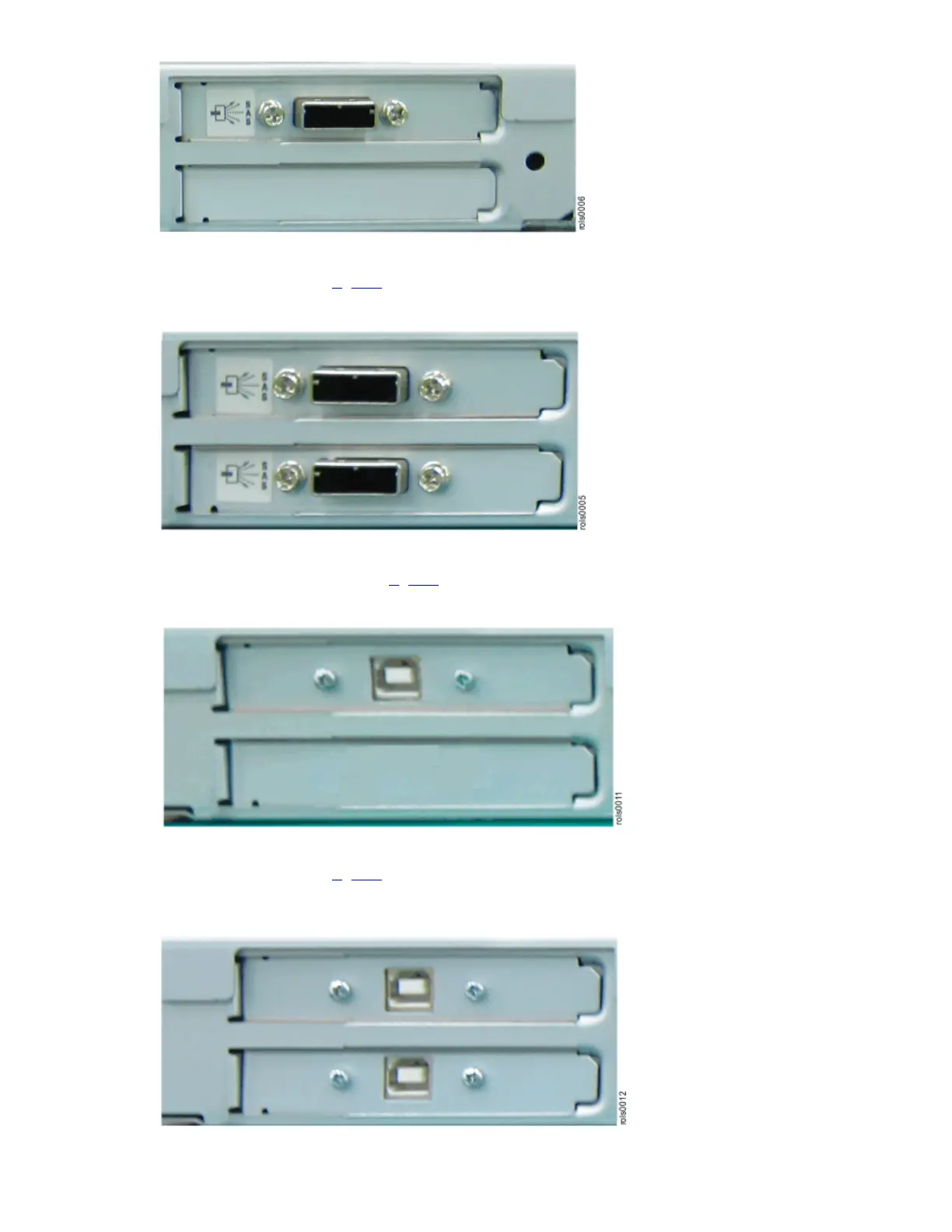

When Feature Code #1422 is selected together with Feature Code #1420, a second SAS connection port is added at the rear

of the 7226 Storage Enclosure. See Figure 2.

Figure 2. View of Feature Codes #1420 and #1422 (SAS connection ports)

When Feature Code #5762 is selected, the customer receives one USB connection port at the rear of the 7226 Storage

Enclosure for plugging in one USB cable. See Figure 3.

Figure 3. View of Feature Code #5762 (USB connection port)

When Feature Code #5762 is selected together with Feature Code #5757, a second USB connection port is added at the rear

of the 7226 Storage Enclosure. See Figure 4.

Note: This only applies to a Feature Code #5762/5757 combination, not Feature Code #5763.

Figure 4. View of Feature Codes #5762 and #5757 (USB connection ports)

IBM 7226 Model 1U3 Storage Device Enclosure 243
