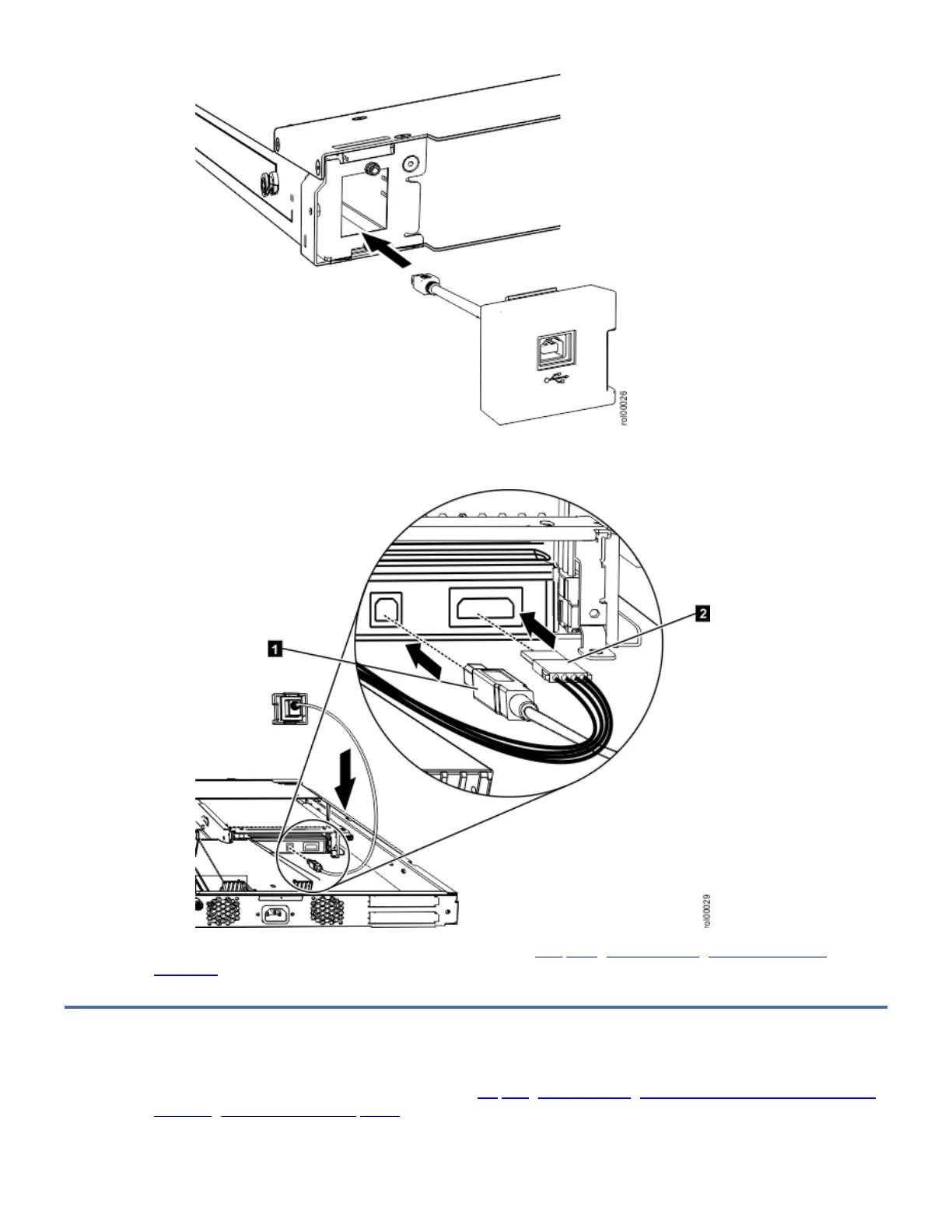

Figure 3. Insert USB Interface (Front) Assembly

8. Attach the USB Interface (Front) Assembly from the drive connector 1, and attach the power connector 2.

Figure 4. Attach USB Interface (Front) Assembly

9. Complete the 7226 Storage Enclosure Service Procedure. See Completing the 7226 Storage Enclosure Service

Procedure for the correct procedure.

Replacing a Slim Drive Tray

1. Prepare the 7226 Storage Enclosure for Service. See Preparing the 7226 Storage Enclosure for Removal or Installation

of a Storage Device or Other Component for the correct procedure.

Note: The 7226 Storage Enclosure does not need to be extended from the rack for this procedure.

2. Determine the location for the Slim Drive Tray to be replaced.

52 IBM 7226 Model 1U3 Storage Device Enclosure
