IBM PPC750FX User Manual

Evaluation Board Manual
Preliminary PPC750FX Evaluation Board
750FXebm_ch9.fm
June 10, 2003
Jumpers
Page 51 of 115
9.3 PCI Interrupt Selection
Jumper J22 configures the adapter mode PCI interrupt output from the system controller to one or more of the
four PCI interface interrupts. This a 2x4 Berg type header.

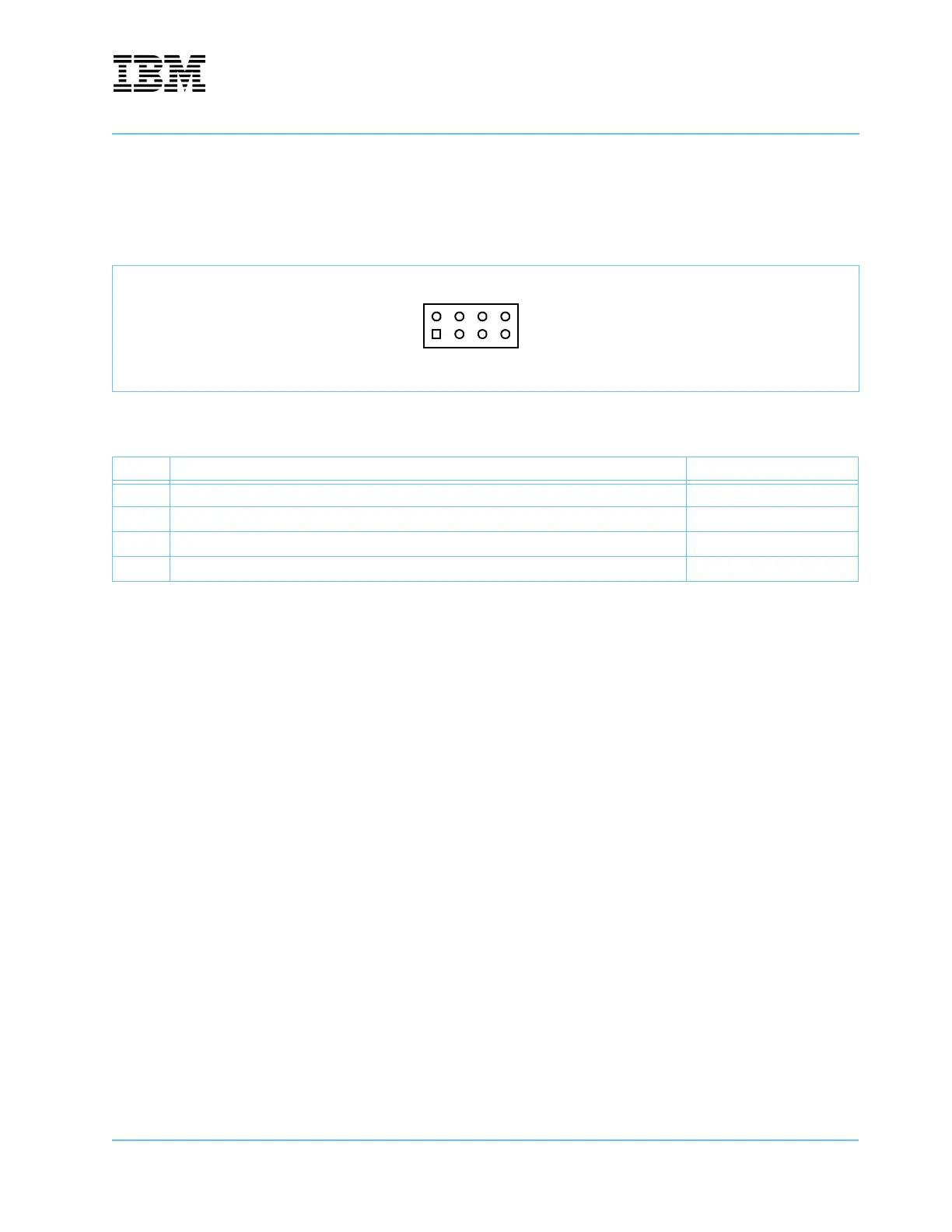

Figure 9-4. PCI Interrupt Selection Jumper—J22
Table 9-4. PCI Interrupt Selection—J22
J22 Description Factory Setting
1–8 Adapter mode interrupt to PCI interrupt A X
2–7 Adapter mode interrupt to PCI interrupt B
3–6 Adapter mode interrupt to PCI interrupt C
4–5 Adapter mode interrupt to PCI interrupt D
12 34
87 65
