Installing a USB embedded hypervisor flash device
To install a hypervisor flash device, complete the following steps:
1. Read the safety information that begins in Safety and “Installation guidelines”
on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
4. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 39).
5. Remove the air baffle (see “Removing the air baffle” on page 41).
6. Unlock the retention latch by pushing it down toward the system board.

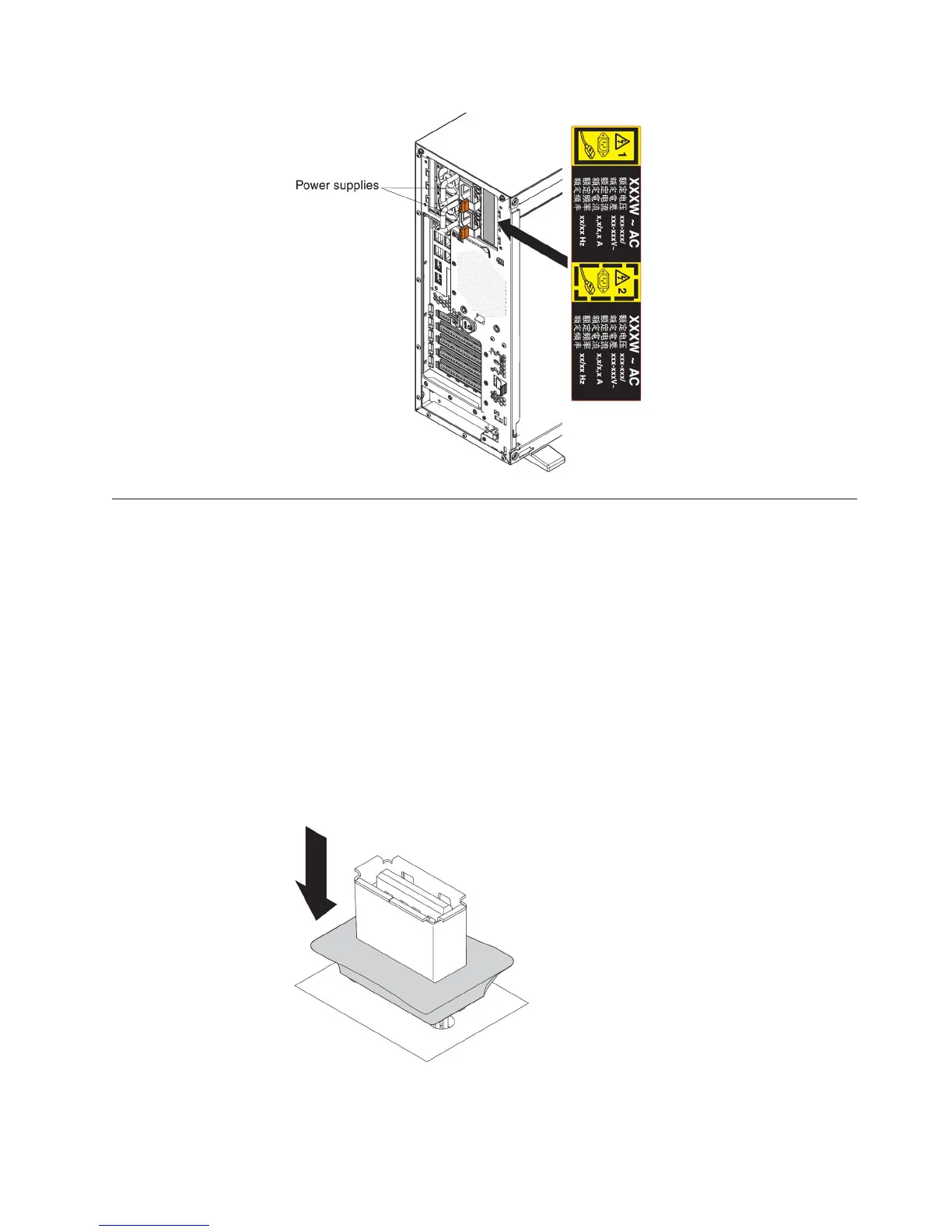

7. Align the flash device with the USB connector on the system board and push it
into the USB connector until it is firmly seated.
Chapter 2. Installing optional devices 103
