Hard Disk Drive Backplane Connectors
The following illustrations show the connectors on the 2.5-inch and 3.5-inch hard
disk drive backplanes and the backplane assembly.

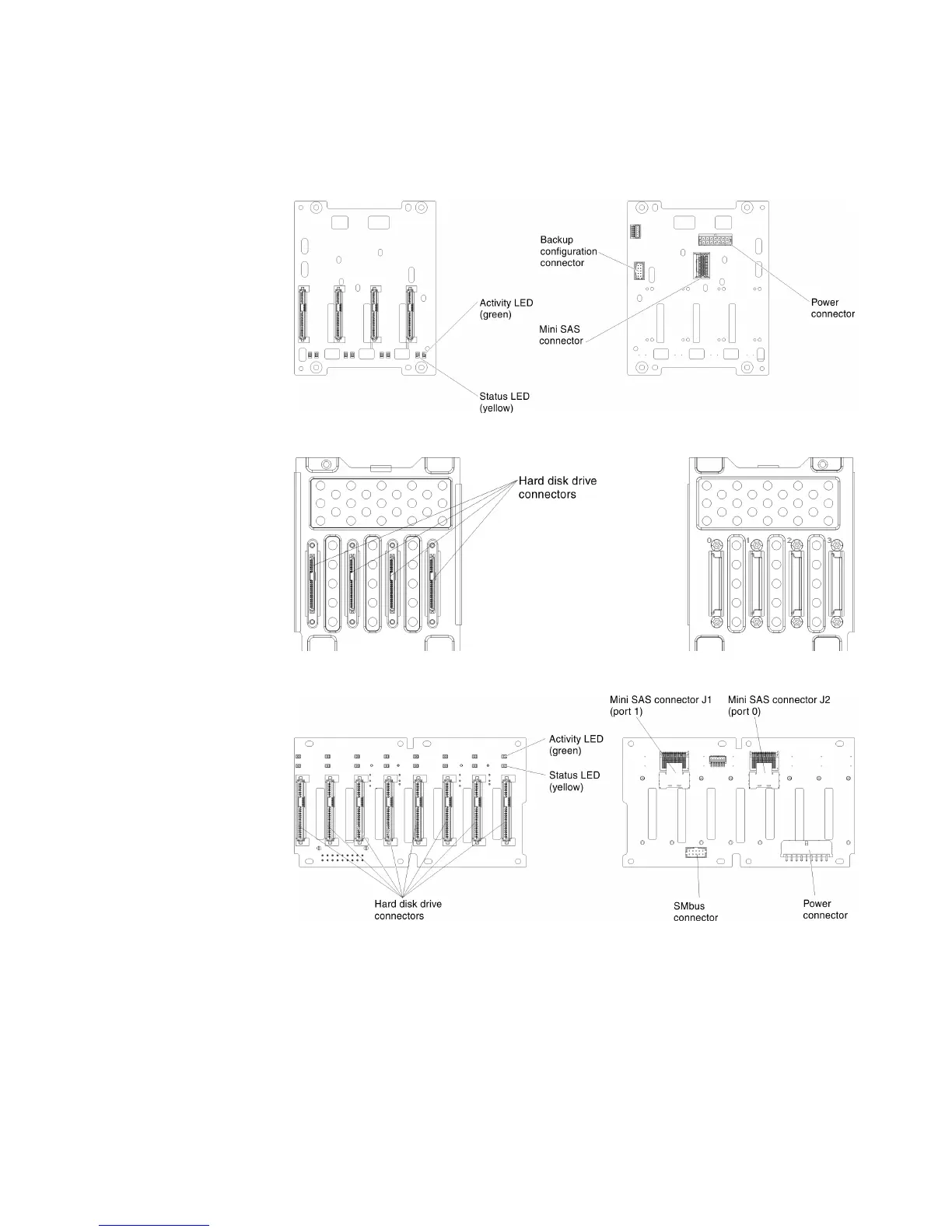

1. Connectors on the hot-swap 3.5-inch hard disk drive backplane:
2. Connectors on the simple-swap 3.5-inch hard disk drive backplane:
3. Connectors on the 2.5-inch hard disk drive backplane:
4. Connectors on the 2.5-inch hard disk drive backplane with the expander:
Chapter 2. Installing optional devices 35
