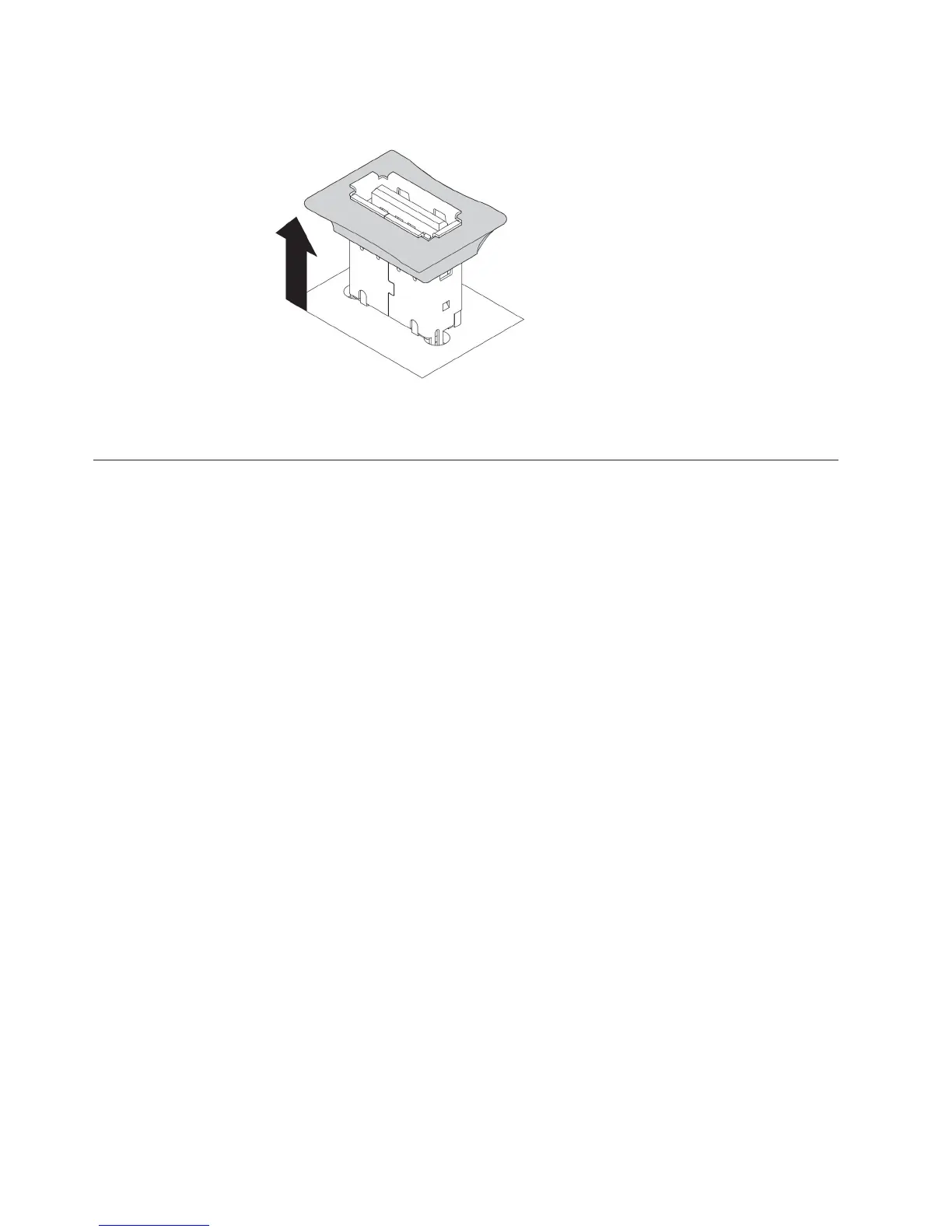

8. Return the retention latch to the locked position by pulling it away from the
system board.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation.”
Completing the installation
To complete the installation, complete the following steps:
1. If you removed the fan assembly, reinstall it (see “Installing the fan assembly”
on page 105
2. If you removed the air baffle, reinstall it (see “Replacing the air baffle” on page
336).
3. If you removed the left sidecover, replace it (see “Installing the left-side cover”
on page 108).
4. Reconnect the cables and power cords (see “Connecting the cables” on page
108).
5. Update the server configuration (see “Updating the server configuration” on
page 109).
6. Install the server in the rack cabinet (see the Tower to Rack Installation
Instructions that is included in the separately ordered rack package) if necessary.
7. Slide the server back into the rack, if necessary.
8. Start the server. Confirm that is starts correctly and recognizes the newly
installed devices, and make sure that no error LEDs are lit.
9. Complete the additional steps in “Instructions for IBM Business Partners” on
page 28.
104 System x3300 M4 Type 7382: Installation and Service Guide
