Installing an optional ServeRAID adapter memory module
To install an optional ServeRAID adapter memory module, complete the following
steps:
1. Read the safety information that begins in Safety and “Installation guidelines”
on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices.
3. Disconnect all external cables and power cords.
4. Carefully turn the server on its side so that it is lying flat, with the cover
facing up.
Attention: Do not allow the server to fall over.
5. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 39)
6. Locate the ServeRAID adapter which you will install the memory module.
Remove the ServeRAID adapter if necessary.
7. Touch the static-protective package that contains the adapter to any unpainted
metal surface on the server; then, remove the adapter from the package.

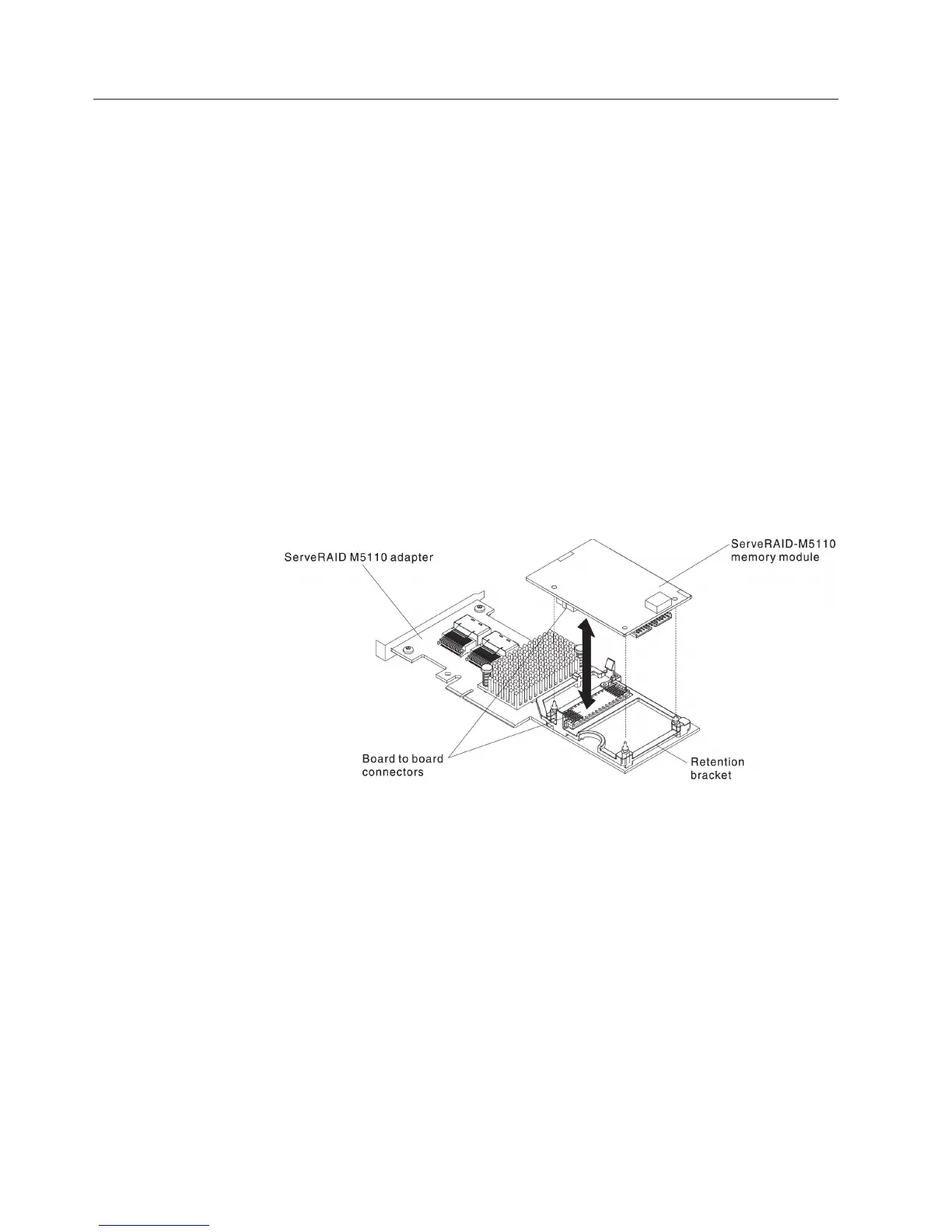

8. Align the memory module with the connector on the ServeRAID adapter and
push it into the connector until it is firmly seated.
9. Reinstall the ServeRAID adapter (see “Installing an adapter” on page 79)
10. Install and lock the left-side cover (see “Installing the left-side cover” on page
108)
11. Reconnect the external cables and power cords; then, turn on the attached
devices and turn on the server.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 104.
86 System x3300 M4 Type 7382: Installation and Service Guide
