Removing the bezel
To remove the bezel, complete the following steps:
1. Read the safety information that begins in “Safety” on page vii and
“Installation guidelines” on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.

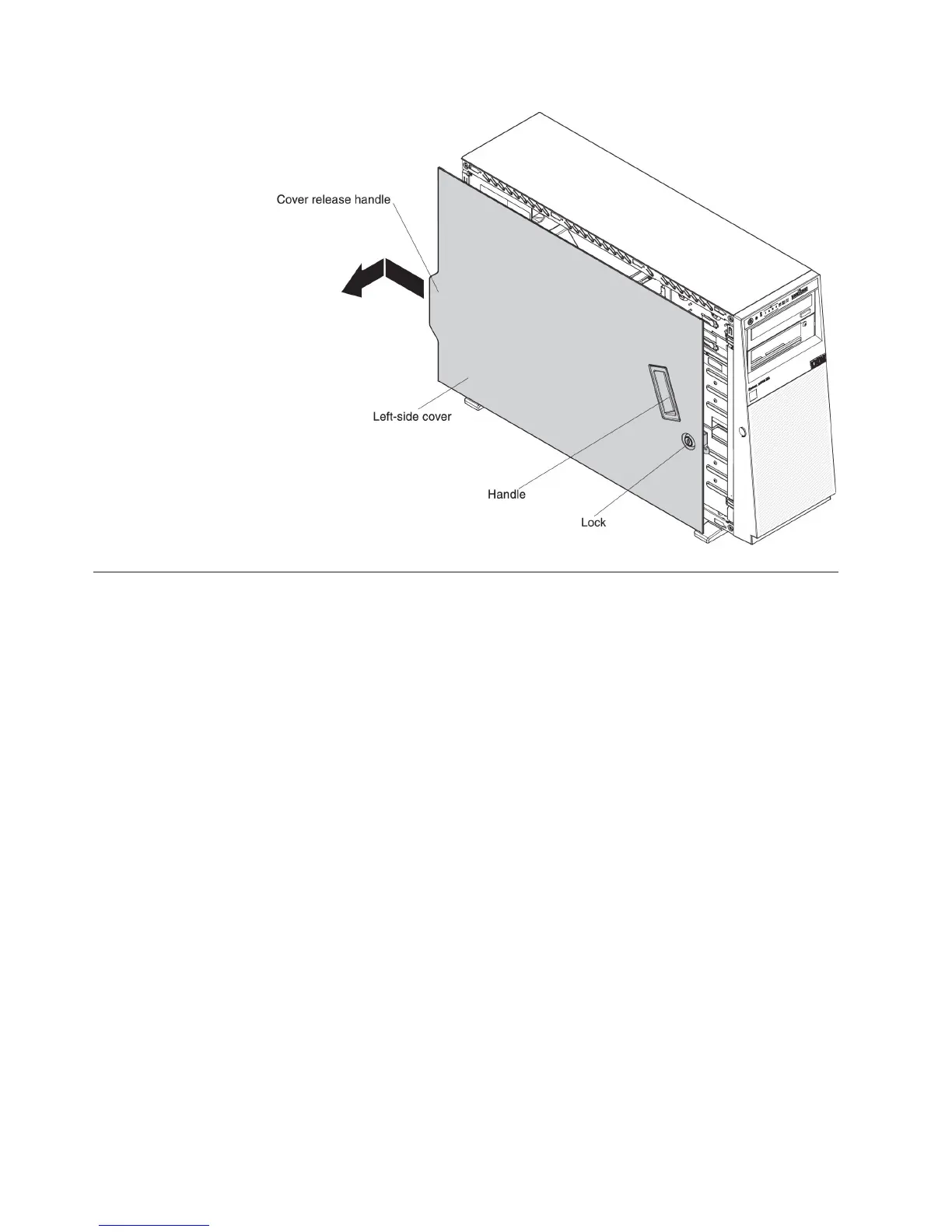

3. Unlock the left-side cover, using the key that comes with the server.
Note: You must unlock the left-side cover to open or remove the bezel. When
you lock the left-side cover, it locks both the cover and the bezel.
4. Open the bezel from the release point on the left edge of the bezel, and remove
the bezel away from the server.
40 System x3300 M4 Type 7382: Installation and Service Guide
