Installing the left-side cover
To install the server cover, complete the following steps:
1. Read the safety information that begins in Safety and “Installation guidelines”
on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Slide the left-side cover over the server until the left-side cover edges slip into
position over the chassis.
Important: Before you slide the left-side cover forward, make sure that all the
tabs on the cover engage the chassis correctly. If all the tabs do not engage the
chassis correctly, it will be hard to remove the cover later.
4. Lock the left-side cover, using the key that comes with the server.
Connecting the cables

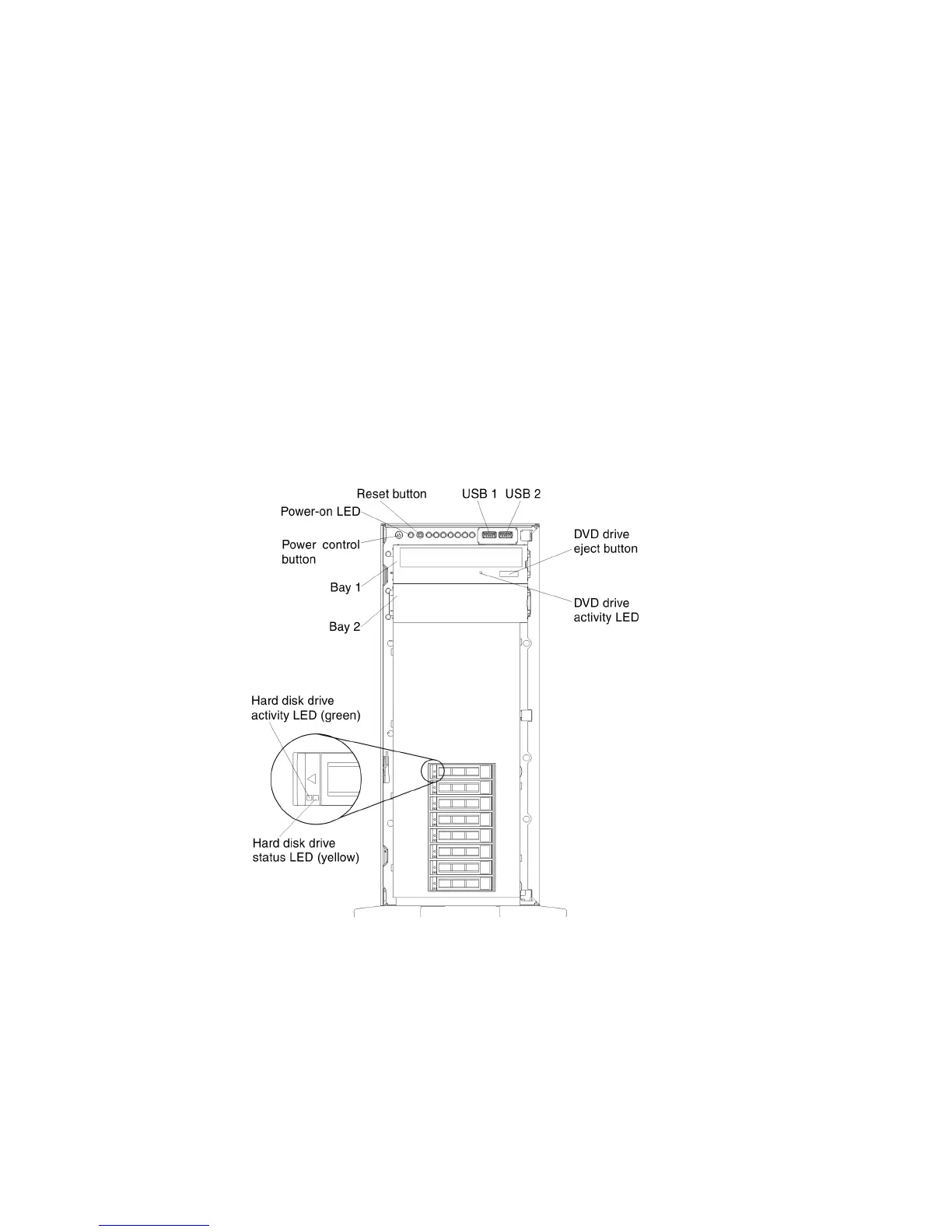

The following illustration shows the locations of the input and output connectors
on the front of the server.
The following illustration shows the locations of the input and output connectors
on the rear of the server.
108 System x3300 M4 Type 7382: Installation and Service Guide
