Note: The positioning of the remote battery depends on the type of the
remote batteries that you install.

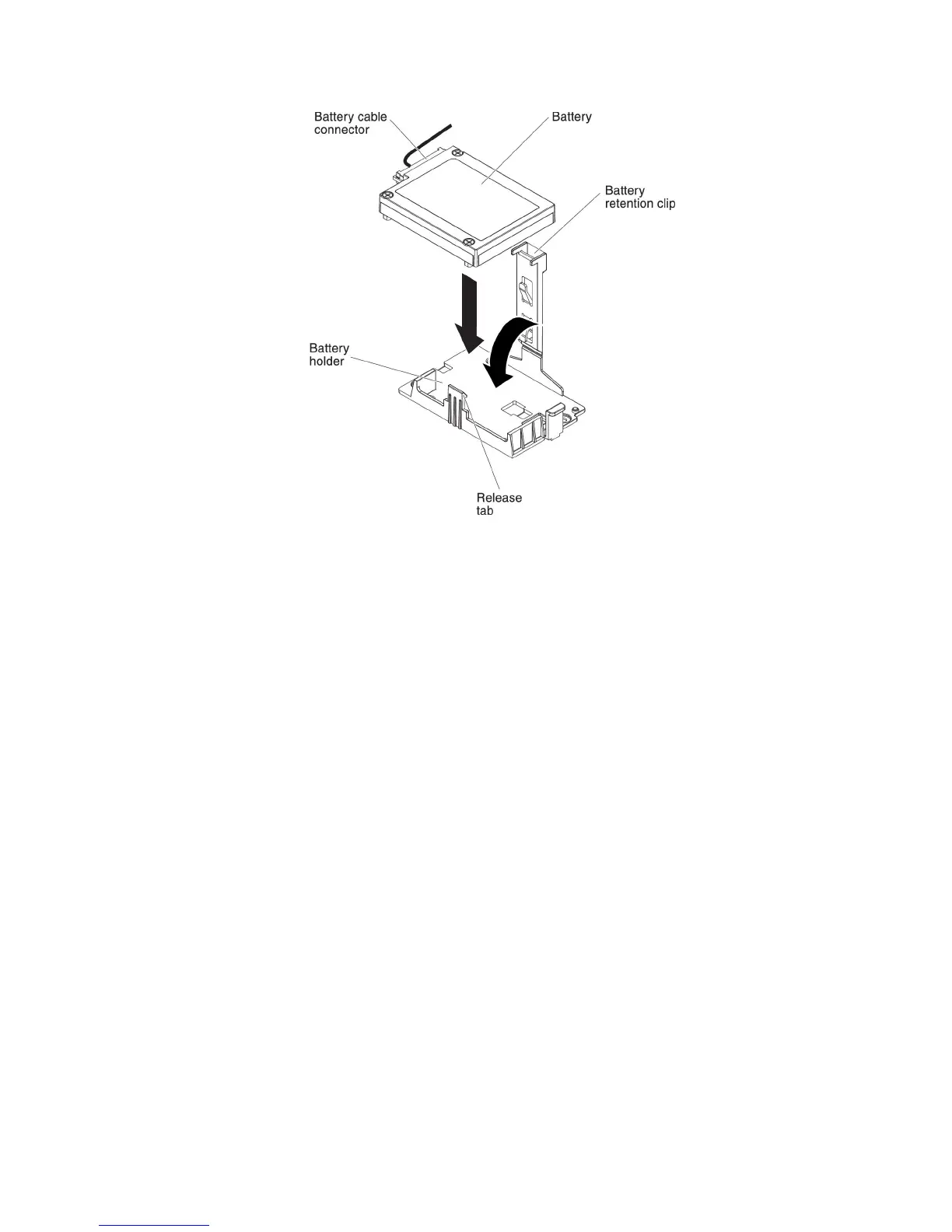

b. Connect the other end of the battery cable to the battery cable connector
on the battery.
c. Lower and press down on the retention clip until it snaps in place to hold
the battery firmly in place.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 104.
Removing an optional ServeRAID adapter memory module
To remove an optional ServeRAID adapter memory module, complete the
following steps:
1. Read the safety information that begins in Safety and “Installation guidelines”
on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices.
3. Disconnect all power cords; then, disconnect all external cables from the server.
4. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
5. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 39)
6. See the documentation that comes with the adapter for any cabling instructions
and information about jumper or switch settings. (It might be easier for you to
route cables before you install the adapter.)
7. Remove the adapter (see “Removing an adapter” on page 358)
8. Grasp the memory module and lift to remove it from the connector on the
ServeRAID adapter.
370 System x3300 M4 Type 7382: Installation and Service Guide
