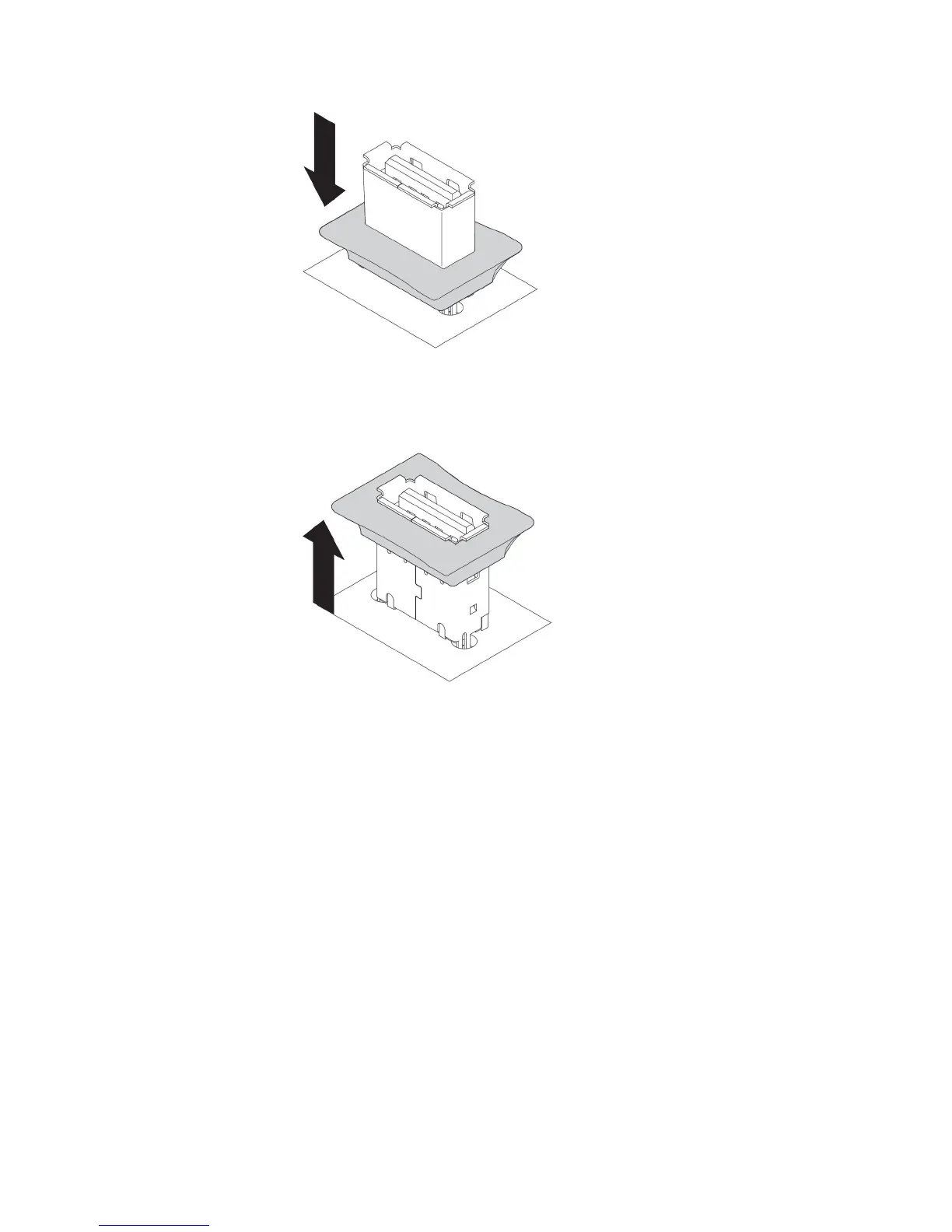

9. Align the flash device with the USB connector on the system board and push
it into the USB connector until it is firmly seated.
10. Return the retention latch to the locked position by pulling it away from the
system board.
11. Reconnect the power cord and any cables that you removed.
12. Reinstall the left-side cover (see “Installing the left-side cover” on page 108)
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 104.
Removing the fan assembly
To remove the fan assembly, complete the following steps:
1. Read the safety information that begins in “Safety” on page vii and
“Installation guidelines” on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Carefully turn the server on its side so that it is lying flat, with the cover facing
up.
Attention: Do not allow the server to fall over.
4. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 39).
5. Remove the air baffle (see “Removing the air baffle” on page 41
6. Disconnect the fan power cable from the system board. (see “Fan Power Cable
Connection” on page 61)“Internal Cable Routing and Connectors” on page 47
Chapter 6. Removing and replacing components 411
