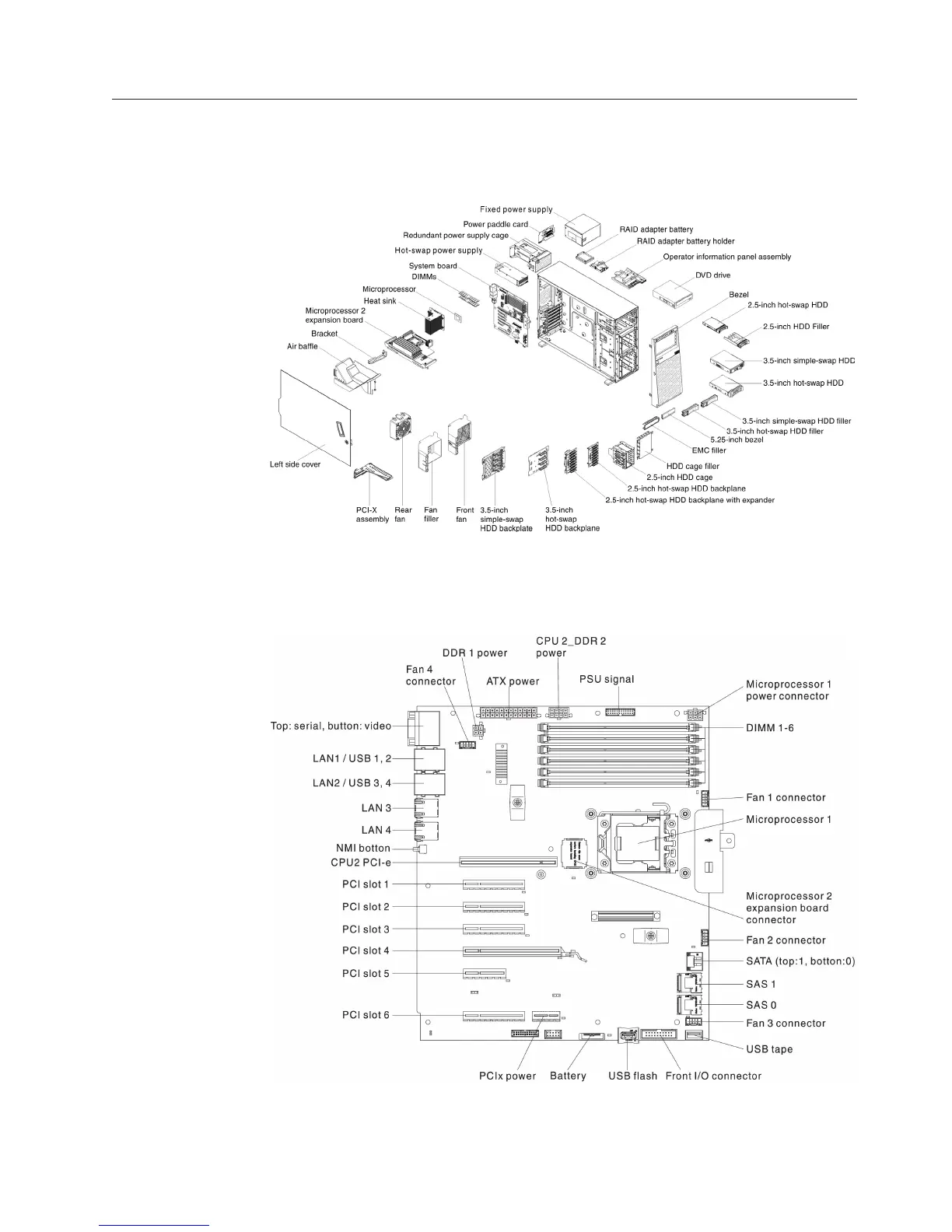

Server components
The following illustration shows the major components in the server. The
illustrations in this document might differ slightly from your hardware.
System-board internal connectors
The following illustration shows the internal connectors on the system board.
The following illustration shows the internal connectors on the microprocessor 2
expansion board.
Chapter 2. Installing optional devices 29
