Replacing the air baffle
Note: When you install the second microprocessor, you must also install fan 2 and
the air baffle that come with the second microprocessor upgrade kit.
To replace the air baffle, complete the following steps:
1. Read the safety information that begins in Safety and “Installation guidelines”
on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables as necessary to replace the device.
3. Remove the left-side cover (see “Removing the left-side cover” on page 39).
4. Remove the existing air baffle (see “Removing the air baffle” on page 41).
5. Touch the static-protective package that contains the air baffle; then, remove the
air baffle from the package.

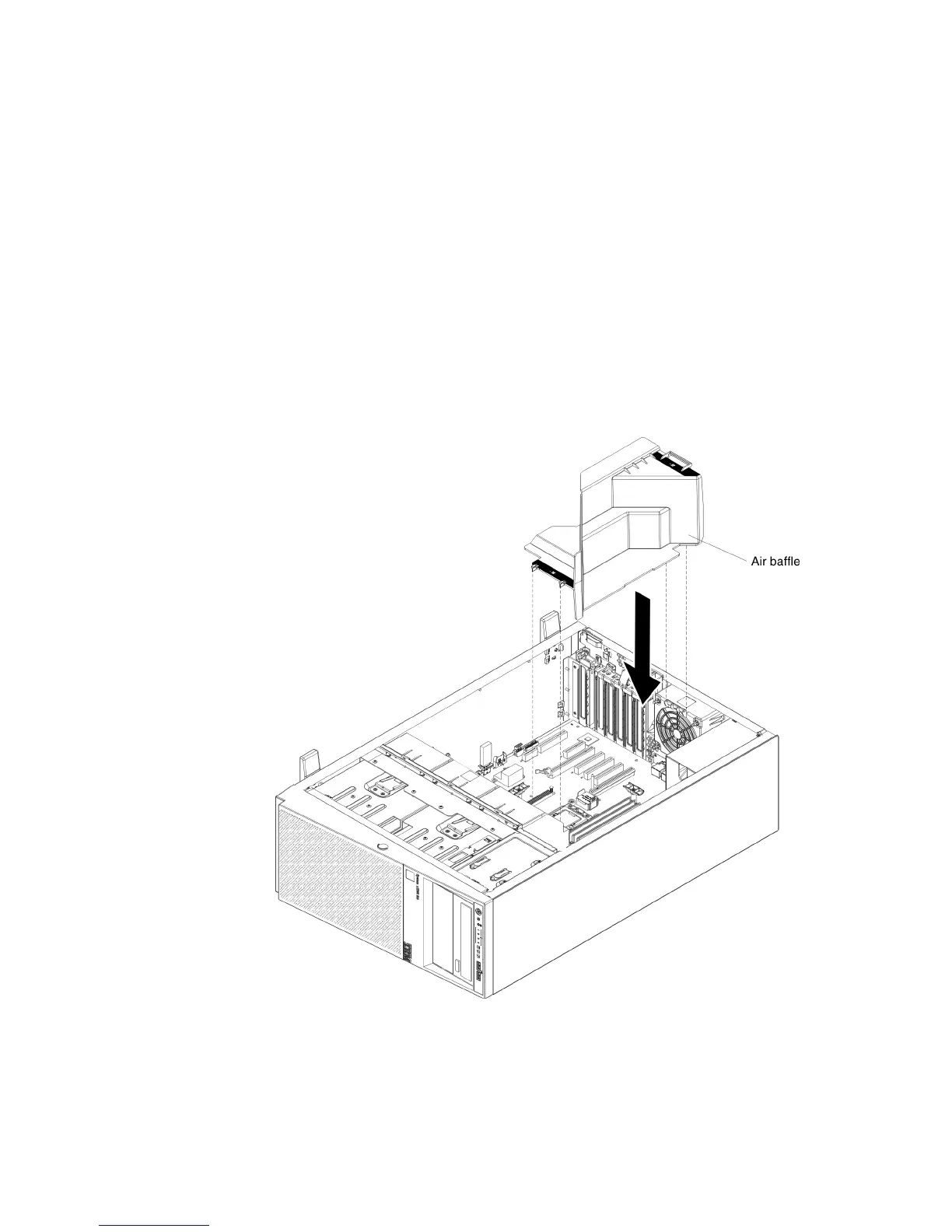

6. Slide the air baffle down into the server until the tabs fit into the locating holes.
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 104.
336 System x3300 M4 Type 7382: Installation and Service Guide
