LED Description Action
System locator (blue) Use this LED to visually locate the server
among other servers. You can use IBM
Systems Director or IMM to light this LED
remotely.
Check log (yellow) An error has occurred and cannot be
isolated without performing certain
procedures.
1. Check the IMM system event log and
the system-error log for information
about the error.
2. Save the log if necessary and clear the
log afterwards.
System-error (yellow) An error has occurred.
1. Check the light path diagnostics LEDs
and follow the instructions.
2. Check the IMM system event log and
the system-error log for information
about the error.
3. Save the log if necessary and clear the
log afterwards.
Rear view

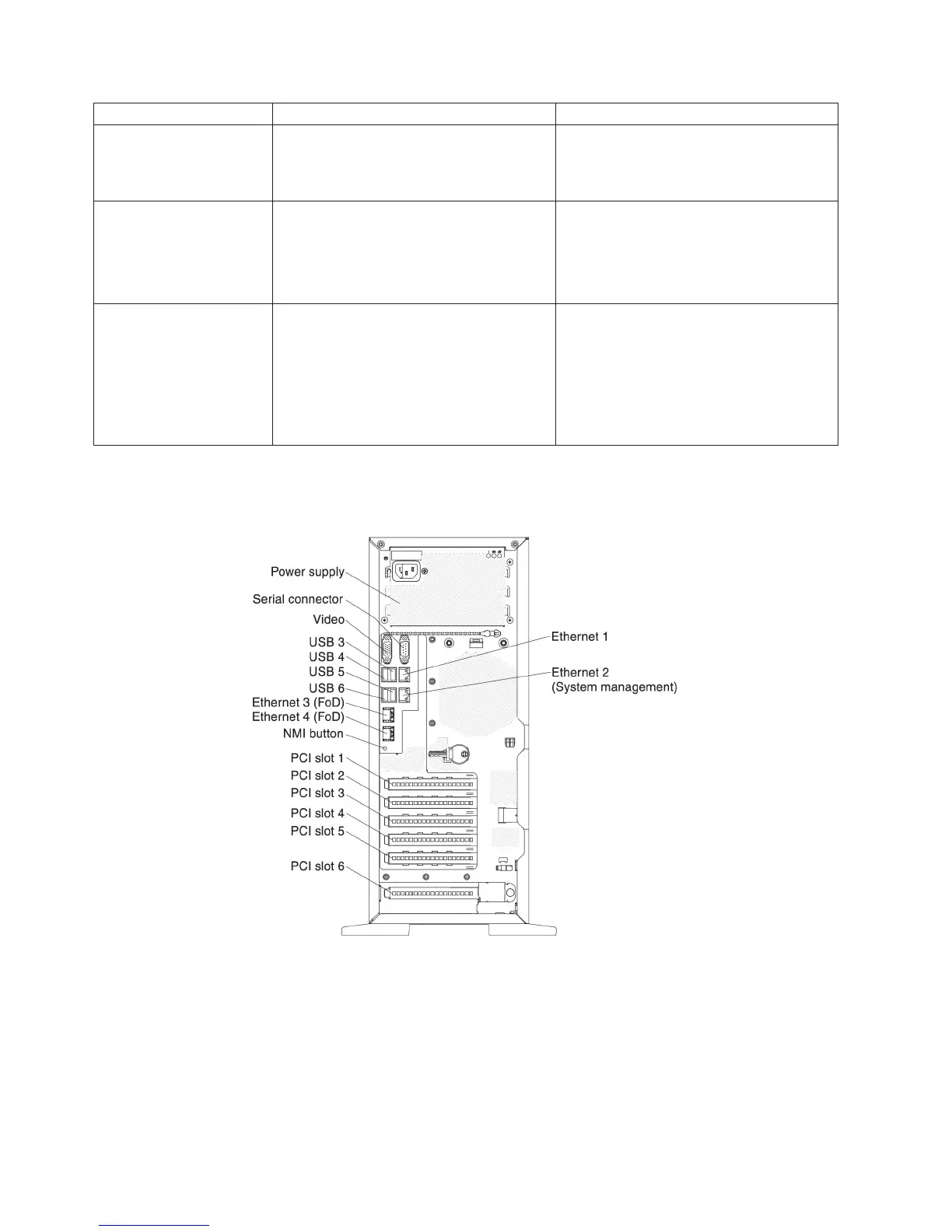

The following illustrations show the connectors on the rear of the server.
v NMI button: Press this button to force a nonmaskable interrupt to the
microprocessor. It allows you to blue screen the server and take a memory
dump (use this button only when directed by the IBM service support). You
might have to use a pen or the end of a straightened paper clip to press the
button.
v PCI-e slot 1: Insert a half-length, full-height PCI Express adapter or a PCI-X
interposer card into this slot. See “Installing an adapter” on page 79 for the
supported adapters for these riser-cards.
Note: It only functional when the microprocessor 2 installed.
18 System x3300 M4 Type 7382: Installation and Service Guide
