Operator Information Panel Cable Connection

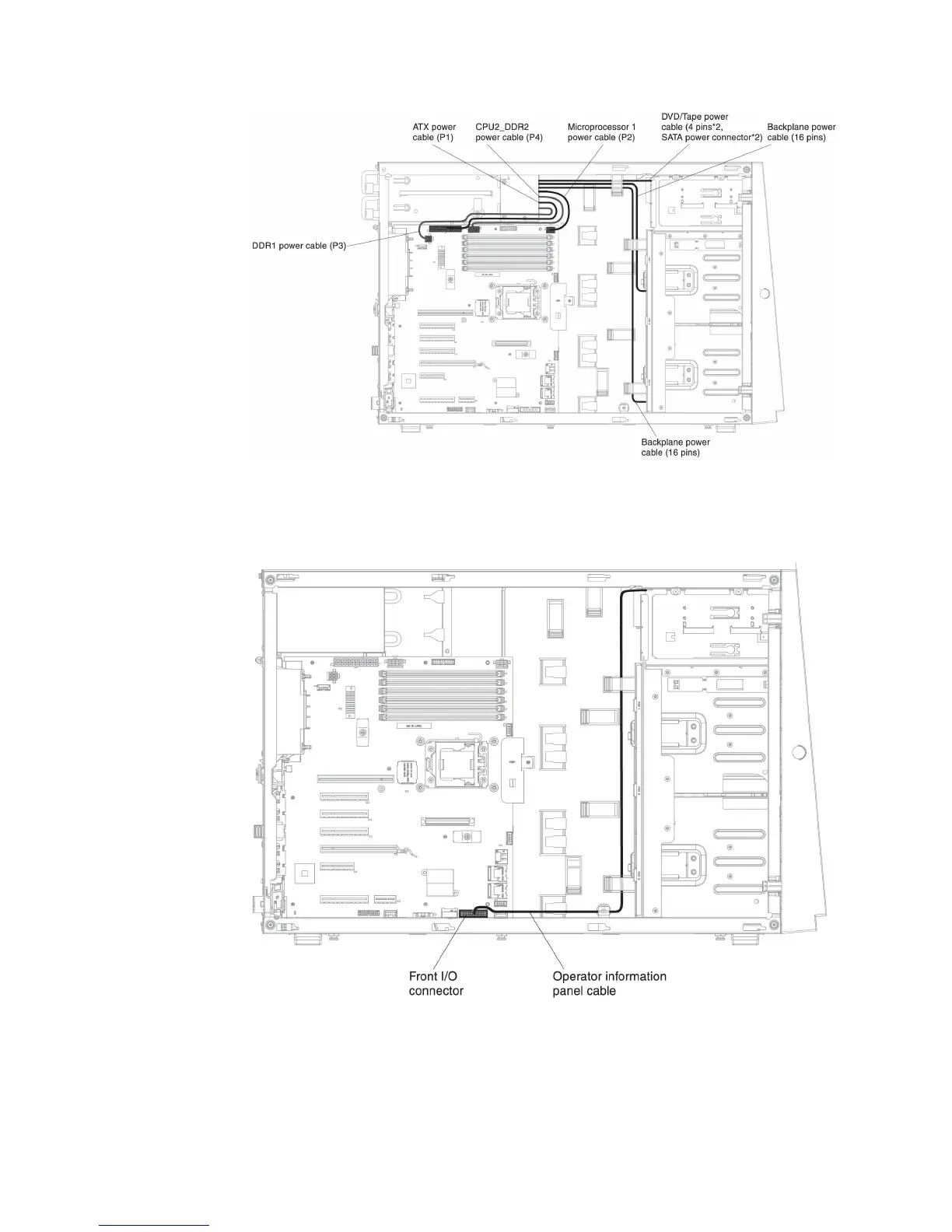

The following illustration shows the internal cable routing and connectors from the
operator information panel to the system board.
48 System x3300 M4 Type 7382: Installation and Service Guide
