7. Grasp the flash device and pull to remove it from the connector.
8. Return the retention latch to the locked position by pulling it away from the
system board.
9. If you are instructed to return the flash device, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Replacing a USB embedded hypervisor flash device
To replace a hypervisor flash device, complete the following steps:
1. Read the safety information that begins in Safety and “Installation guidelines”
on page 36.
2. Turn off the server (see “Turning off the server” on page 24) and all attached
peripheral devices. Disconnect all power cords; then, disconnect all external
cables from the server.
3. Carefully turn the server on its side so that it is lying flat, with the cover
facing up.
Attention: Do not allow the server to fall over.
4. Unlock and remove the left-side cover (see “Removing the left-side cover” on
page 39).
5. Remove the fan assembly if necessary (see “Removing the fan assembly” on
page 42)
6. Remove the air baffle if necessary (see “Removing the air baffle” on page 41).
7. Remove the existing flash device from the USB hypervisor connector (see
“Removing a USB embedded hypervisor flash device” on page 409).

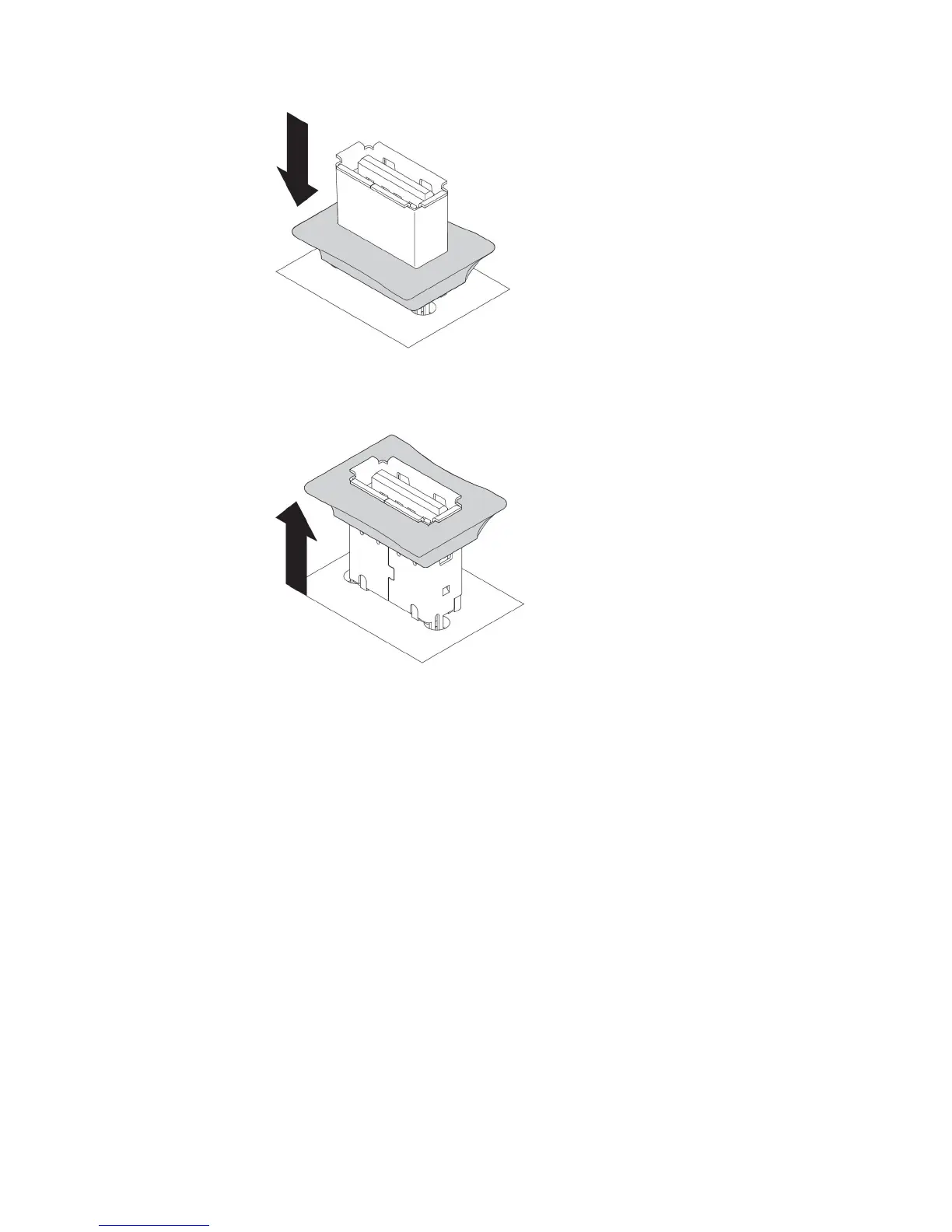

8. Unlock the retention latch by pushing it down toward the system board.
410 System x3300 M4 Type 7382: Installation and Service Guide
