Note:
v If you have installed the optional ServeRAID adapter memory module,
remove it and keep it in future use (see “Installing an optional ServeRAID
adapter memory module” on page 86

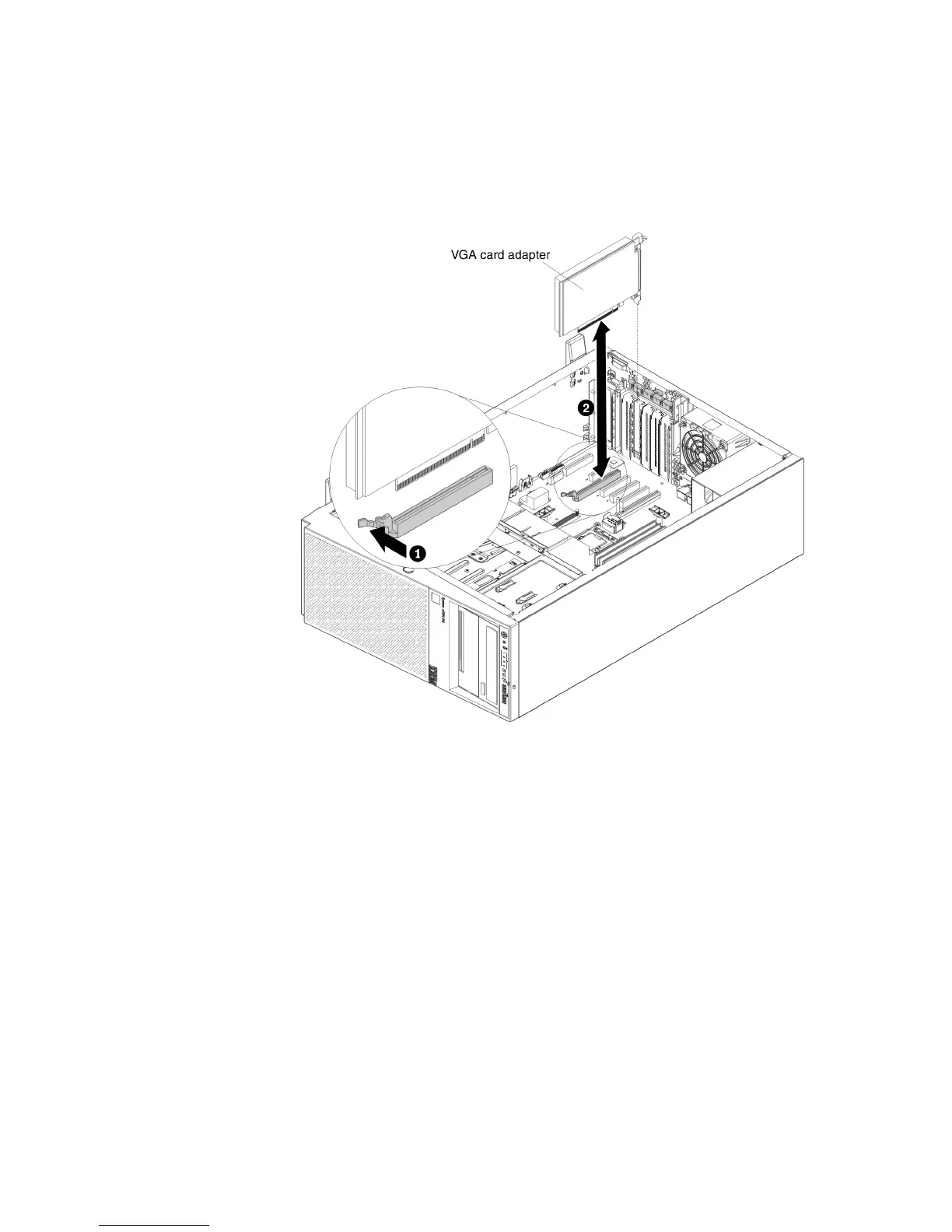

v If you are installing or removing an adaptor into or from PCI slot 4, you
have to press the release latch firstly as step 1 of the following illustration.
10. Install the PCI slot filler.
11. Move the adapter-retention brackets back to the close position.
12. If you are instructed to return the adapter, follow all packaging instructions,
and use any packaging materials for shipping that are supplied to you.
360 System x3300 M4 Type 7382: Installation and Service Guide
