8. Locate PCI slot 1 which you will install the PCI-X riser-card assembly. Remove
the exiting PCI-X riser-card assembly if necessary (see “Removing a PCI-X
riser-card assembly” on page 372

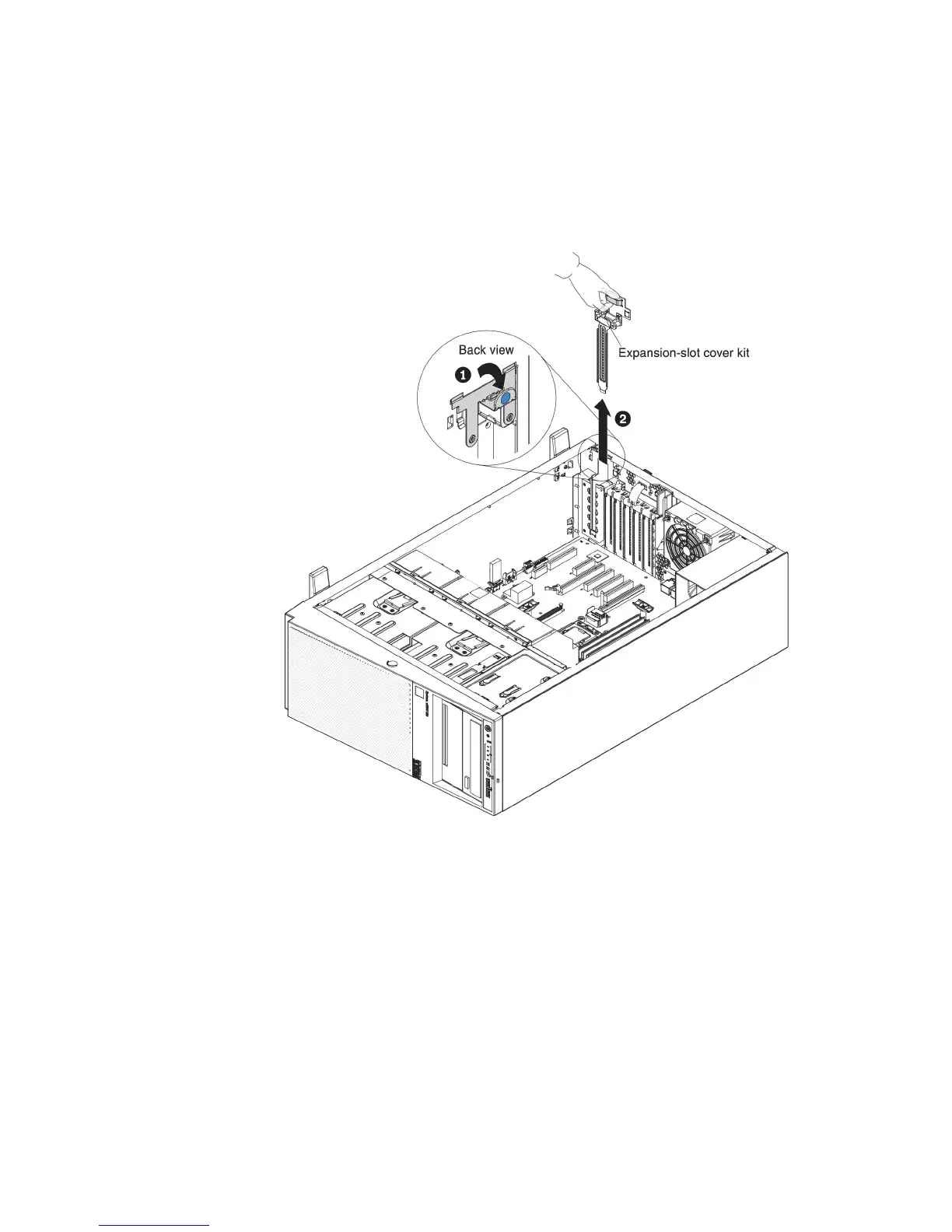

9. Press the latch of the expansion-slot cover kit from the rear side of the server
(see step 1 in the following illustration).
10. Remove the expansion-slot cover kit located in PCI slot 1 and save it for
future use. (see step 2 in the following illustration).
11. Press PCI-X riser-card assembly firmly into PCI slot 1
Attention: Incomplete insertion might cause damage to the system board or
the adapter.
12. Make sure the latch on the rear side of the PCI-X riser-card assembly is
secured to the rear of the server chassis.
374 System x3300 M4 Type 7382: Installation and Service Guide
