5. Touch the static-protective package that contains the disk drive to any
unpainted metal surface on the server; then, remove the disk drive from the
package.

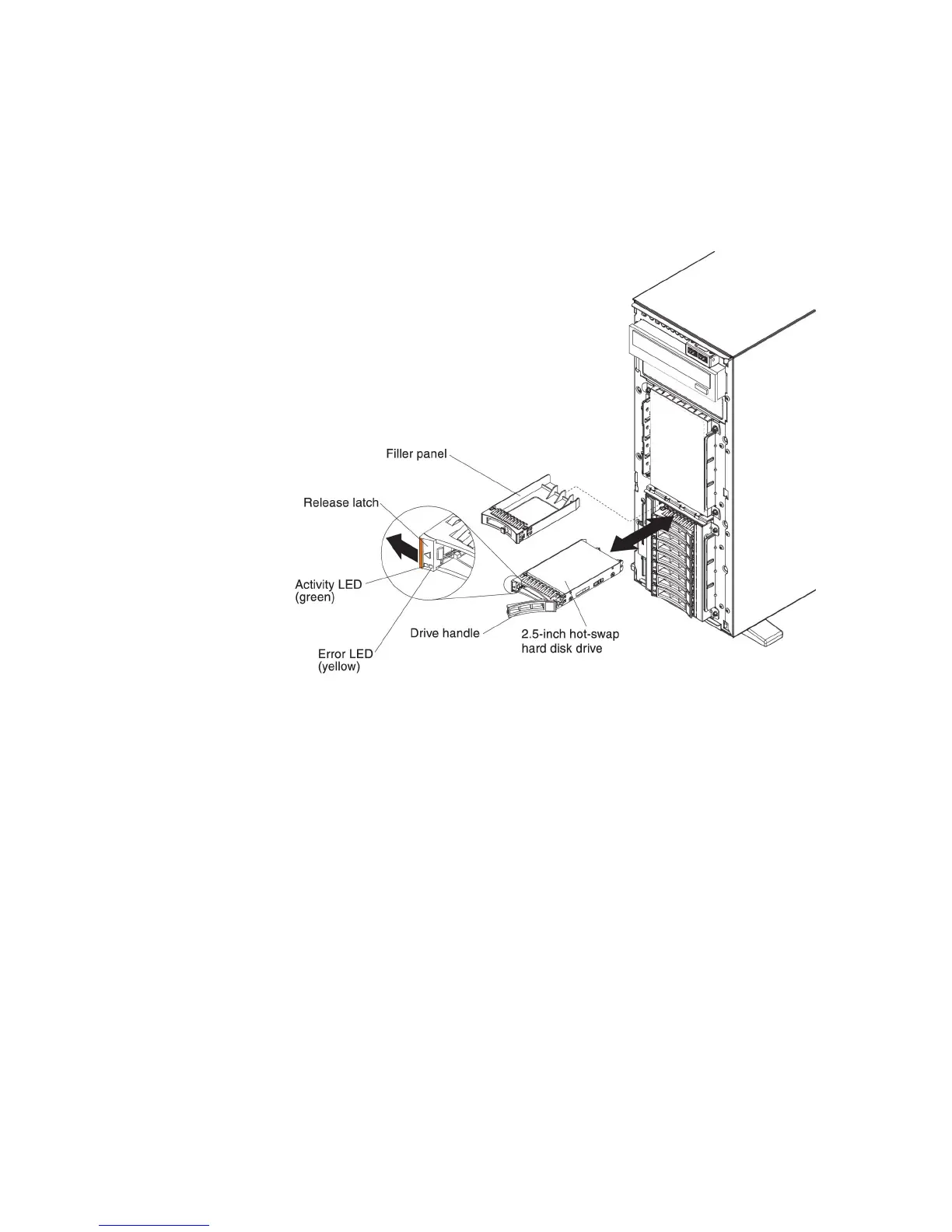

6. Make sure that the tray handle is open; then, install the hard disk drive into the
hot-swap bay.
7. Rotate the drive handle down until the drive is seated in the hot-swap bay and
the release latch clicks into place.
Note:
a. After you install the hard disk drive, check the disk drive status LEDs to
verify that the hard disk drive is operating correctly.
If the yellow hard disk drive status LED is lit continuously, that drive is
faulty and must be replaced. If the green hard disk drive activity LED is
flashing, the drive is being accessed.
b. If the server is configured for RAID operation through an optional
ServeRAID adapter, you might have to re-configure your disk arrays after
you install hard disk drives. See the ServeRAID documentation on the IBM
ServeRAID Support CD for additional information about RAID operation
and complete instructions for using ServeRAID Manager
8. Close the bezel.
9. Lock the left-side cover.
Chapter 2. Installing optional devices 71
