Installing the Diskette Drive
4

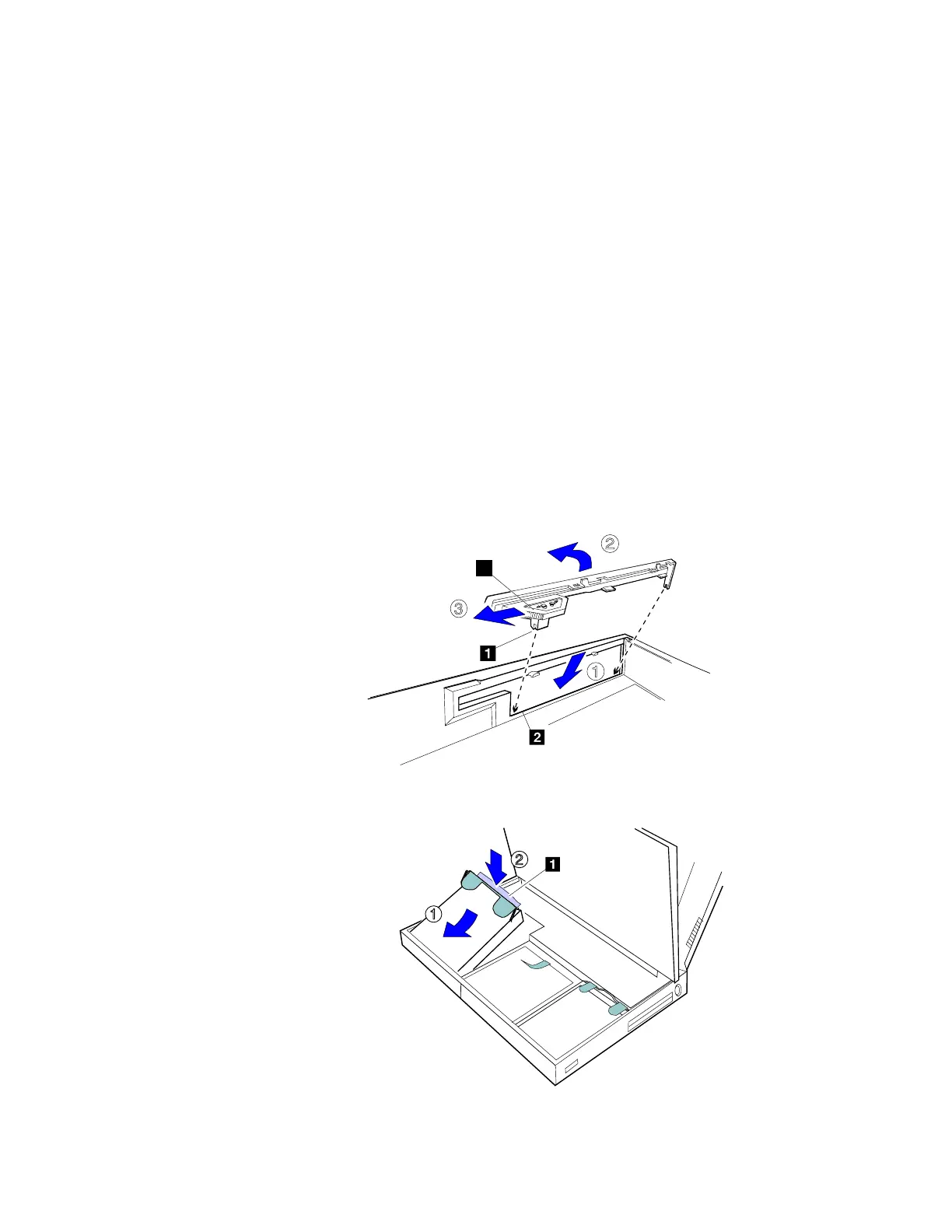

Install the diskette drive bezel on the
inside
of the computer.
a) Fit notch 1 on the lower portion of the bezel into the
catch at the bottom of the drive bezel slot 2 .
b) Push the upper portion of the bezel into the slot until it
snaps into place.
c) Slide the lever 3 on the bezel to the left as shown.
The following figure shows the installation as seen from the
inside of the computer.
1
2
3
3
Attention:
The diskette drive is a very delicate
device. Do not press on the middle
part of the drive.
5
Install the diskette drive. Press area 1 until the drive snaps
into the connector.
2
1
6
Close the keyboard; then reconnect all cables.
Chapter 6. Installing and Removing Options 137
